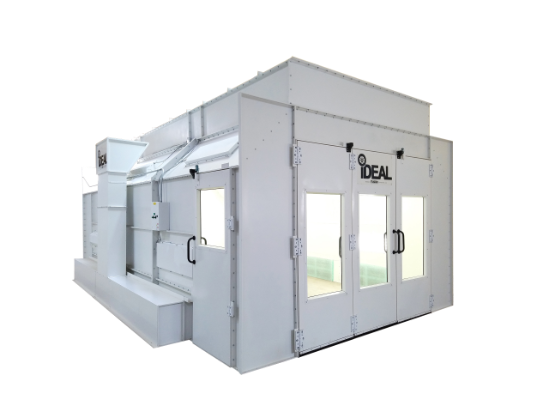

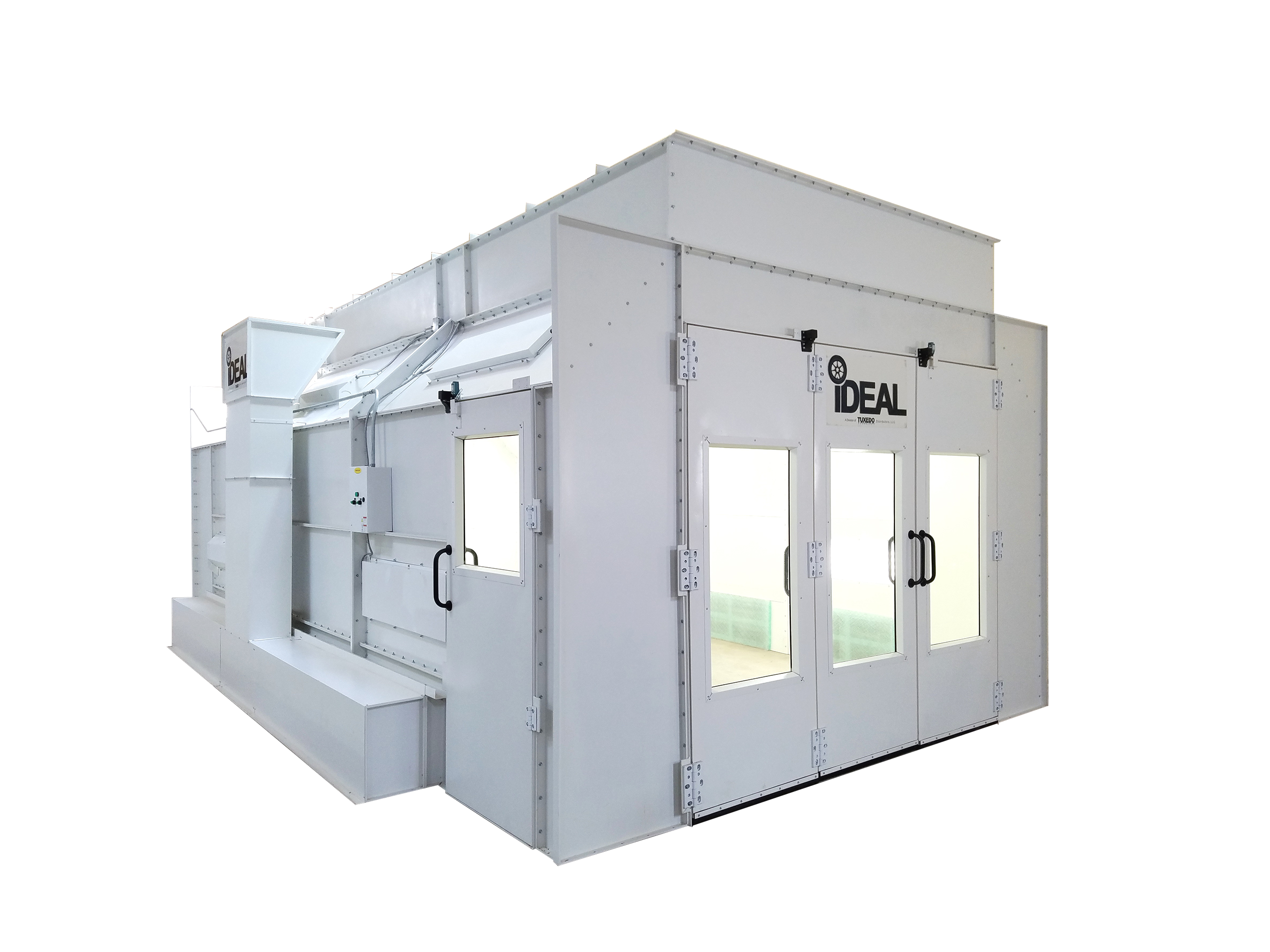

Side Downdraft Paint Booth 26'L x 14'W x 9'H

Item #: psb-sdd26b-3ph-230v-ak

There are no reviews yet Write a review

Price: $27,500.00

Electric Option:

Update price

Quantity:

About This Item

The iDEAL Commercial Semi-Downdraft Paint Spray Booth is designed to provide consistent airflow, superior lighting, and a controlled finishing environment for automotive, industrial, and woodworking applications. Its semi-downdraft airflow design draws filtered air through ceiling-mounted intake filters and directs it downward toward the rear exhaust chamber before being discharged through the exhaust system, helping maintain a cleaner work environment and improving finish quality.

Constructed from heavy-duty 18-gauge precision-punched steel panels, the booth features a bright white powder-coated finish on both interior and exterior surfaces to maximize light reflectivity and visibility. The commercial-grade hip-panel design enhances lighting distribution throughout the booth, while premium filtration and dual tube-axial exhaust fans support efficient airflow and overspray removal.

Specifications:

Inside Dimensions: 26' L x 14' W x 9'3" H
Airflow: 14,000 CFM @ 0.5 Static Pressure
Panel Construction: Heavy-Duty Precision-Punched 18-Gauge Steel
Exhaust Fans: (2) UL-Listed Dayton 24" Tube-Axial Fans with Spark-Resistant Blades
Motors: NEMA-Rated 3 HP, 3-Phase, 230V/460VAC, 60 Hz
Finish: Bright White Powder Coating (Interior and Exterior)
Assembly: Bolt-and-Nut Construction
Compliance: Meets NFPA 33 Standards

Included Features:

Deluxe Control Panel
Premium HFC Intake and Exhaust Filters
Manometer, Solenoid Valve, Hardware, and Sealant
Tri-Fold Entry Doors with Viewing Windows and Shutoff Switch
Personnel Door with Viewing Window and Shutoff Switch
(10) LDPI Industrial T8 Vertical Light Fixtures
(40) GE T8 Fluorescent Lamps, 32W, 5000K, 4' Length
Commercial-Grade Hip-Panel Design
Typically Ships Within 24 Hours

Upgrade Options

LED Lighting:

https://www.creativecoatingsol...

Side Personnel Door:

https://www.creativecoatingsol...

Trifold Rear Door Kit:

https://www.creativecoatingsol...

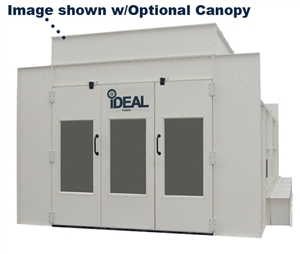

Canopy Plenum Kit (required for Heated/Gas Fired Booth):

https://www.creativecoatingsol...

Stand Alone Paint Mixing Room:

https://www.creativecoatingsol...

Heater/Makeup Unit:

https://www.creativecoatingsol...

;

Description

iDEAL Paint Spray Booths are designed to be in accordance with NFPA 33, available in Side & Semi Downdraft and Cross Flow models. iDEAL Paint Booths include Commercial Grade ‘hip panel’ booth designs with Precision Punched 18 Gauge Panels and standard with Dayton Tube-Axial Fans, 5/16” Nut & Bolt Assembly, White Powder-Coat Finish ‘inside & out’, Deluxe Control Panel and ALL Electrical Components, Filters, Bulbs and Large Entry Doors with Viewing Windows. Always in Stock, Available to Ship within 24 Hours!

Specifications

Specifications

Inside Dimensions: 26'L x 14'W x 9'-3"H
Outside Dimensions: 26'-4" L x 17'-8"W x 9'-5"H
(2ct) fans: Tube-Axial, Non-Spark, NEMA Rated
Motor: 2HP - 3 Phase - 230V/460VAC - 60HZ
DFM: 14,000 @ .5 Static Pressure
Lighting: (10ct) T-8 Light Fixtures, 4 Bulbs Each
(40ct) Light Bulbs Included

Filters, Fluorescent Lights, Fan Included

Deluxe Control Panel Included

Duct Work Not Included (sold as an option), Side Downdraft Paint Booths Require(2ct) 25"Exhause Duct Kits (One On Each Side)

Optional Plenum Kit Required If Using Optional Gas Heater

Additional Information

Equipment is shipped Via LTL carrier of a 48' Semi Truck, Things to be noted as your making your purchase:

the customer is responsible for unloading the truck as the driver will not unload this for you.
Lift gate can not facilitate these items so it will not be available.
The customer is responsible for providing a forklift or means of removing your items or skids from the truck.
If there are issues with facilitating a lift or skid steer we can have this delivered to the nearest terminal at your request and you can pick up at the terminal with a trailer.
You are responsible for contacting the the freight company to set up a delivery schedule as we do not know your hours or schedule. We can provide the freight companies contact information if requested.
We are not responsible for additional freight charges for re-delivery if the customer is not available when the truck arrives

When your item ships allow for 3-14 days of shipping time depending on your location.

Other Resources

iDEAL PSB-SDD26B-AK Side Downdraft Paint Booth Brochure (.pdf)

iDEAL PSB-SDD26B-AK Side Downdraft Paint Booth Manual (.pdf)

iDEAL PSB-SDD26B-AK Side Downdraft Paint Booth Assembly (.pdf)

iDEAL PSB-SDD26B-AK Side Downdraft Paint Booth Parts (.pdf)

iDEAL PSB Paint Spray Booth Owners Form (.pdf)

iDEAL PSB Paint Spray Booth AMU Heater Form (.pdf)

iDEAL Side Downdraft Paint Booth Accessories Brochure (.pdf)
