Gas Paint Booth Heater / Air Makeup Unit (3-Phase)

The RS-1001 10 HP Gas Paint Booth Heater / Air Makeup Unit is a professional-grade heating solution designed for paint spray booth applications. It provides 13,000 BTU direct-fired heat using either natural gas or propane and can be installed in vertical or side discharge configurations.

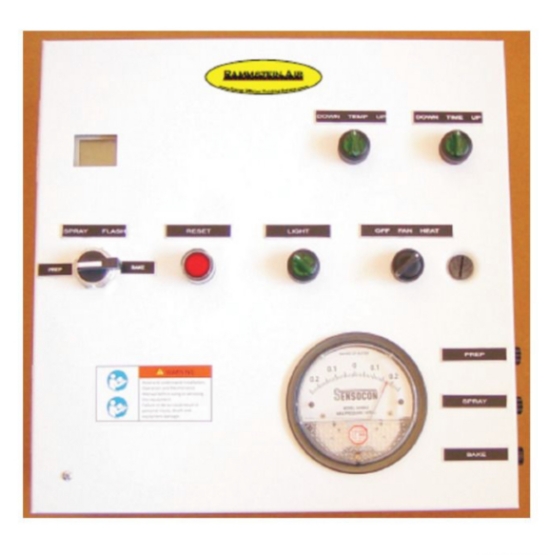

The unit features a Rammstein Air ETL-listed deluxe control panel with Variflow™ Technology, providing adjustable airflow control and easy system monitoring. Standard equipment includes a vertical stand, filter box, and filters, making it ready for integration with compatible paint booth systems.

Designed for reliable operation, the RS-1001 includes an exhaust VFD, interlock status indicator lights, durable white powder-coated construction, and a single-point connection for simplified installation.

Features:

• Easy-to-operate professional-grade paint booth heater
• Operates on natural gas or propane
• ETL-listed deluxe control panel
• Hour meter and status message display
• Cycle time and elapsed time monitoring
• Variable Variflow™ Technology
• Exhaust VFD fused and wired

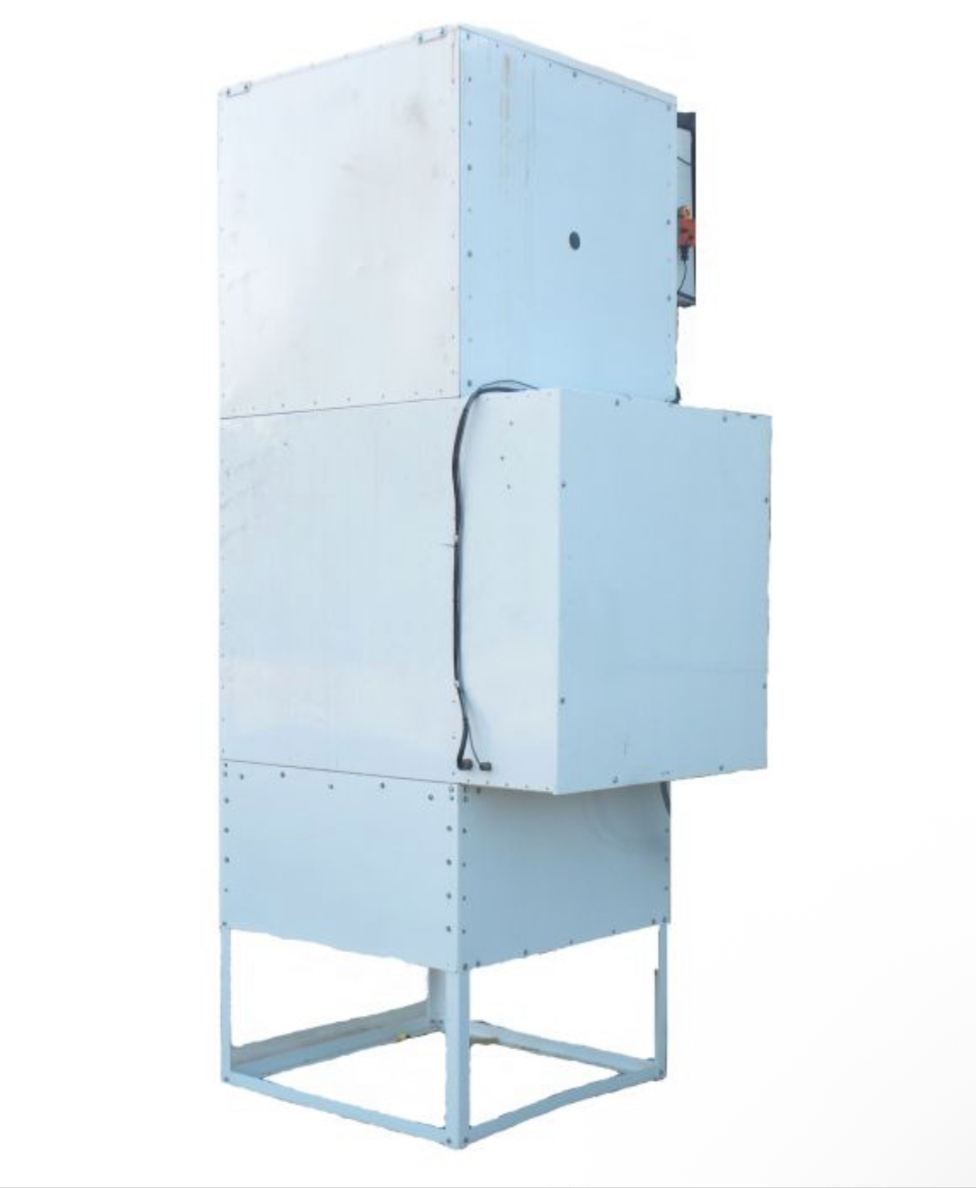

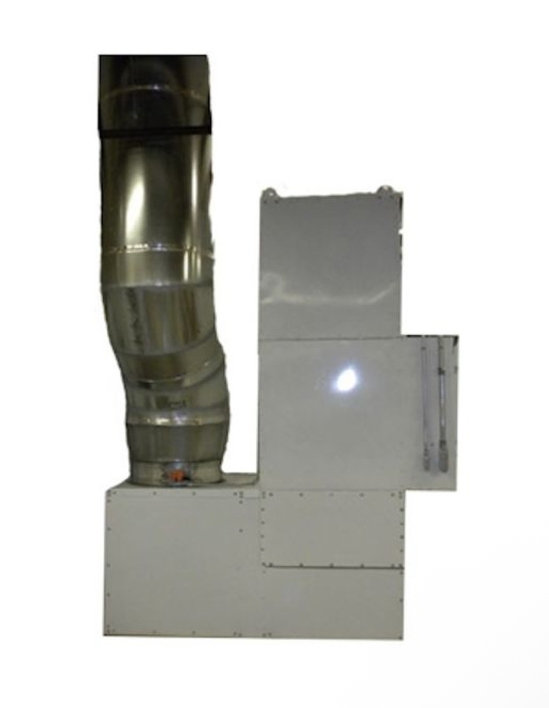

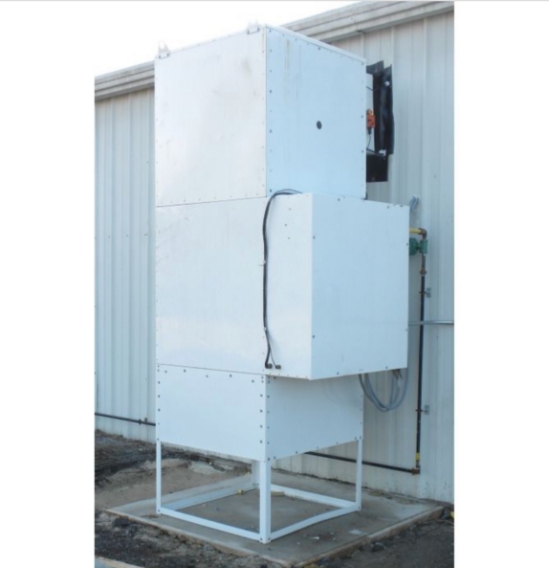

• Vertical or side discharge configuration
• White powder-coated interior and exterior finish
• Vertical stand, filter box, and filters included
• Interlock status indicator lights
• 30' umbilical cord
• Single-point connection
• Standard 3-phase electrical with optional single-phase configuration

Specifications:

• Fuel: Natural Gas or Propane
• Maximum Output: 1.2M BTUH
• Gas Train: 1-1/2"
• Airflow: 13,000 CFM
• Intake Motor: 10 HP, 230V, 3-Phase
• Exhaust VFD: 5 HP, 230V, 3-Phase
• Maximum Temperature Rise: 100°F
• Maximum Discharge Temperature: 160°F
• Minimum Operating Temperature: 10°F
• Shipping Weight: 1,395 lbs
• Shipping Dimensions: 90" L x 65" W x 54" H

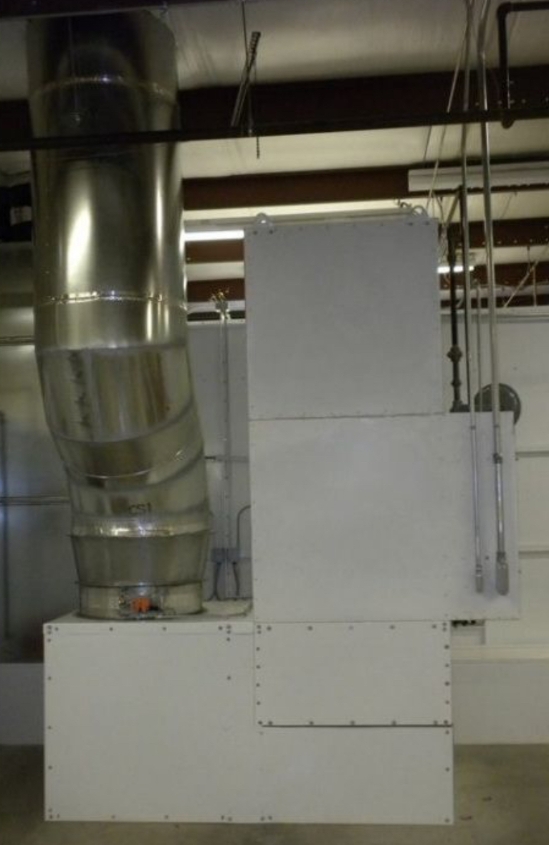

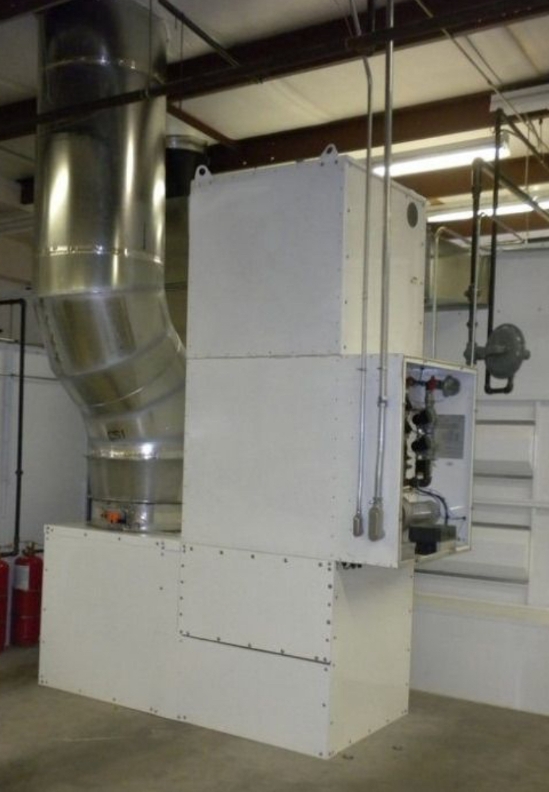

For Use With iDEAL Side Down & Semi Down Draft
Paint Spray Booth models:

PSB-SDD26B-1PH (2 Exhaust Duct Kits Required)
PSB-SDD26B-3PH (2 Exhaust Duct Kits Required)
PSB-SEMIDD26B-1PH
PSB-SEMIDD26B-3PH

*Plenum / Canopy Kit Required For Use With Side Down & Semi Down Draft Paint Booths.
