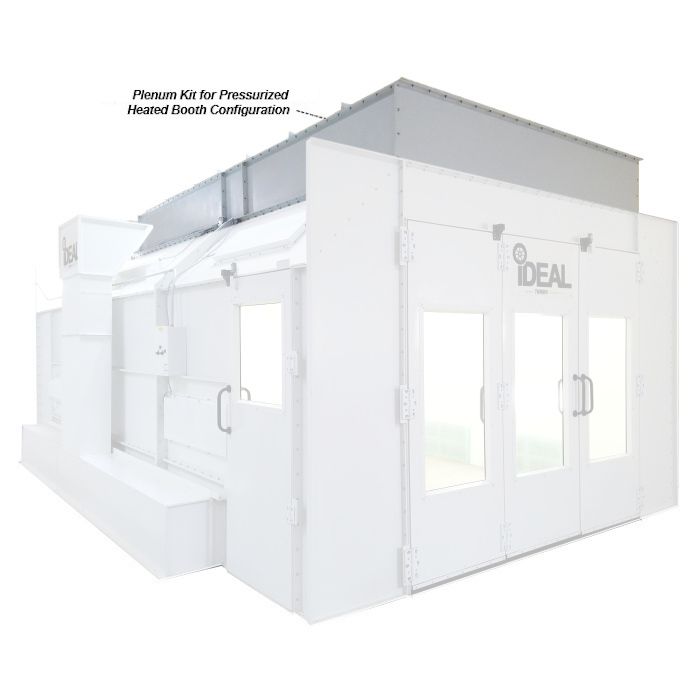

Side Downdraft Spray Booth Canopy Plenum Kit

This canopy plenum kit fits iDEAL Side Downdraft Paint Spray Booth models PSB-SDD26B-1PH (single phase) and PSB-SDD26B-3PH (three phase). It installs on both new booths during initial setup and existing booths as a retrofit when adding a direct gas-fired heater to the spray booth system.

Side downdraft and semi downdraft plenums have different mounting configurations to match their booth airflow designs. Side downdraft booths pull air through side wall exhaust filters while semi downdraft uses partial floor exhaust. Each plenum kit is sized and shaped specifically for its booth type.

The plenum panels use heavy-duty 18 gauge steel with precision punched mounting holes. Both the inside and outside surfaces have a bright white powder coated finish for corrosion resistance and light reflection. The panels connect with 5/16" nut and bolt assembly with all hardware and sealant included.

Yes. The plenum kit uses a straightforward 5/16" nut and bolt assembly design. All mounting hardware and sealant needed for installation are included in the kit. Precision punched panels align with pre-set mounting points on iDEAL side downdraft booths. No cutting or drilling of the booth structure is required.

The Side Downdraft Spray Booth Canopy Plenum Kit is priced at $4,220.00 (SKU PSB-SDD26B-PLENUM-KIT-ASY). It ships in stock from Creative Coating Solutions. Includes all 18 gauge powder coated panels, 5/16" assembly hardware, and sealant for complete installation on iDEAL booths.
