Industrial Paint Mixing Room (1 Phase / 3 Phase)

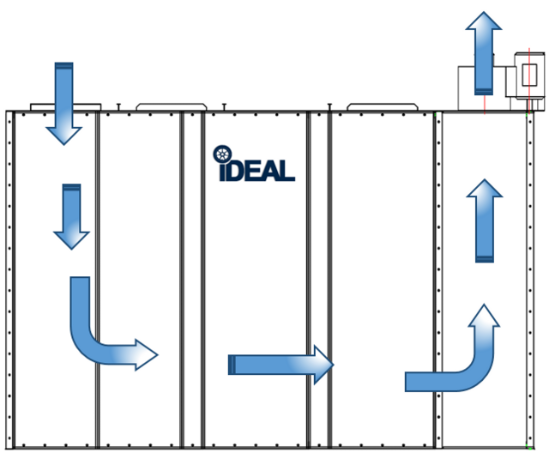

The Industrial Paint Mixing Room is designed to provide a clean, controlled, and safely ventilated workspace for professional paint mixing applications. The system uses ceiling intake filters to direct airflow through the room and downward into the filtered exhaust plenum before being discharged through the exhaust fan and ducting.

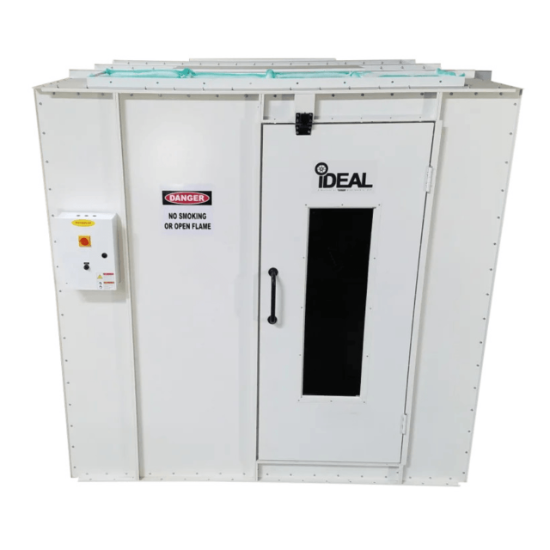

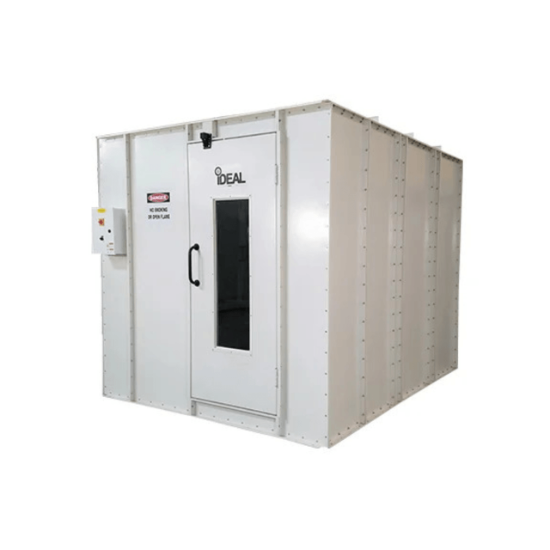

Its flexible design allows the personnel door to be installed on either the front or side of the room, making it suitable for different facility layouts. The fan and plenum chamber are located outside the mixing room to help reduce operating noise inside the workspace. A bright white powder-coated finish, deluxe control panel, premium filtration system, and high-quality tube-axial exhaust fan provide a complete professional mixing solution.

Features:

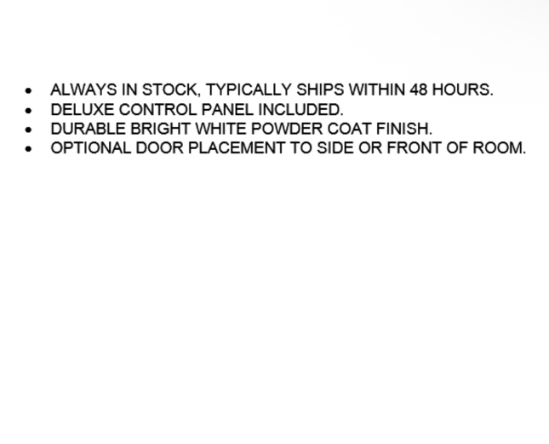

• Typically ships within 48 hours

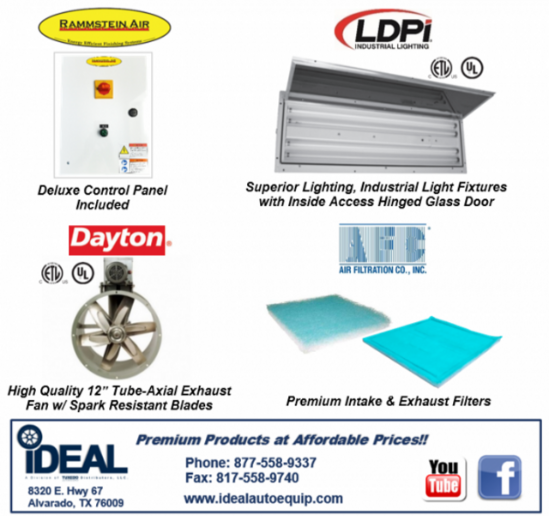

• Deluxe control panel included
• Durable bright white powder-coated finish
• Front or side personnel door placement options
• NEMA-rated 1/2 HP, 3-phase 230/460V, 60 Hz motor
• Premium AFC intake and exhaust filters
• (2) LPDI Industrial Light Fixtures, UL & ETL Class 1, Div. 2 rated
• GE T8 fluorescent lamps, 32W, 5000K daylight color temperature

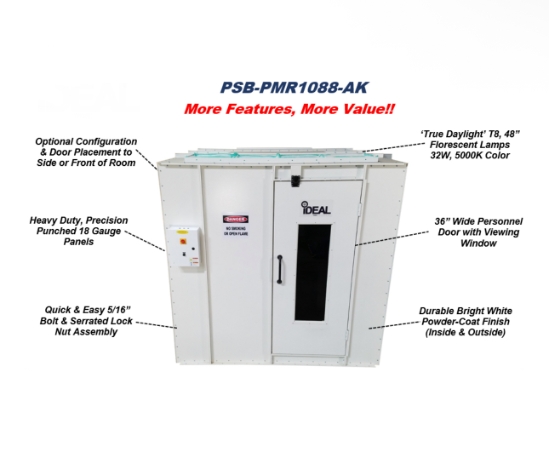

• Heavy-duty precision-punched 18-gauge panel construction
• 5/16" bolt and serrated lock nut assembly
• Pre-hung personnel door with viewing window
• Manometer, hardware, and sealant included
• Easy installation, operation, and maintenance
• Meets and exceeds applicable OSHA and NFPA 33 standards

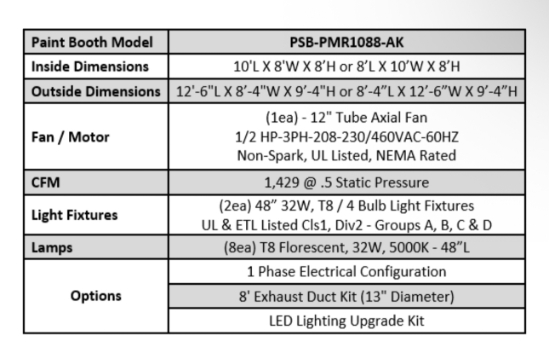

Specifications:

Inside Dimensions:
10' L x 8' W x 8' H
8' L x 10' W x 8' H

Outside Dimensions:
12'6" L x 8'4" W x 9'4" H
8'4" L x 12'6" W x 9'4" H

Airflow: 1,429 CFM @ 0.5 Static Pressure
Exhaust Fan: UL-Listed Dayton 12" Tube-Axial Fan with Spark-Resistant Fan Blades
