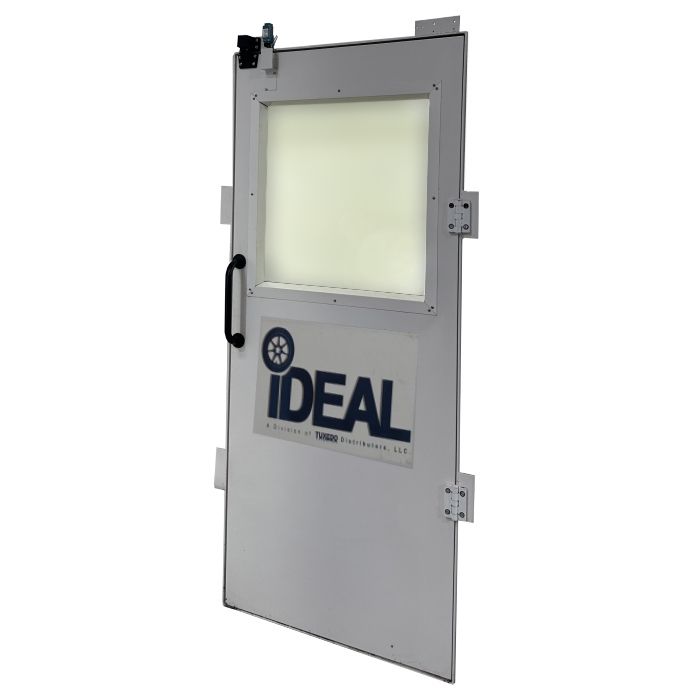

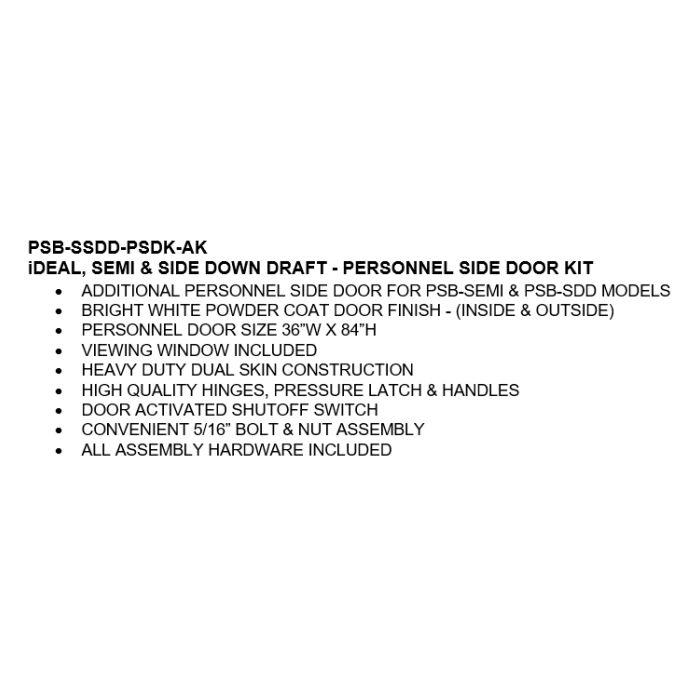

Personnel side door kit for PSB-SEMIDD and PSB-SDD paint spray booths. White powder coated dual-skin door with tempered glass viewing window, door-activated shutoff switch, and pressure latch. Bolt-on install with all hardware included.
For Use With iDEAL Semi Downdraft Paint Spray Booth models: PSB-SEMIDD26B-1PH PSB-SEMIDD26B-3PH For Use With iDEAL Side Downdraft Paint Spray Booth models: PSB-SDD26B-1PH PSB-SDD26B-3PH Price shown is when purchased with a paint spray booth.Please contact us for pricing when purchased separately.

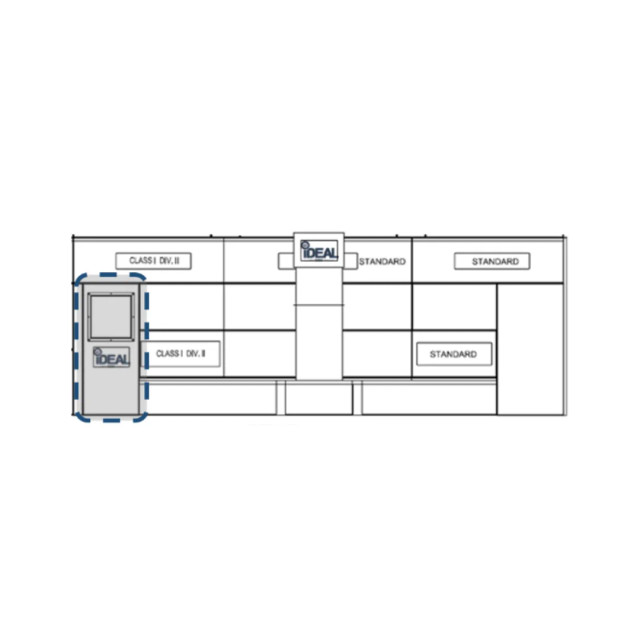

This door kit fits the PSB-SEMIDD semi downdraft and PSB-SDD side downdraft paint spray booth models. It provides an additional side entry point for operator access. The kit bolts onto the booth side panel using included 5/16" hardware with no cutting or welding.
Yes. The door includes a door-activated shutoff switch and a door limit switch. When the door opens during booth operation, the system shuts off to prevent overspray from escaping. This protects booth air quality and operator safety. The system restarts when the door is closed.
The viewing window uses tempered glass, which is heat-treated for impact resistance and safety. If broken, tempered glass fractures into small rounded pieces rather than sharp shards. This is the required glass type for industrial spray booth applications where chemical exposure occurs.
Dual-skin construction uses two steel panels with an air gap between them. This provides better insulation, sound dampening, and structural rigidity than single-panel doors. It also resists denting from daily shop use and maintains the door's flatness over years of opening and closing.
The Semi/Side Downdraft Booth Personnel Side Door Kit is priced at $2,900.00 (SKU PSB-SSDD-PSDK-AK). It includes the door, frame, tempered glass window, shutoff switch, hinges, latch, handles, and all hardware. Ships in stock within 2-4 days.
