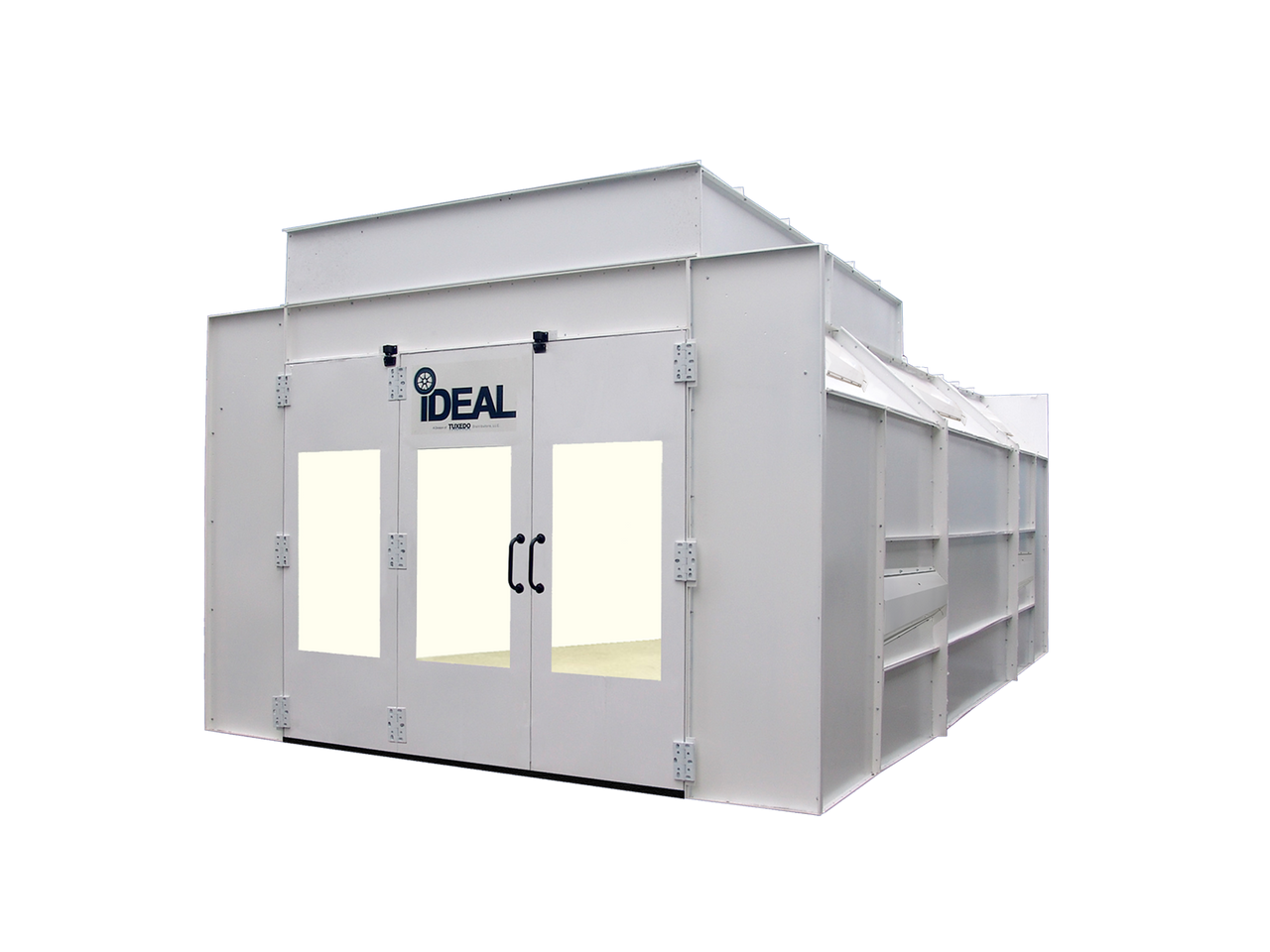

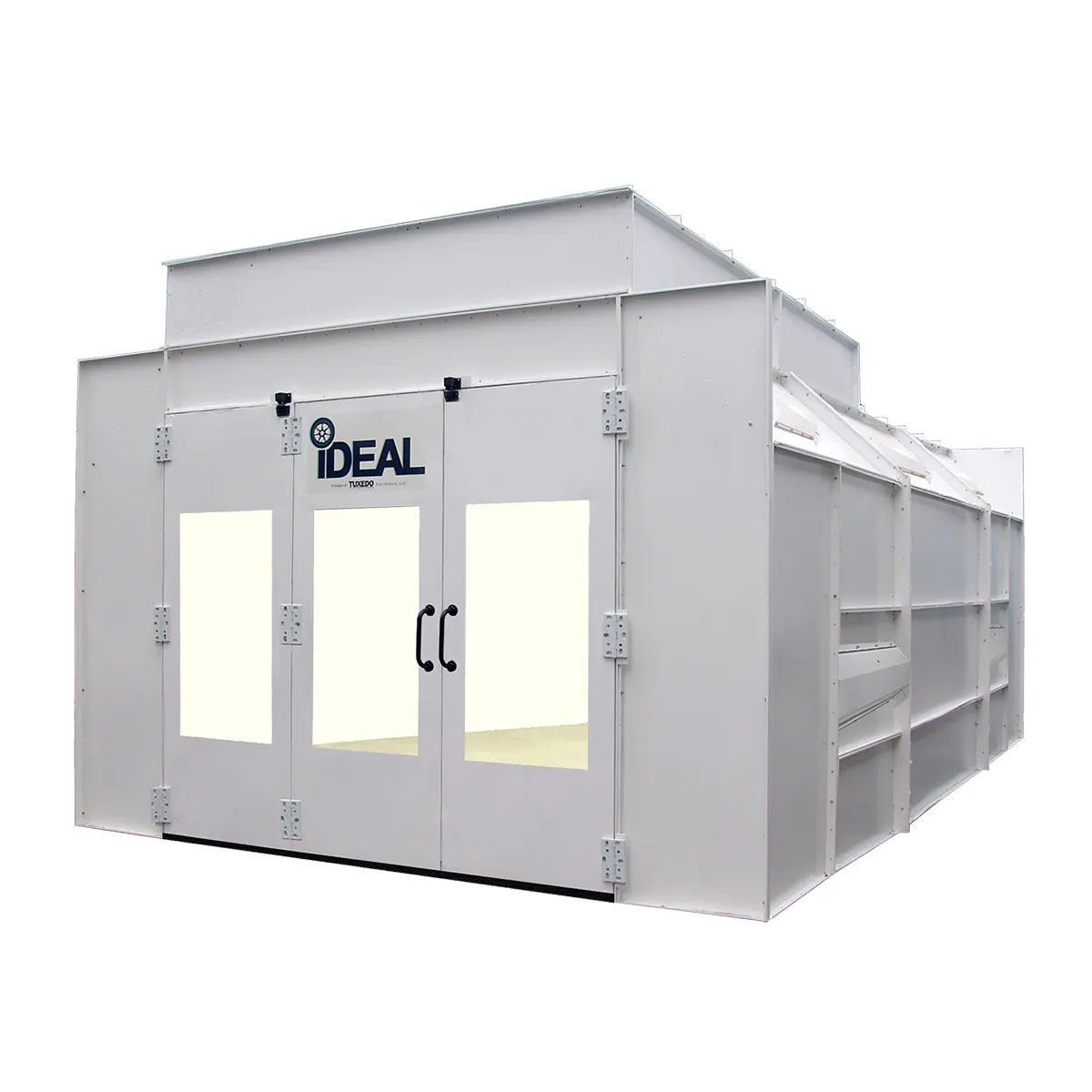

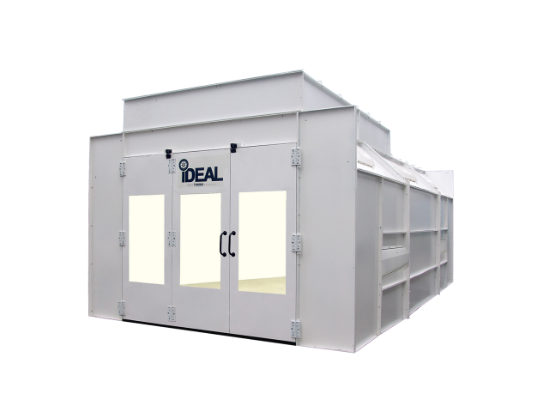

Commercial Semi Down Draft Paint Spray Booth (1 Phase / 3 Phase)

Item #: PSB-SEMIDD26B-AK

There are no reviews yet Write a review

Price: $23,900.00

Electric Option:

Update price

Quantity:

About This Item

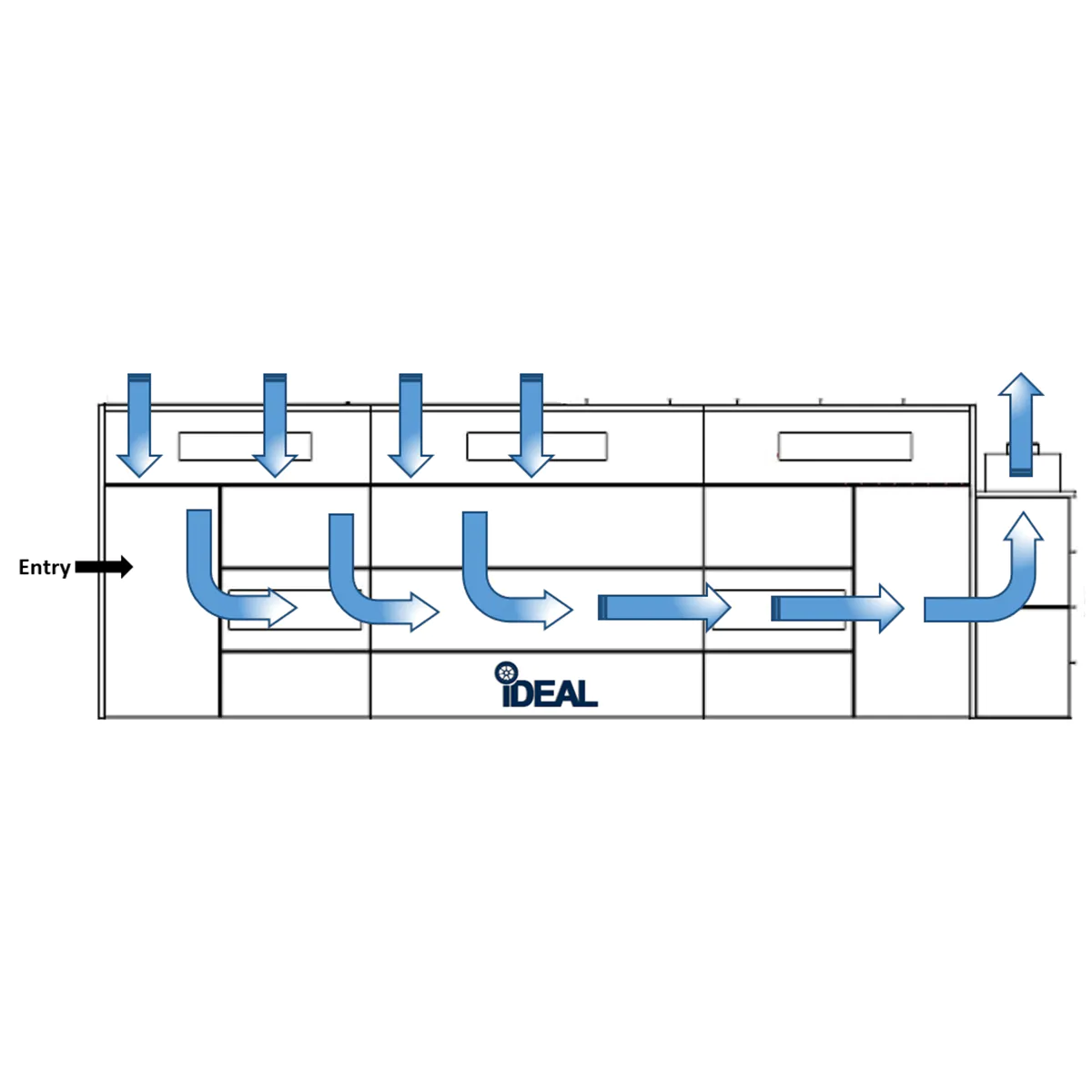

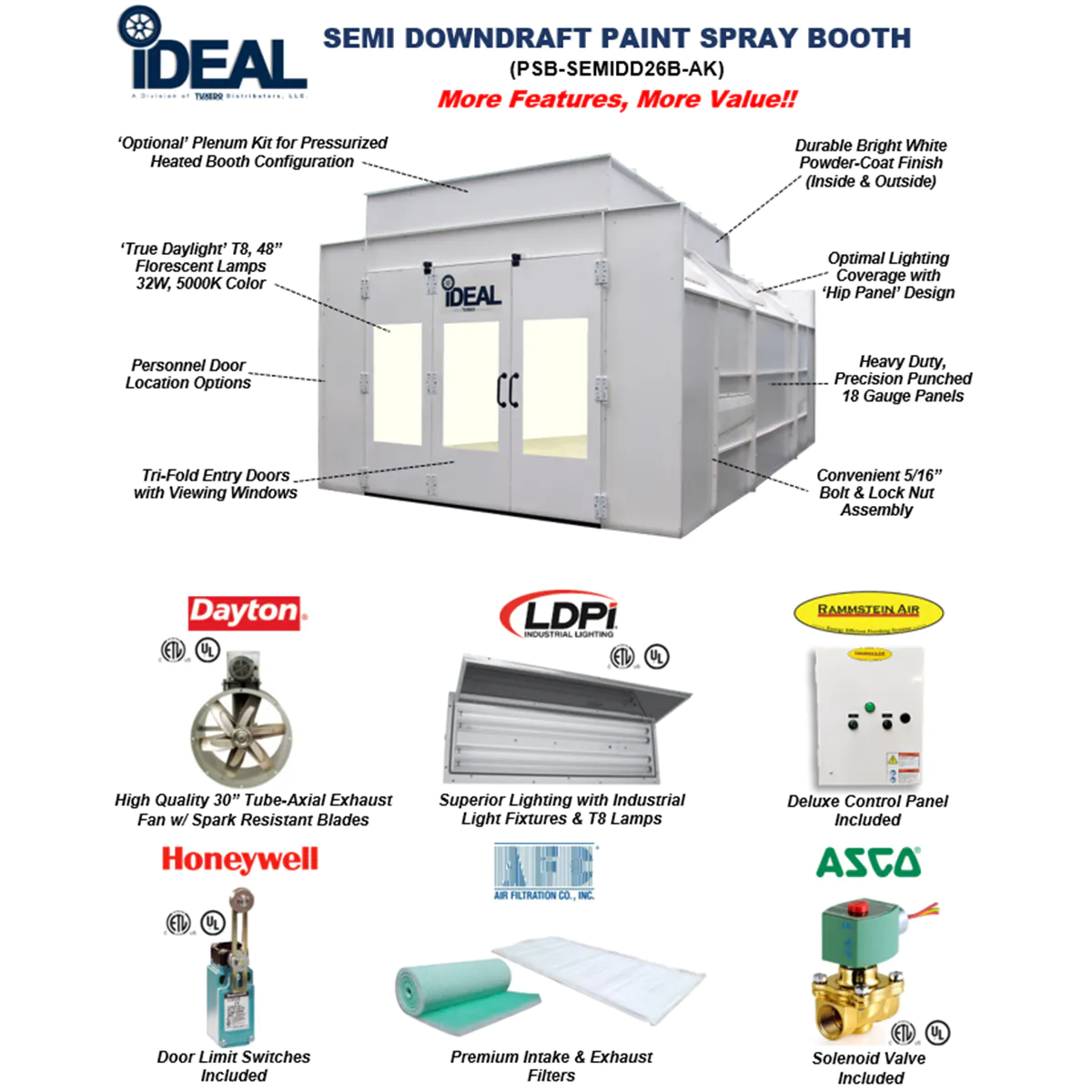

The Commercial Semi Downdraft Paint Spray Booth is a premium-grade finishing solution designed to provide superior lighting and controlled airflow for high-quality paint applications. Ideal for automotive, industrial, and woodworking environments, the semi-downdraft design draws filtered air through ceiling-mounted intake filters and directs airflow downward toward the rear exhaust chamber, helping create a cleaner spray environment and consistent finish quality.

Built with heavy-duty 18-gauge precision-punched steel panels, the booth features a bright white powder-coated finish on both interior and exterior surfaces to maximize light reflectivity and maintain a professional appearance. A commercial-grade hip-panel design enhances lighting coverage throughout the work area, while the integrated exhaust system efficiently removes overspray and airborne contaminants.

Specifications:

Inside Dimensions: 26' L x 14' W x 9'3" H
Airflow: 12,200 CFM @ 0.5 Static Pressure
Panel Construction: Heavy-Duty Precision-Punched 18-Gauge Steel
Exhaust Fan: UL-Listed Dayton 30" Tube-Axial Fan with Spark-Resistant Blades
Motor: NEMA-Rated 3 HP, 3-Phase, 230/460 VAC, 60 Hz
Finish: White Powder Coating (Interior and Exterior)
Assembly: 5/16" Bolt-and-Nut Construction
Compliance: Meets NFPA 33 Standards

Included Features:

Deluxe Control Panel
Premium AFC Intake and Exhaust Filters
Manometer, Solenoid Valve, Hardware, and Sealant

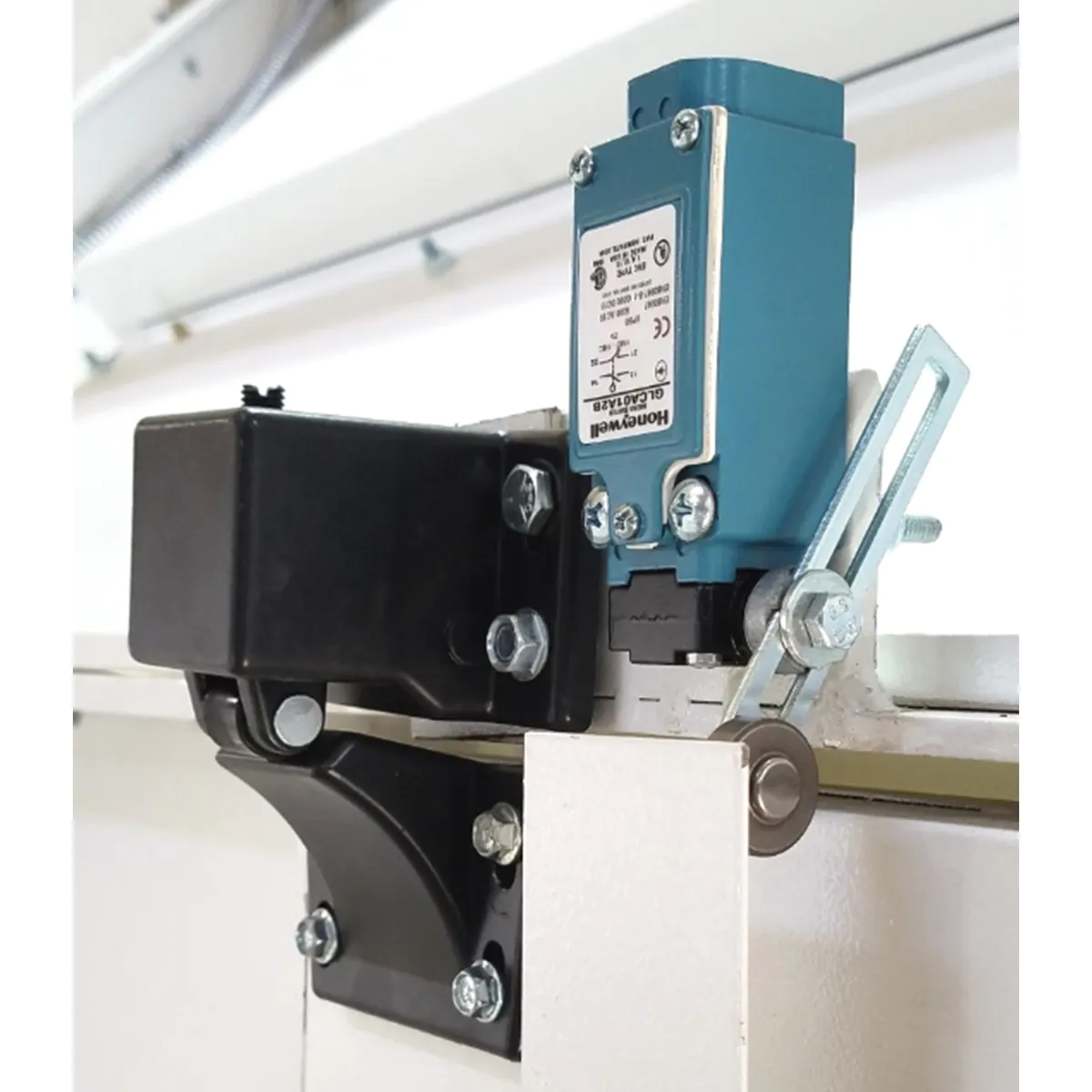

Tri-Fold Entry Doors with Viewing Windows and Shutoff Switch

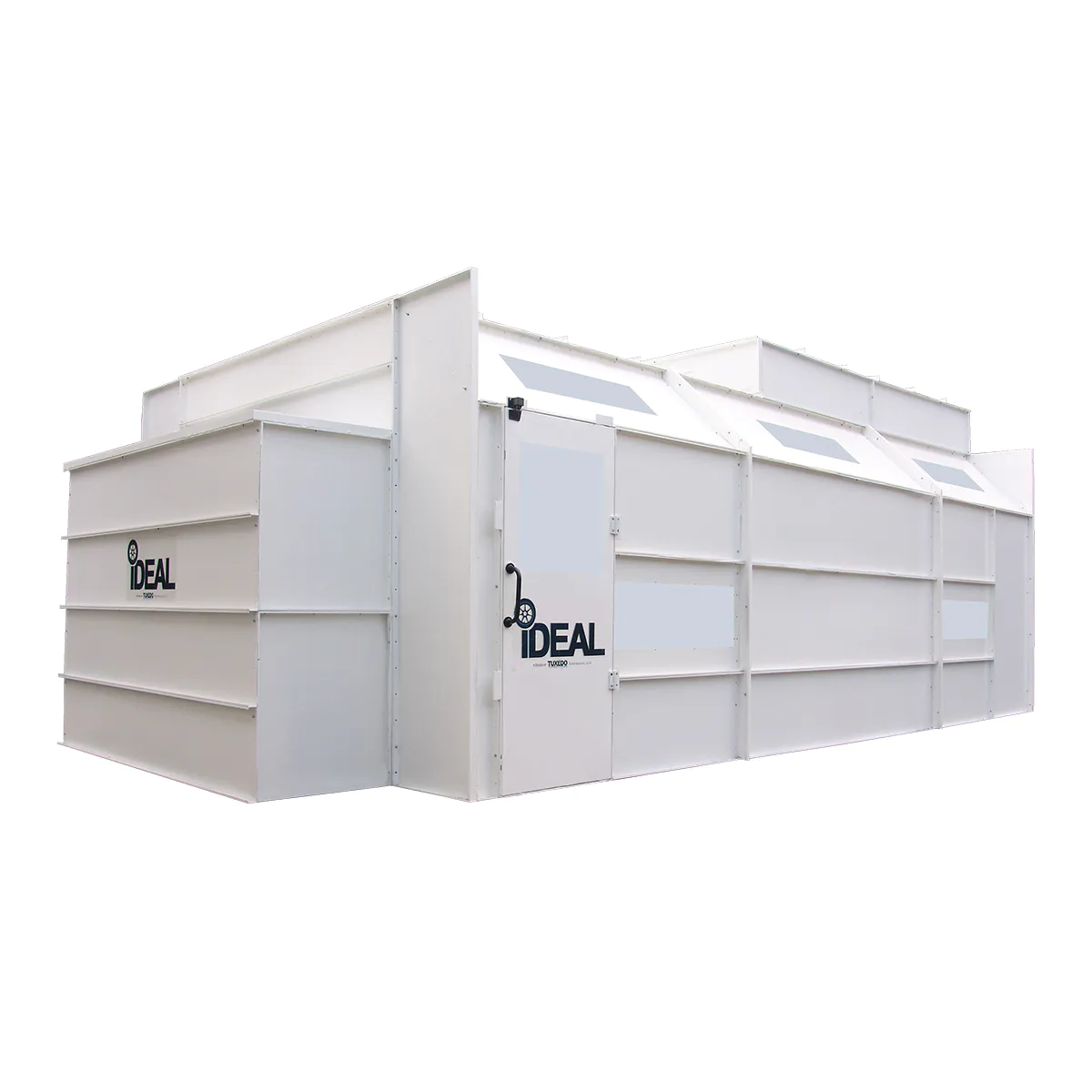

Personnel Door with Viewing Window and Shutoff Switch
(10) LPDI Industrial T8 Vertical Light Fixtures
(40) GE T8 Fluorescent Lamps, 32W, 5000K
Commercial-Grade Hip-Panel Design for Enhanced Lighting Coverage
Typically Ships Within 48 Hours

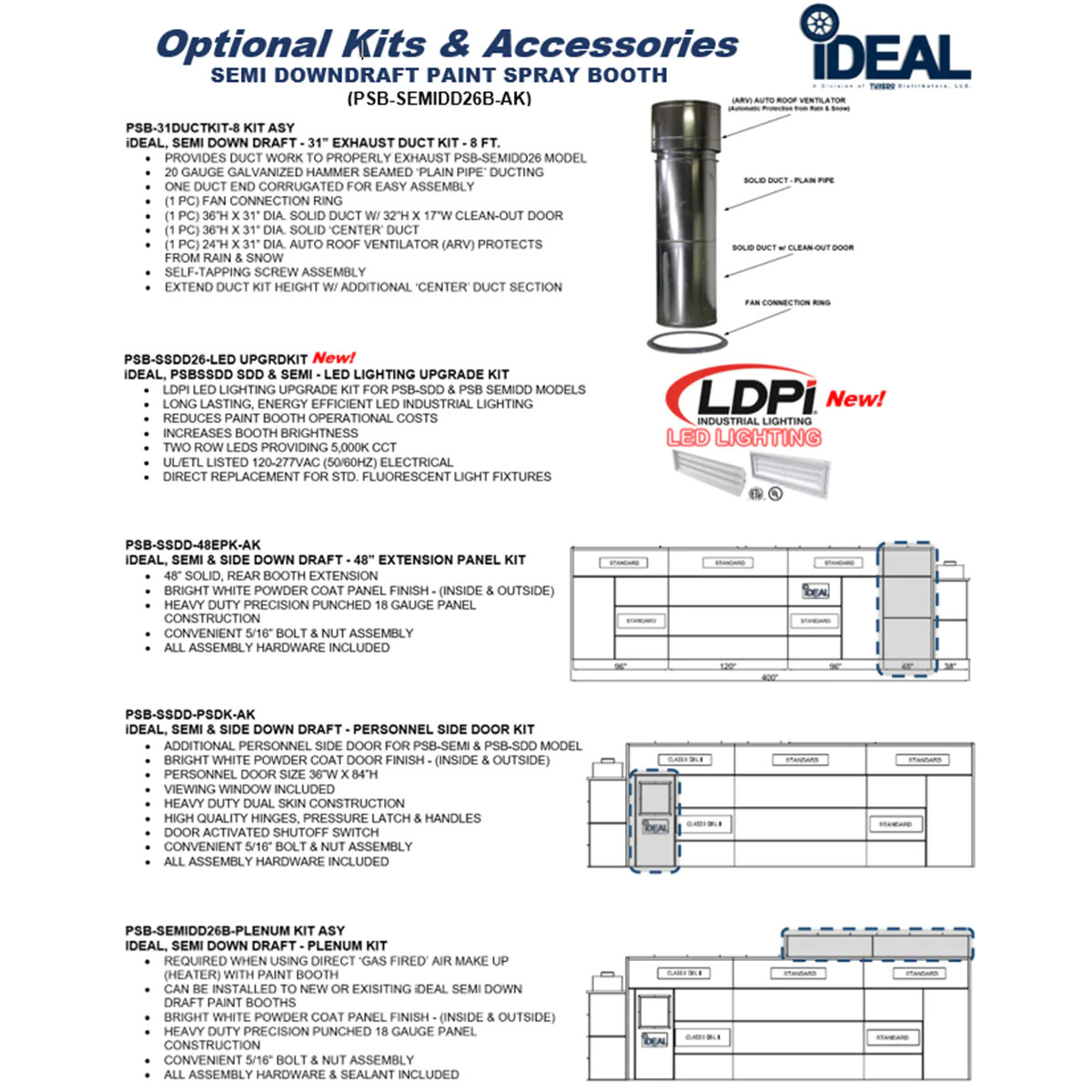

Upgrade Options

LED Lighting:

https://www.creativecoatingsol...

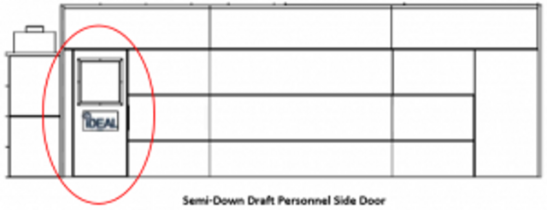

Side Personnel Door:

https://www.creativecoatingsol...

Stand Alone Paint Mixing Room

https://www.creativecoatingsol...

Heater/Makeup Unit:

https://www.creativecoatingsol...

Description

iDEAL's Semi Down Draft Paint Spray Booth is precision constructed with heavy duty 18 Gauge galvanized steel panels, Powder coated both inside and outside. This booth is designed in accordance with NFPA codes and OSHA national specifications. Our semi-Down Draft booth offers superior airflow performance granting you a clean work environment for a great finish.

High quality, heavy duty precision construction, coupled with premium quality components and features, All working together to give you the iDEAL difference.

Ships typically within 48 hours

Specifications

Specifications

Model: PSB-SEMIDD26B-AK
Inside Dimensions: 26'L x 14'W x 9'-3"H
Outside Dimensions: 29'-4"L x 14'-4"W x 9'-7"H
Fan/Motor: 30" Tube-Axial Fan, 3HP - 3PH - 230/460VAC - 60HZ, Non-Sparking Blades - NEMA Rated
CFM: 12,200 @ .5 Static Pressure
Lighting: (10ct) T-8 Fixtures, 4 Bulbs Per Fixture

Additional Information

Equipment is shipped Via LTL carrier of a 48' Semi Truck, Things to be noted as your making your purchase:

the customer is responsible for unloading the truck as the driver will not unload this for you.
Lift gate can not facilitate these items so it will not be available.
The customer is responsible for providing a forklift or means of removing your items or skids from the truck.
If there are issues with facilitating a lift or skid steer we can have this delivered to the nearest terminal at your request and you can pick up at the terminal with a trailer.
You are responsible for contacting the the freight company to set up a delivery schedule as we do not know your hours or schedule. We can provide the freight companies contact information if requested.
We are not responsible for additional freight charges for re-delivery if the customer is not available when the truck arrives

When your item ships allow for 3-14 days of shipping time depending on your location.

Reviews

Write a review!

Frequently Asked Questions

What is a semi downdraft paint spray booth?

What is the difference between semi downdraft and cross flow booths?

Does the semi downdraft booth require a canopy plenum kit?

What power supply does the commercial semi downdraft paint spray booth require?

Can the semi downdraft booth be extended to paint longer vehicles?
