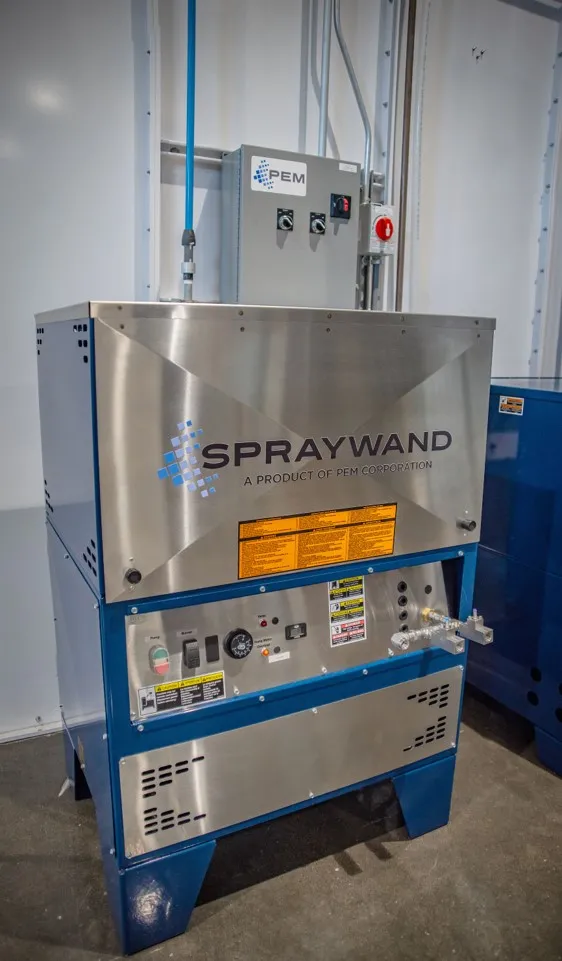

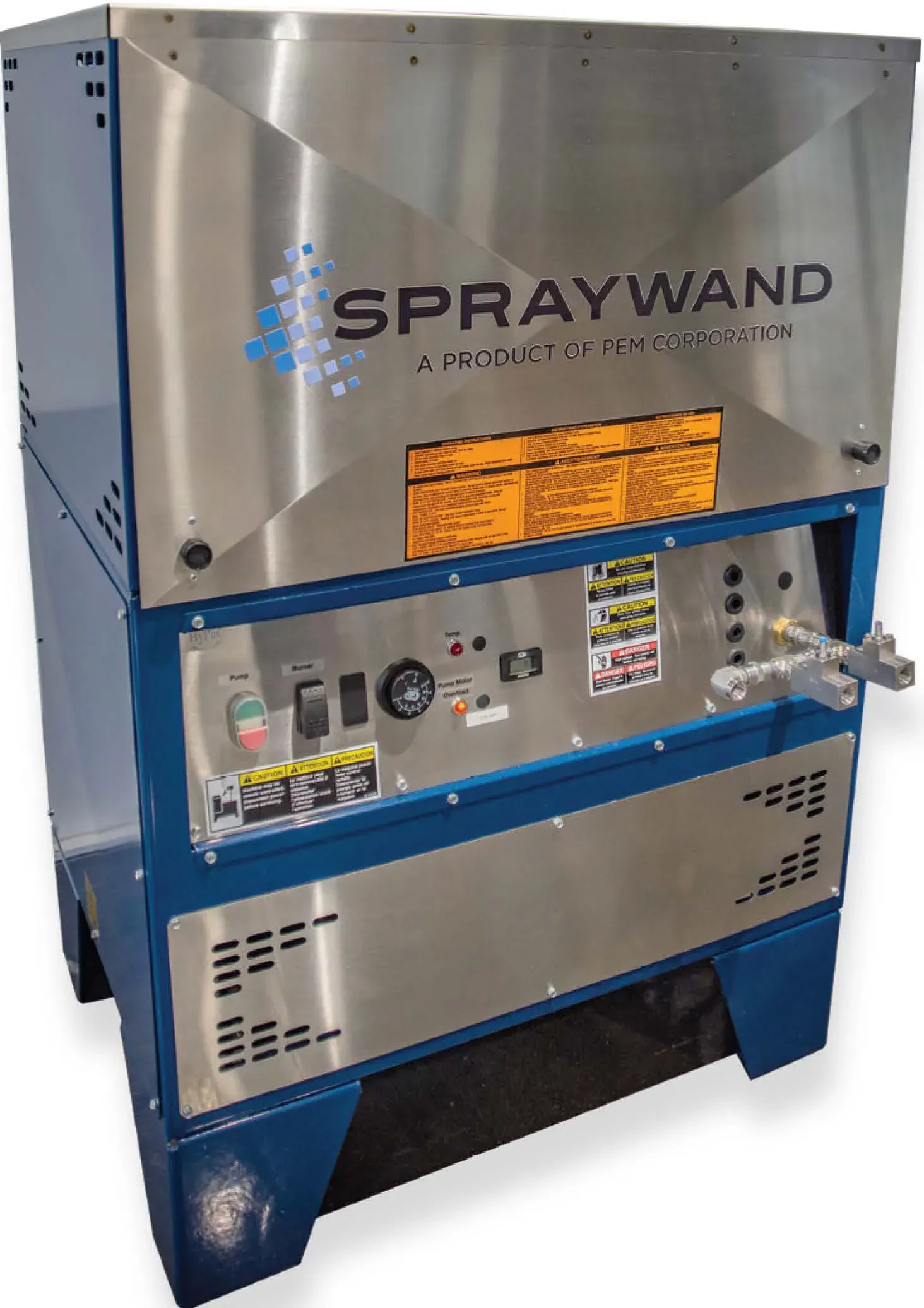

E-300 Manual Pretreatment Application System

The E-300 SprayWand system delivers manual pretreatment application for metal cleaning and surface preparation before coating. Fixed orifice injectors provide precise chemical metering for maximum cleaning performance while minimizing chemical waste. Downstream injection keeps pump components isolated from pretreatment chemicals, extending equipment life. The system runs at 5 GPM and 1500 PSI for both pretreatment and rinse functions. ETL and CSA listed. Includes diagnostic panel, NEMA motors, and CAT pumps.

• Faster installation
• No exhaust required
• Fixed orifice injectors deliver precise chemical metering for maximum performance and savings
• Minimum wear and tear, provides reliable performance and long product life
• Eliminate burner and coil maintenance
• Reduced emissions
• ETL and CSA listed
• Fixed orifice injectors
• Adjustable wash temperatures
• Redundant safety features
• Downstream injection provides better, faster cleaning - pump components are not exposed to chemicals
• Easy-to-read diagnostic panel
• Versatile design offers easy setup for any pretreatment need

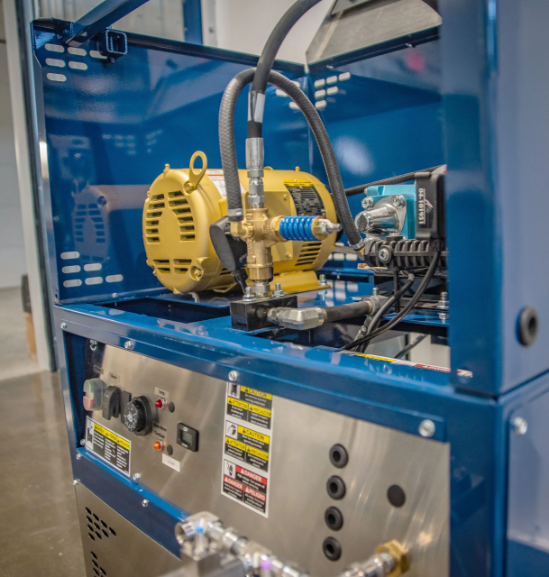

• NEMA motors and CAT pumps
• Easy installation
• Beta pumps for pH adjust and coil conditioner options
• Horsepower: 7.5
• Electrical: 460V 3-phase / 90A service
• Connection: 4 wire through junction box
• GPM: 5
• Pressure (PSI): pretreatment 1500 PSI, rinse 1500 PSI
• Water connection: standard garden hose, female swivel
• Nozzles: 1-15085 x 1/4" NPT
• Dimensions: 32"L x 24"W x 48"H
• Weight: dry 500 lbs, shipping 475 lbs
