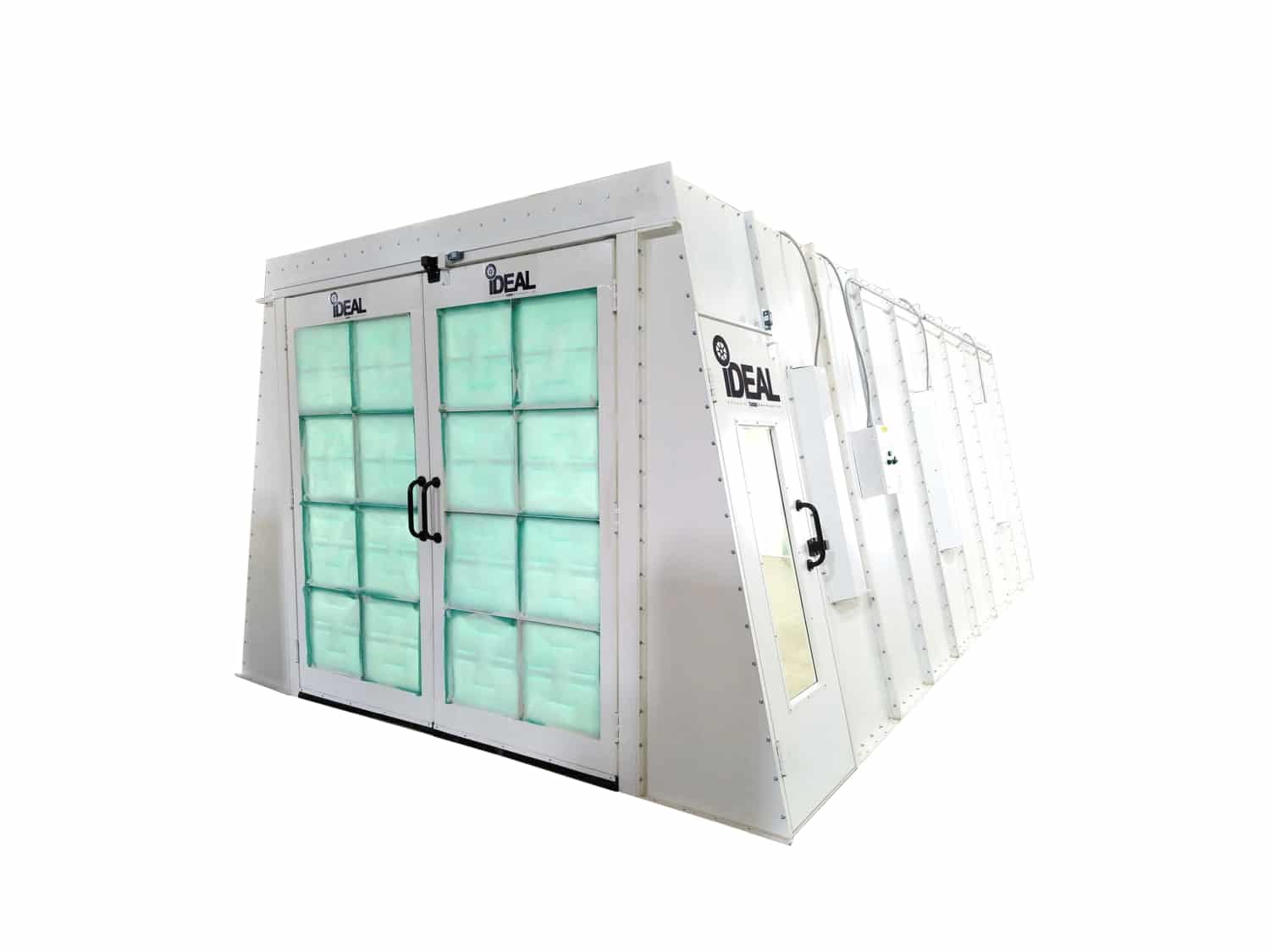

Commercial Cross Flow Paint Spray Booth - 3 Phase

A cross flow draft paint spray booth moves filtered air horizontally from one end to the other, carrying overspray away from the painter and out through exhaust filters at the opposite end. This airflow pattern is cost-effective to install and suitable for most automotive and industrial paint applications.

The booth is available in both single-phase and 3-phase electrical configurations. Single-phase suits most standard commercial buildings without a 3-phase panel, while 3-phase provides more consistent motor performance for high-volume production environments. Confirm your facility power supply before ordering equipment.

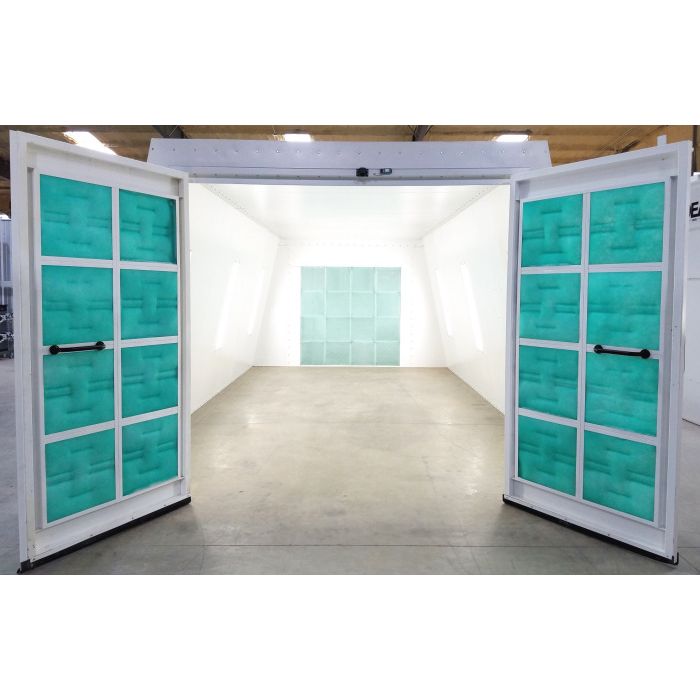

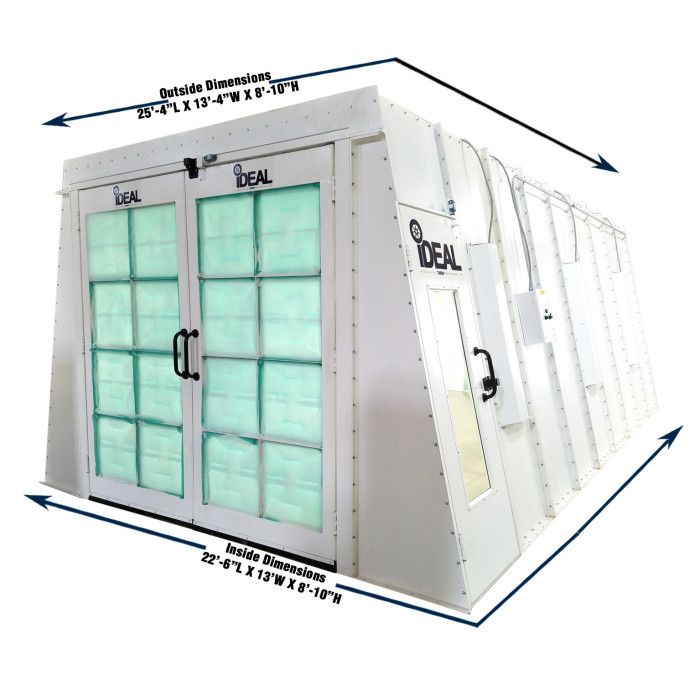

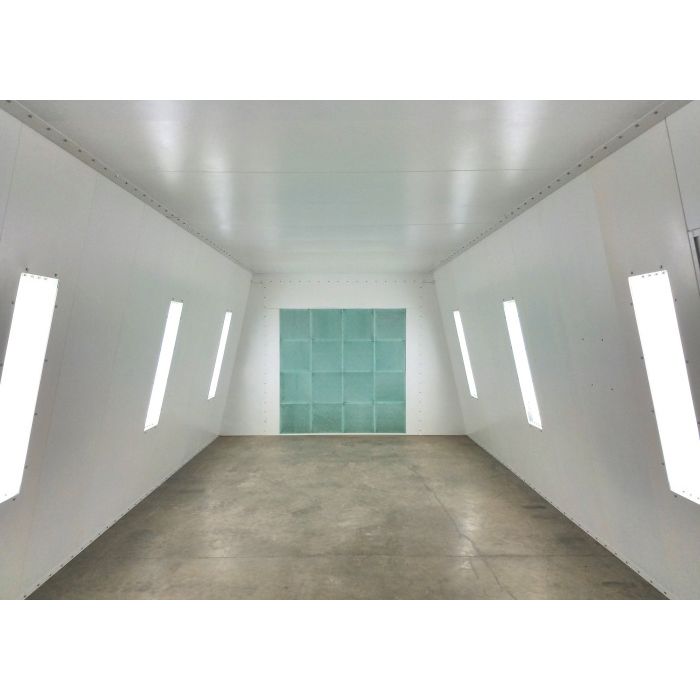

The booth interior accommodates full-size cars, pickup trucks, and light commercial vehicles. Extended cab trucks and vans also fit within standard dimensions. For oversized vehicles or dual-lane configurations, contact Creative Coating Solutions to discuss custom sizing or extension panel options.

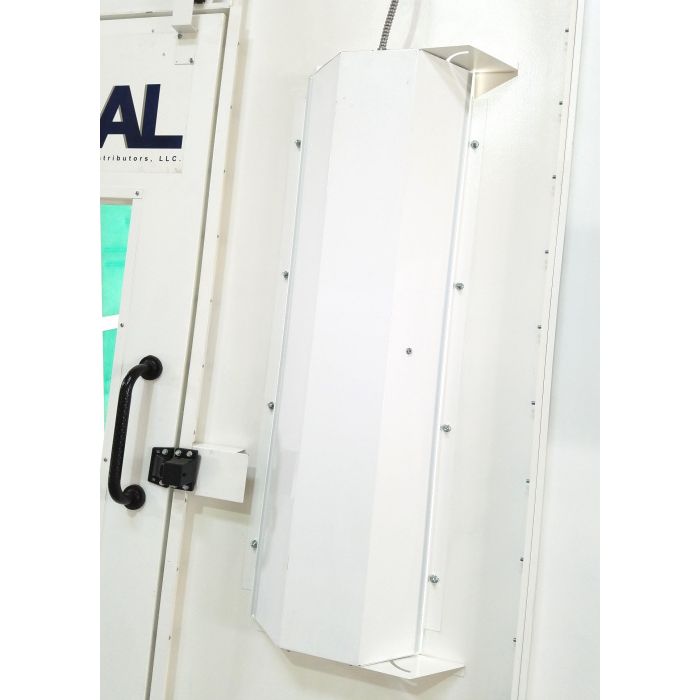

Yes, the booth is engineered to meet NFPA 33 standards for spray application of flammable materials. Steel construction, filtered air supply, explosion-proof rated lighting, and grounding provisions are all included. Always verify compliance with your local fire marshal before commissioning the booth.

Available accessories include LED lighting upgrade kits, 30-inch solid extension panel kits, side personnel door kits, electric or gas air makeup heater units, and pleated primary replacement filters. All accessories are purpose-built for this booth and ordered directly from Creative Coating Solutions.
