Cross Flow Booth 30" Extension Panel Kit

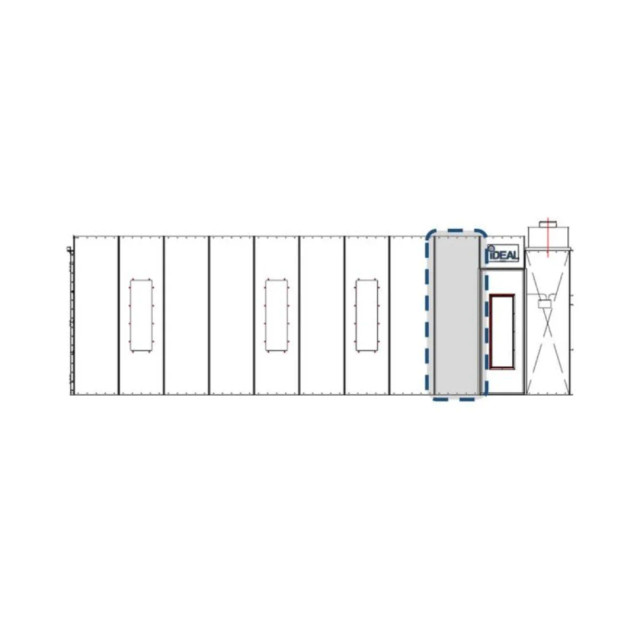

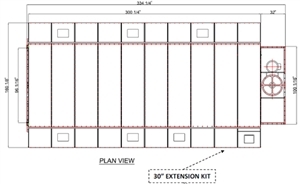

The kit adds 30 inches to the rear of the booth, increasing the total inside working length to 25 feet. This is enough to fit most full-size pickup trucks that would not fit in the standard booth length. The panels bolt directly to the existing rear opening.

This extension fits the PSB-AFC23B cross flow paint spray booth. It is designed specifically for that model's panel dimensions and bolt pattern. The kit includes all 5/16" bolt and nut hardware for installation. Verify your booth model before ordering.

The extension panels are precision-punched 18-gauge steel with bright white powder coated finish on both inside and outside surfaces. This matches the gauge and finish of the original booth panels for a consistent appearance and structural integrity across the extended length.

Yes. The kit uses standard 5/16" bolt and nut assembly that can be completed with basic hand tools. All hardware is included. The panels bolt to the rear of the existing booth frame. Most shops complete the installation in a single day with two people.

The Cross Flow Paint Spray Booth 30" Solid Extension Panel Kit is priced at $1,520.00 (SKU PSB-AFCF-30SEPK-AK). The kit includes all extension panels, powder coated finish, and assembly hardware. Ships in stock within 2-4 days from Creative Coating Solutions.
