Commercial Open Front Paint Spray Booth

Item #: PSB-AFOFB1388-AK-3PH

There are no reviews yet Write a review

Price: $9,300.00

Electric Option:

Update price

Quantity:

About This Item

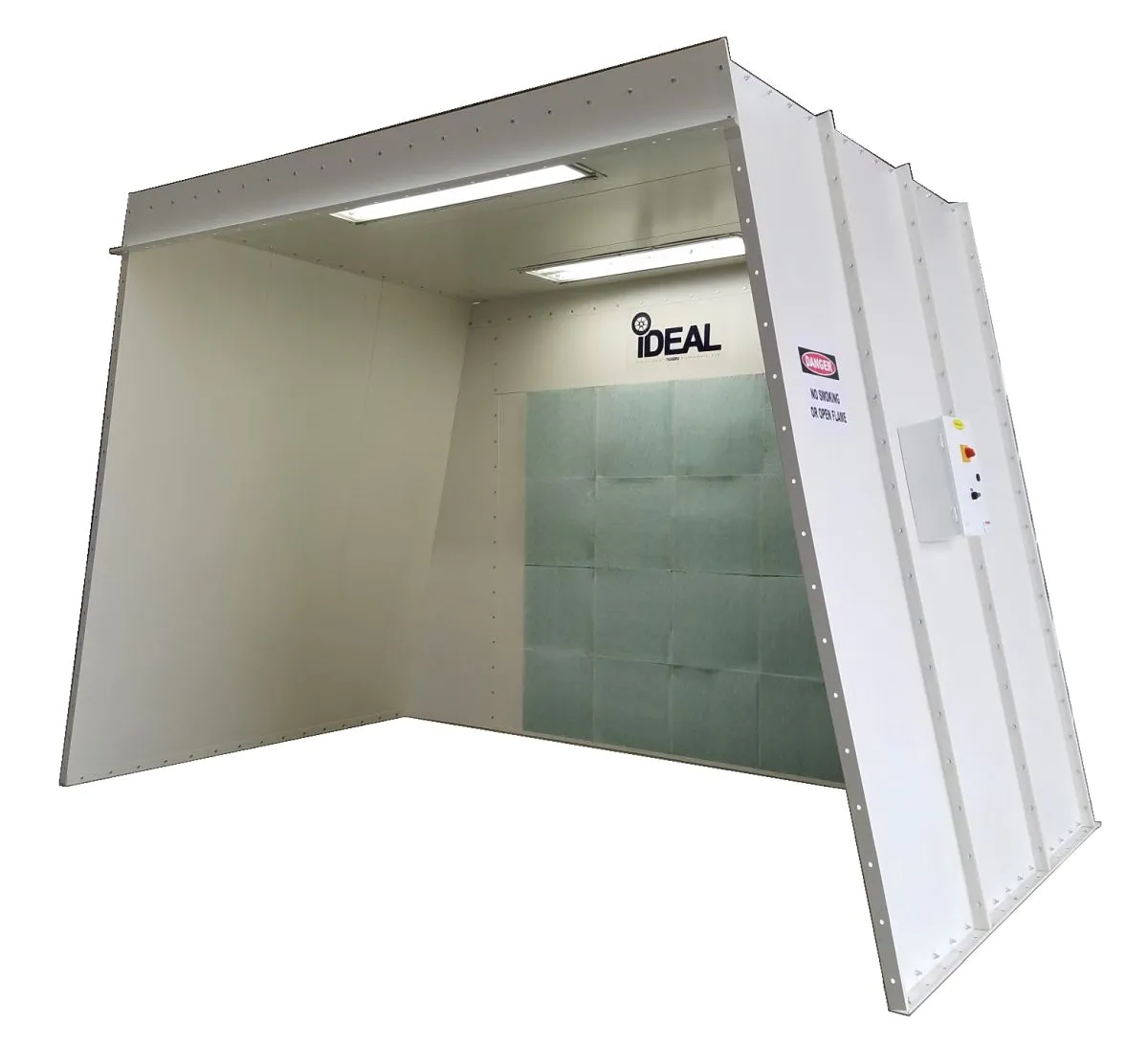

Our Open Front Paint Booth is an 'A-Frame' economic, commercial grade open front paint booth designed to [provide optimal 'air flow' with superior lighting for high quality spray painting and finishing applications. The iDEAL Open Front Paint Booth is a great solution for industrial batch-type and automated production-type finishing systems. Air flows through the open front section of the booth, then passes through the work area towards the rear of the booth into the plenum and discharged upwards through the exhaust fan and ducting. Easily installed the heavy duty , precision punched 18 gauge panels allowing the quick nut and bolt assembly. Standard with bright white powder-coat inside and outside, deluxe Rammstein control panel, premium AFC exhaust filters, hinged glass light fixtures and high-quality tube-axial exhaust fan to complete the package for a premium, high quality Open Front Paint Booth, giving you a superior finish as the superior performance of this booth will set you above your competition, all of this at a great value.

Always in stock, Typically shipped within 48 hours

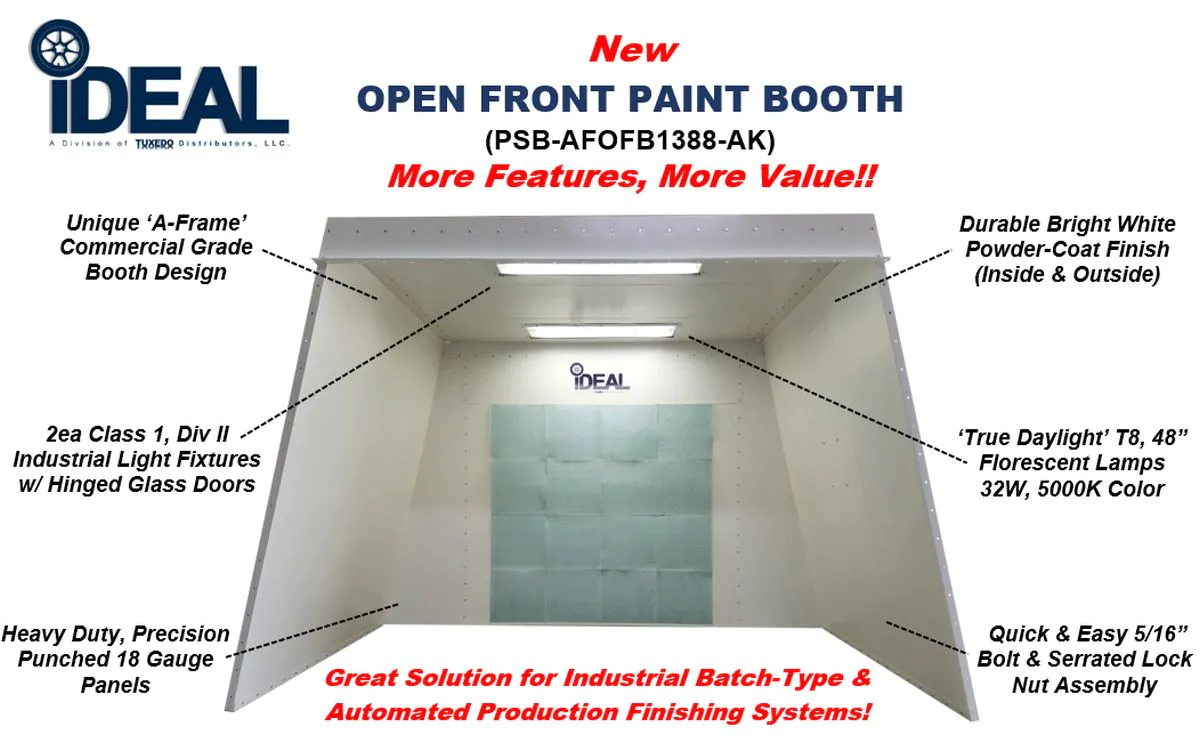

Unique A-Frame commercial grade booth design
Designed for Optimal Air-Flow and Lighting coverage

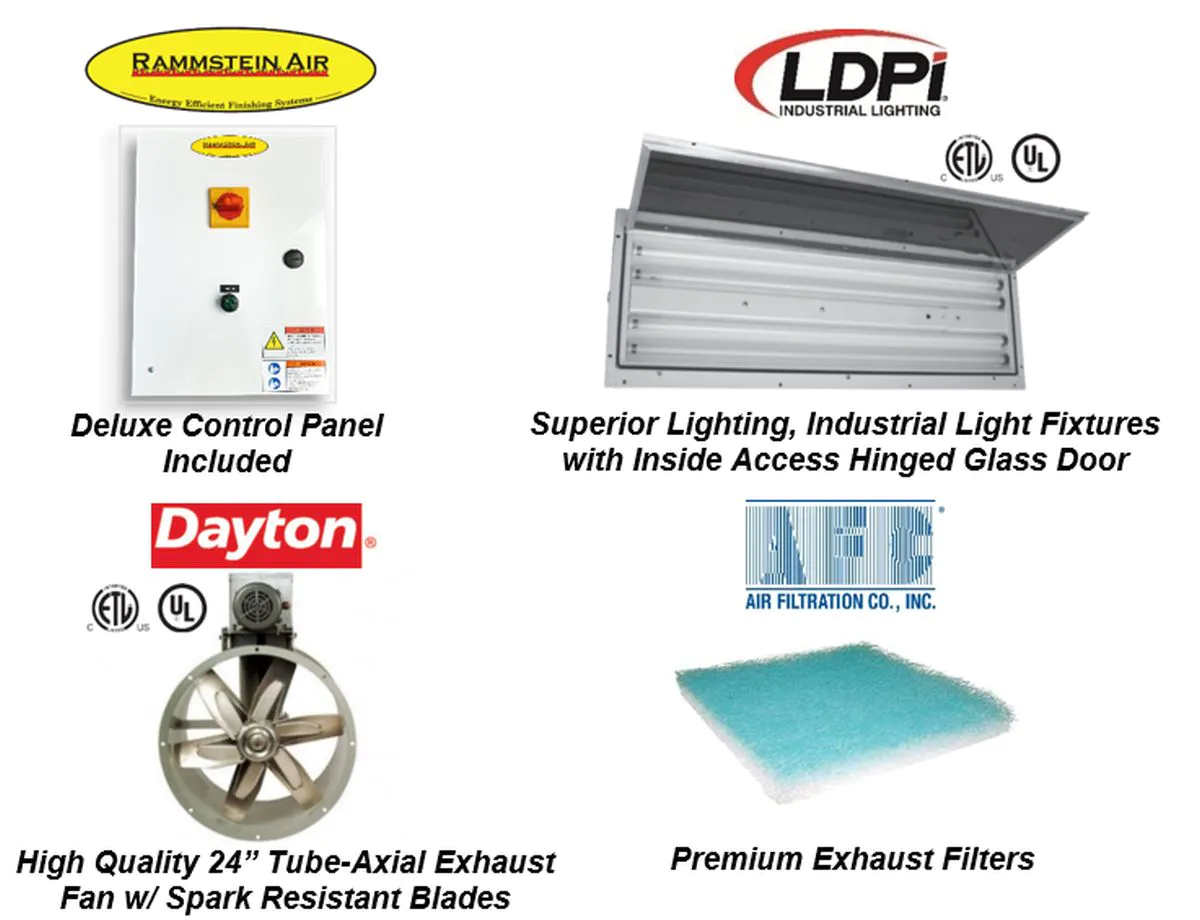

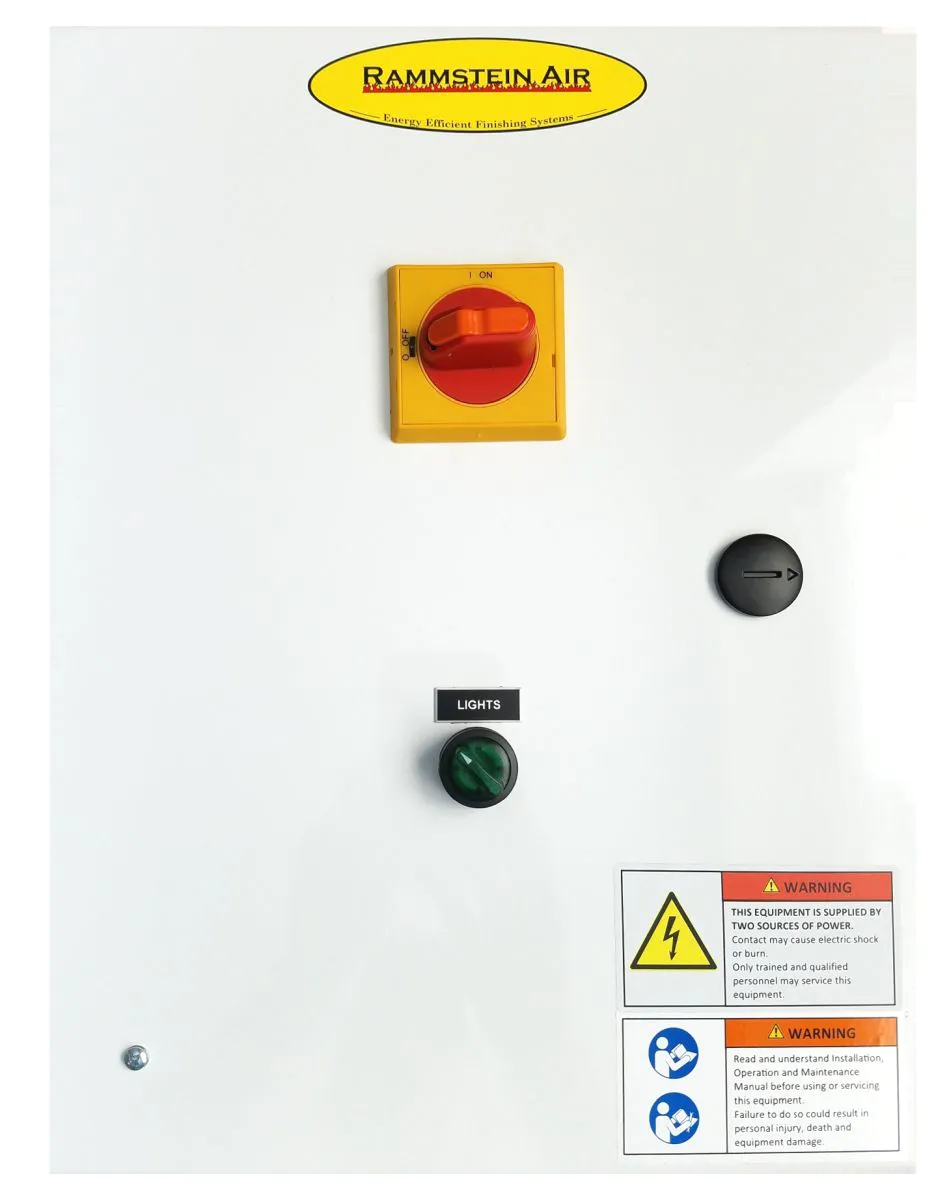

Deluxe Rammstein air control panel included
Bright white powder coated panel finish inside and outside
Heavy-Duty precision punched 8 gauge panel construction
Convenient 5/16" bolt and serrated lock nut assembly
UL Listed Dayton 24" Tube-Axial exhaust fan with spark resistant fan blades
NEMA Rated 2HP 230/460 VAC 3HP 60Hz Motor
Premium AFC exhaust filters included
Superior lighting with LPDI industrial light fixtures
Fixtures feature inside access hinged glass door
(2ct) LPDI industrial (CLS1 / DIV 2) light fixtures - UL & ETL (Groups A, B, C & D)
True 'Daylight Color' with GE T8 48" fluorescent lamps 32W - 2900 lumens, 5000K
Optimal Air Flow with CFM 7,983 @ .5 Static Pressure
All assembly hardware, Manometer and sealant included
Meets and/or exceeds all applicable OSHA nad NFPA 33 Regulations
Easy to install, operate and maintain

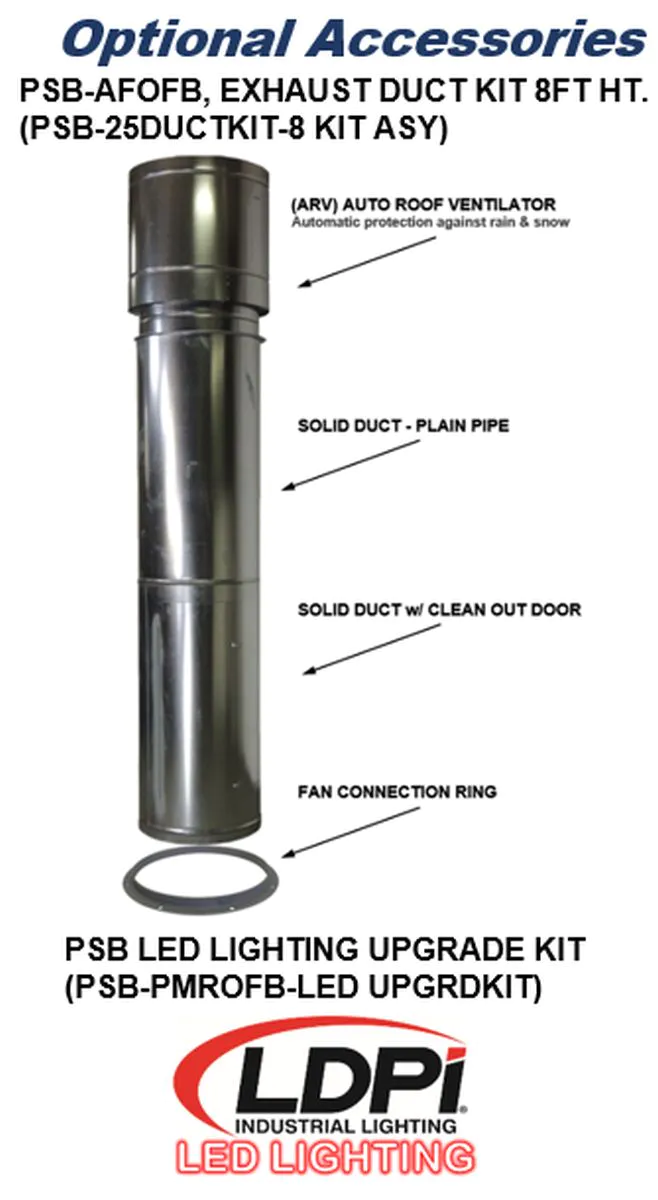

Upgrade Option

LED Lighting:

https://www.creativecoatingsol...

Stand Alone Paint Mixing Room:

https://www.creativecoatingsol...

Specifications

Specifications

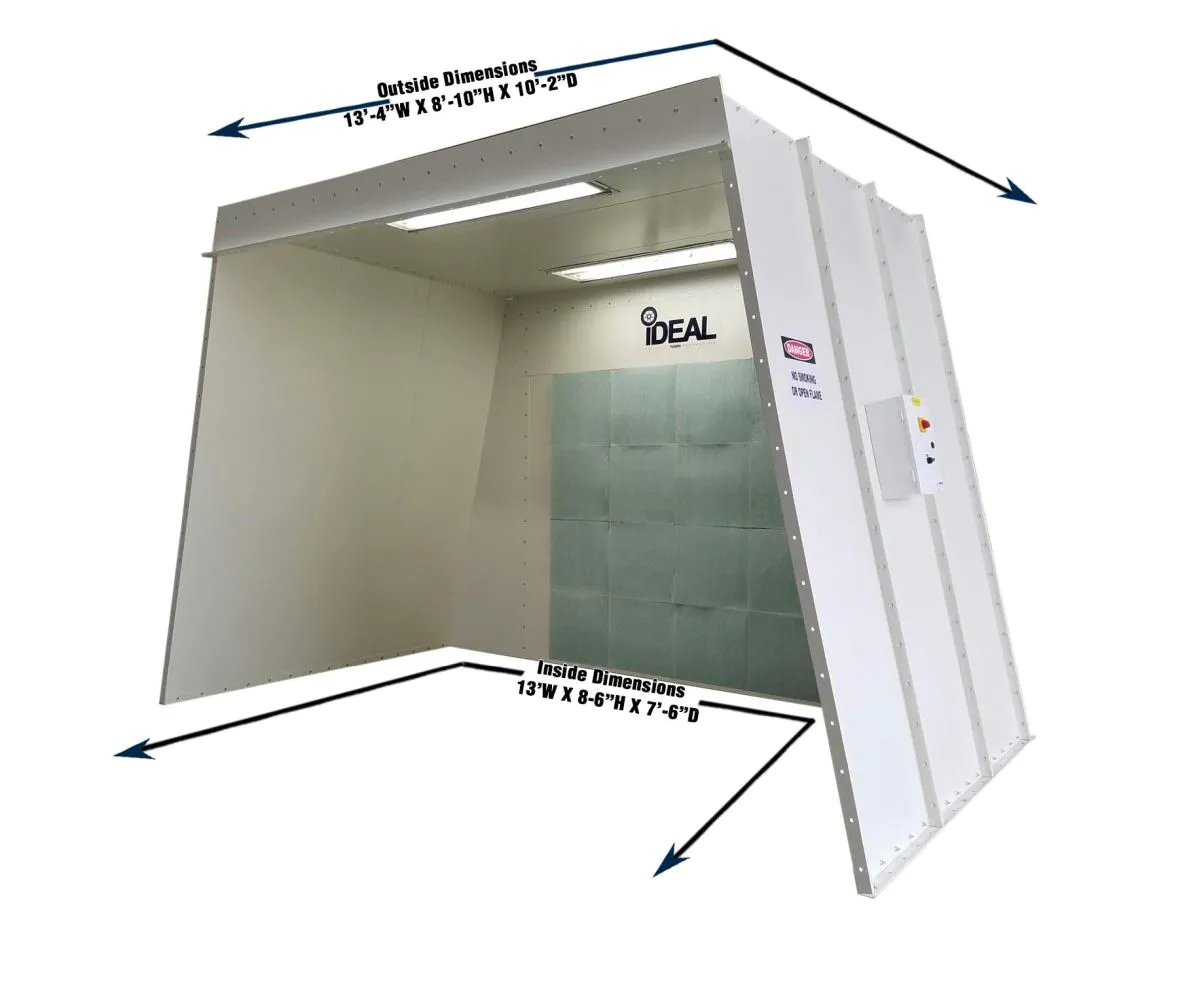

Inside Dimensions: 13'W x 8'6"H x 7'6" D
Outside Dimensions: 13'4"W x 8'10"H x10'2"D
Fan/Motor Type: (1ct) 24" Tube-Axial Fan.
Fan/Motor Electrical: 2HP 230/460VAC 3HP 60Hz
Fan/Motor Rating: Non-Spark, NEMA Rated
Fan/Motor Air Flow: 7,983 CFM @.5 Static PRessure
Light Fixtures: (2ct) 48" 32W T8 / 4 Bulb Light Fixtures
Classification: UL and ETL Listed CLS1, Div 2,- Groups A, B, C and D
Lamps: (8ct) T-8 Florescent 32W, 5000K, 48" Long

Additional Information

Equipment is shipped Via LTL carrier of a 48' Semi Truck, Things to be noted as your making your purchase:

the customer is responsible for unloading the truck as the driver will not unload this for you.
Lift gate can not facilitate these items so it will not be available.
The customer is responsible for providing a forklift or means of removing your items or skids from the truck.
If there are issues with facilitating a lift or skid steer we can have this delivered to the nearest terminal at your request and you can pick up at the terminal with a trailer.
You are responsible for contacting the the freight company to set up a delivery schedule as we do not know your hours or schedule. We can provide the freight companies contact information if requested.
We are not responsible for additional freight charges for re-delivery if the customer is not available when the truck arrives

When your item ships allow for 3-14 days of shipping time depending on your location.

Other Resources

iDEAL PSB-AFOFB1388-AK Open Front Paint Spray Booth Brochure (.pdf)

iDEAL PSB-AFOFB1388-AK Open Front Paint Spray Booth Manual (.pdf)

iDEAL PSB-AFOFB1388-AK Open Front Paint Spray Booth Assembly (.pdf)

iDEAL PSB-AFOFB1388-AK Open Front Paint Spray Booth Parts (.pdf)
