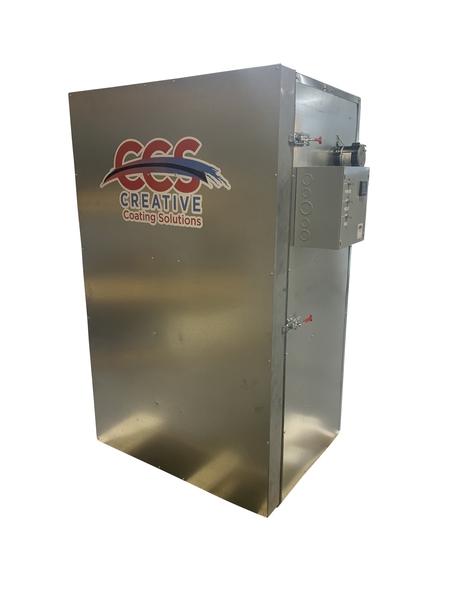

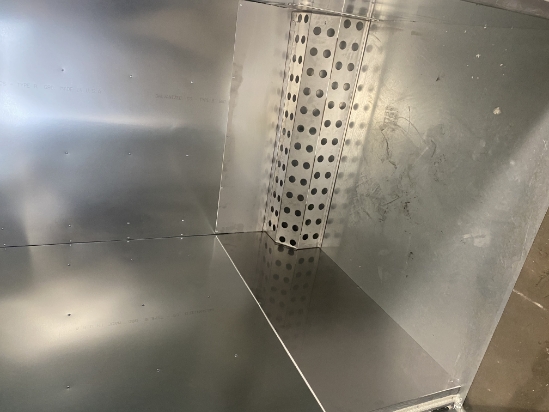

4' X 4' X 6' Gas Powder Coat Curing Oven

There are no reviews yet Write a review
Price: $8,060.00
    The product is in stock Availability: In Stock
    Usually ships In 2-4 Business Days
    Size:


    Update price
    Quantity:

    About This Item

    Specifications:

    • Natural Gas Bach Oven
    • G90 Galvanized Sheet Metal Inside and Out
    • 12 Gauge Plate Steel Floor

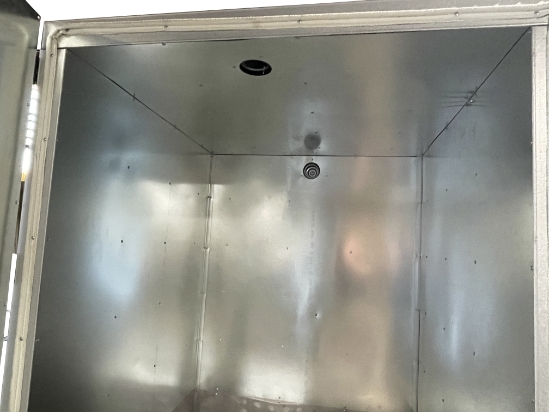

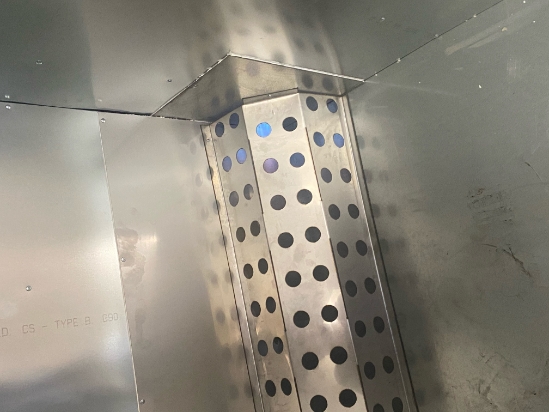

    • Stainless Steel Liner and Shroud Around Burner
    • Flame Retardant 1300F Rockwool Installation
    • Ceramic Fiber Blanket Behind The Stainless Liner
    • 120v Single Phase
    • 13A Draw

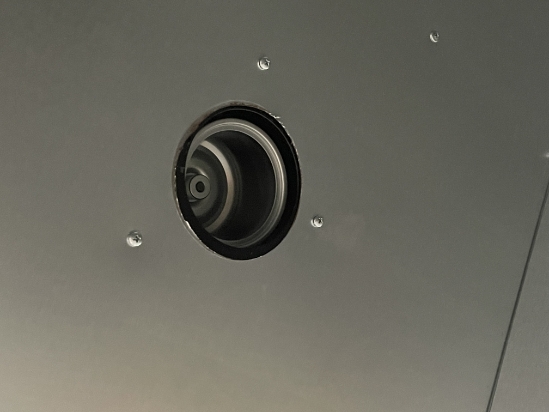

    • 3 1/2" Exhaust
    • 50,000 - 275.000 BTU Burner preset to the size of the oven (this needs installed and tuned by a licensed mechanical contractor)
    • OD - 4'w X 4'd X 6't
    • ID - 3’4”w x 3’8”d x 5’8”t
    • Natural Gas or Propane

    Our ovens are integrated with all safety Interlocks and requirements Which Tite Them As A Class A Oven:

    • High and Low Gas Pressure Safety Interlocks
    • Circulation Safety Interlocks
    • Exhaust Safety Interlocks

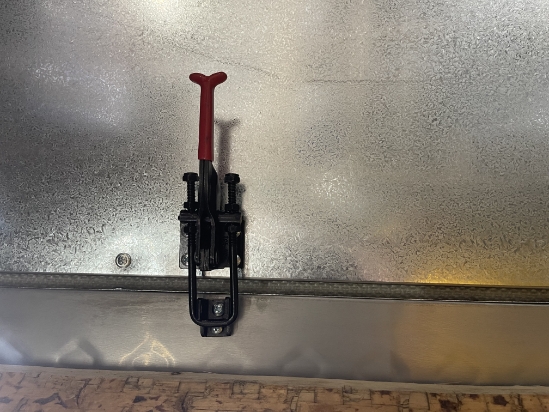

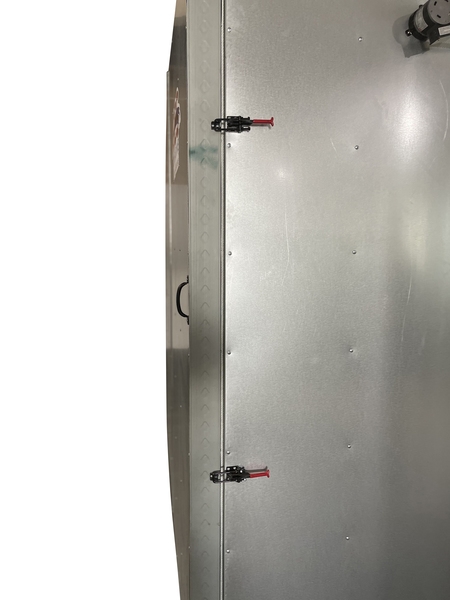

    • Explosion Compliant Door Latches
    • Airflow Switch Safety Interlock

    Additional Options:

    • Custom Built Roll In Rack
    • Shelf Kit (includes 2 shelves and 4 brackets)

    Shipping:

    • Liftgate available for units 4' x 4' x 7'and smaller only ($150.00)
    • Additional fee for a residential delivery ($150.00)


    Other Items To Consider:

    Powder Coating: The complete Finishers Handbook

    https://www.creativecoatingsol...



    Our 4' x 4' x 6' gas fired curing ovens meet all requirements to make them a Class A oven. We build our gas ovens with the user in mind as a quality, professional and cost effective addition to your curing process. This oven is built and tuned in house ready to to be piped in and tuned by your mechanical contractor.
