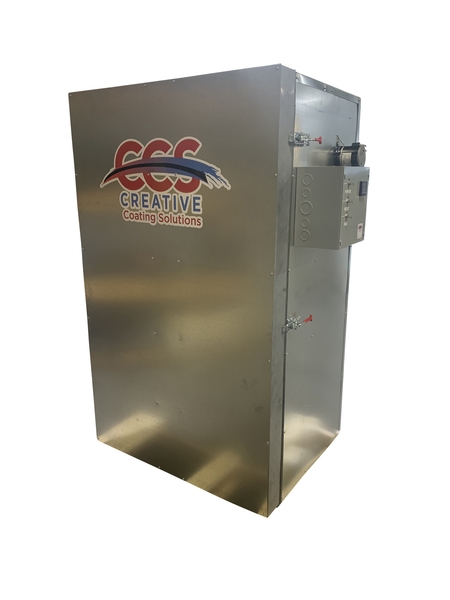

4’ x 4’ x 5’ Electric Powder Coat Oven

The 4' x 4' x 5' Electric Powder Coat Oven is built with a welded square tube frame and double-wall G90 galvanized steel construction for durability and heat retention. Insulated with 6 lb density mineral wool rated to 2100°F, the oven operates at temperatures up to 500°F for powder coating and other heat-curing applications.

A heavy-duty 12-gauge steel floor provides a stable surface for carts and equipment while remaining low enough for easy loading and unloading. The easy-to-use temperature controller displays both the set temperature and the actual oven temperature for accurate monitoring during operation.

Features
Welded square tube and steel track framework
Double-wall G90 galvanized steel construction
Maximum operating temperature: 500°F
6 lb density mineral wool insulation rated to 2100°F
Heavy-duty 12-gauge steel floor
Fiberglass tadpole gasket door seal
Easy-to-read temperature controller
Displays both set and actual temperature
Circulation fan included
Element covers included
Single-phase 240V operation
4-wire electrical hookup (2 hot legs, neutral, and ground)

Specifications
Outside Dimensions: 4' W × 4' D × 5' H
Inside Working Area: 3'4" W × 3'8" D × 4'8" H
Power: 240V, Single Phase, 39A
Maximum Temperature: 500°F
Insulation: 6 lb Density Mineral Wool
Floor: 12-Gauge Steel

• Comes with a circulation Fan
• Comes with Element Covers
