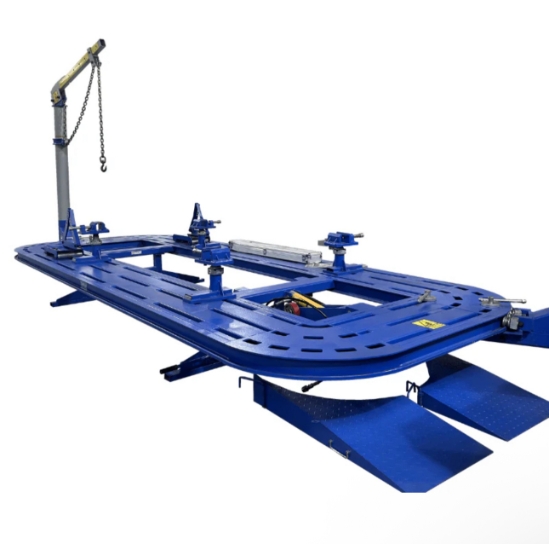

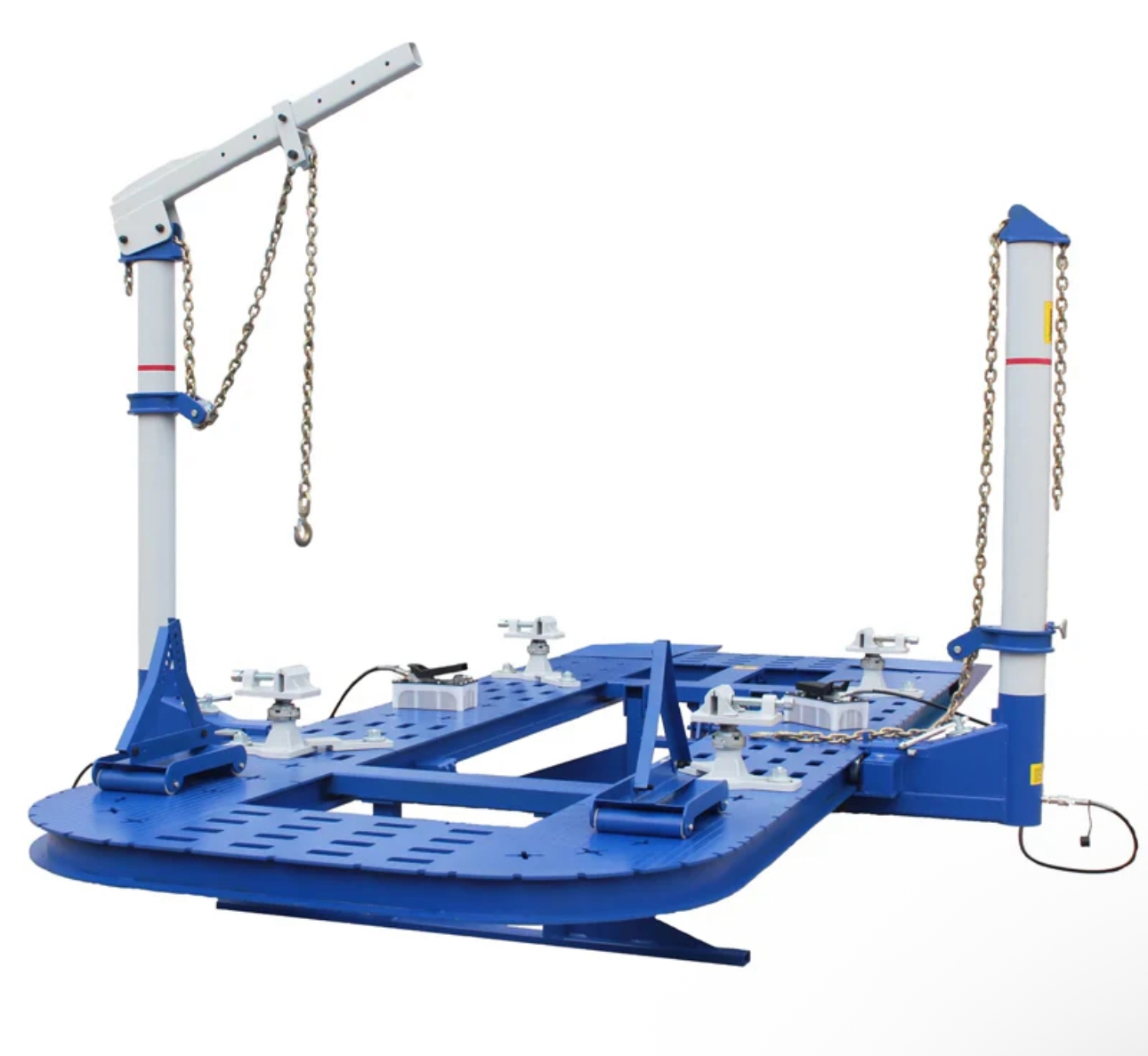

Steel Plate Deck Frame Rack Machine FR-77-20

Steel Plate Deck Frame Rack Machine

The FR-77-20 Steel Plate Deck Frame Rack Machine - a Top Of The Line frame repair solution designed for professionals who require maximum durability , precision and versatility in their their automotive repair operations. Built with a heavy-duty steel plate deck and capability of handling up to 7,700 lbs.. This frame rack is perfect for servicing both full-frame and Uni-Body type of vehicles

This frame machines features a durable, heavy duty steel plate deck ensuring a solid and stable platform for your frame repair services. This robust constructed rack is built to withstand the rigors of daily and consistent use. This makes this equipment an ideal choice for a busy workshop and your automotive repair facility. The decks hydraulic lift operation allows for easy drive on/ drive off capabilities simplifying the process of loading and positioning the vehicle for repair.

Capabilities:

With a lifting capacity of 7,70 0 lbs. the FR-77-20 can handle a wide range of vehicles from small cars to larger trucks and SUV's. The frame rack is equipped two 10 ton pulling towers featuring telescoping tower heads and adjustable tower collars that provide powerful and precise pulling capabilities. The overhead boom pull tower extension adds further versatility, allowing for complex repairs that require multiple angles to pull.

One stand-out feature of FR-77-20 rack is its clear floor design that offers 360-degree pulling capability. This allows you to work on vehicles from any angle providing unmatched flexibility and making it easier to achieve the perfect repair. The frame rack also include multiple tie-down, 'precision cut' hole locations, ensuring that you can securely anchor vehicles of various shapes and sizes during the repair process.

The equipment is equipped with quick disconnect hydraulic fittings and two high-quality air/hydraulic pumps with pressure gauges ensuring consistent and reliable performance operating at 10,000 PSI hydraulic pressure. The system provides the power needed to handle the most demanding frame straightening tasks.

Features:

• Durable, Heavy duty tubular desk construction
• Designed to service full-frame or Uni-body type of vehicles

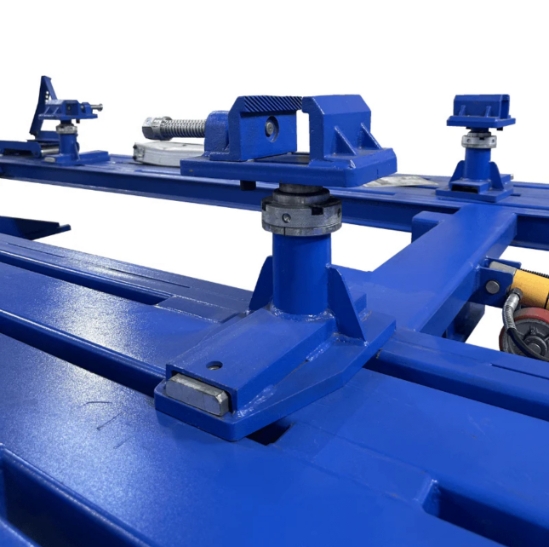

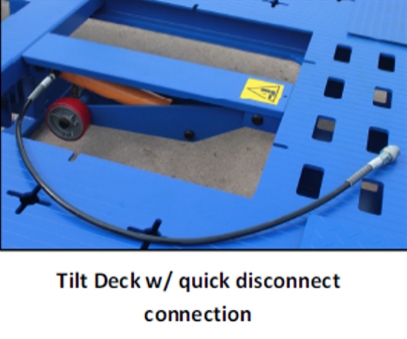

• Hydraulic tilt deck, with adjustable height , pinch weld assemblies
• Multiple tie down "Precision Cut' hole locations

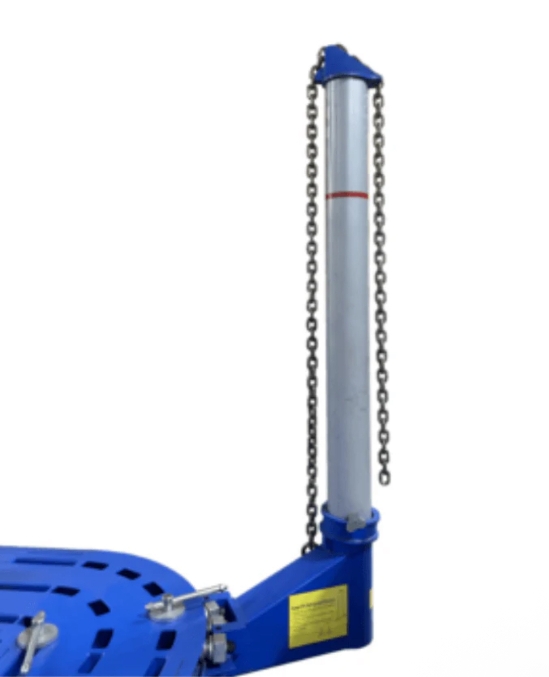

• two 10 ton pulling towers with telescoping tower heads
• Adjustable tower collars

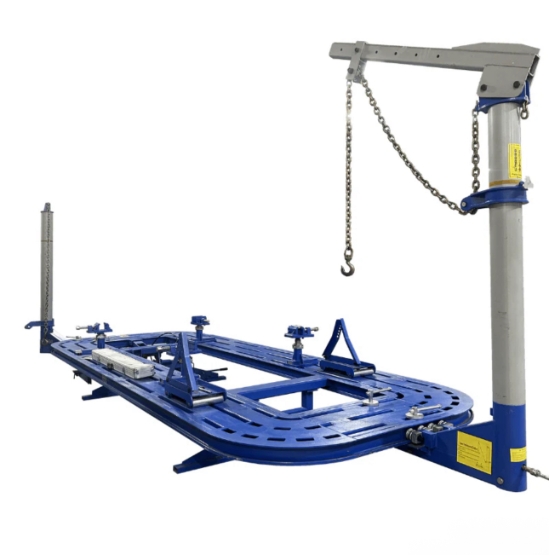

• Overhead boom pull tower extension
• Quick disconnect hydraulic fittings and hose connections
• two 10' pulling chains with hooks
• two high quality air/hydraulic pumps with pressure gauges
• Durable, heavy duty construction with a powder coated finish

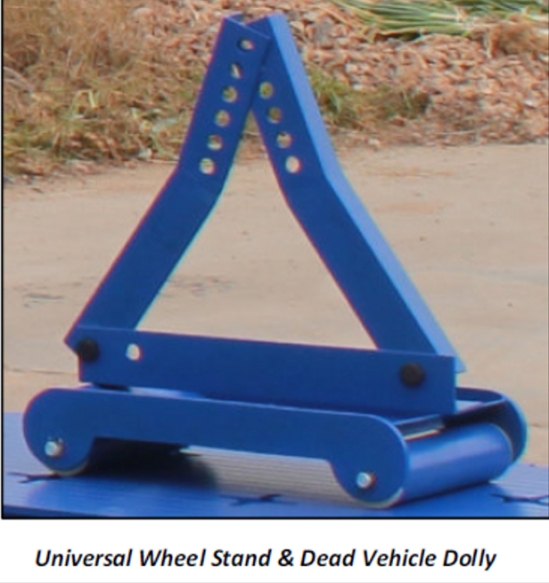

• Universal wheel stand and dead vehicle dolly included
• Drive on ramps included


Specifications:

• Deck Design: Steel Plate
• Bench Length: 20'
• Bench Width: 82.68
• Bench Weight: 19.70
• Hydraulic Pressure: 10,000 PSI
• Post Max. Tension: 10 Ton
• Post Working Range: 360°
• Max Lifting Weight: 7,700 lbs.
• Pneumatic pressure range: 115 PSI
• Ship Weight: 5953 lbs.
