Steel Platform Frame Straightener

Steel Platform Frame Straightener

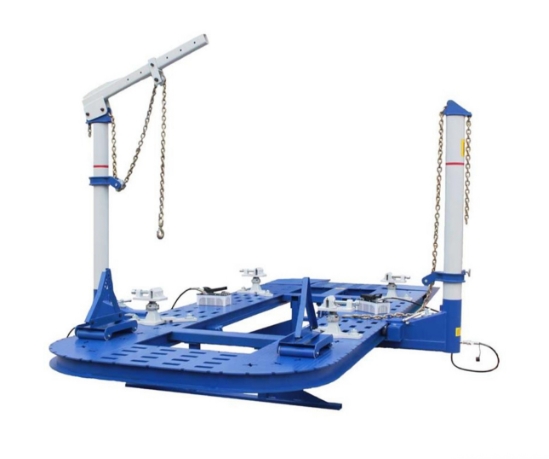

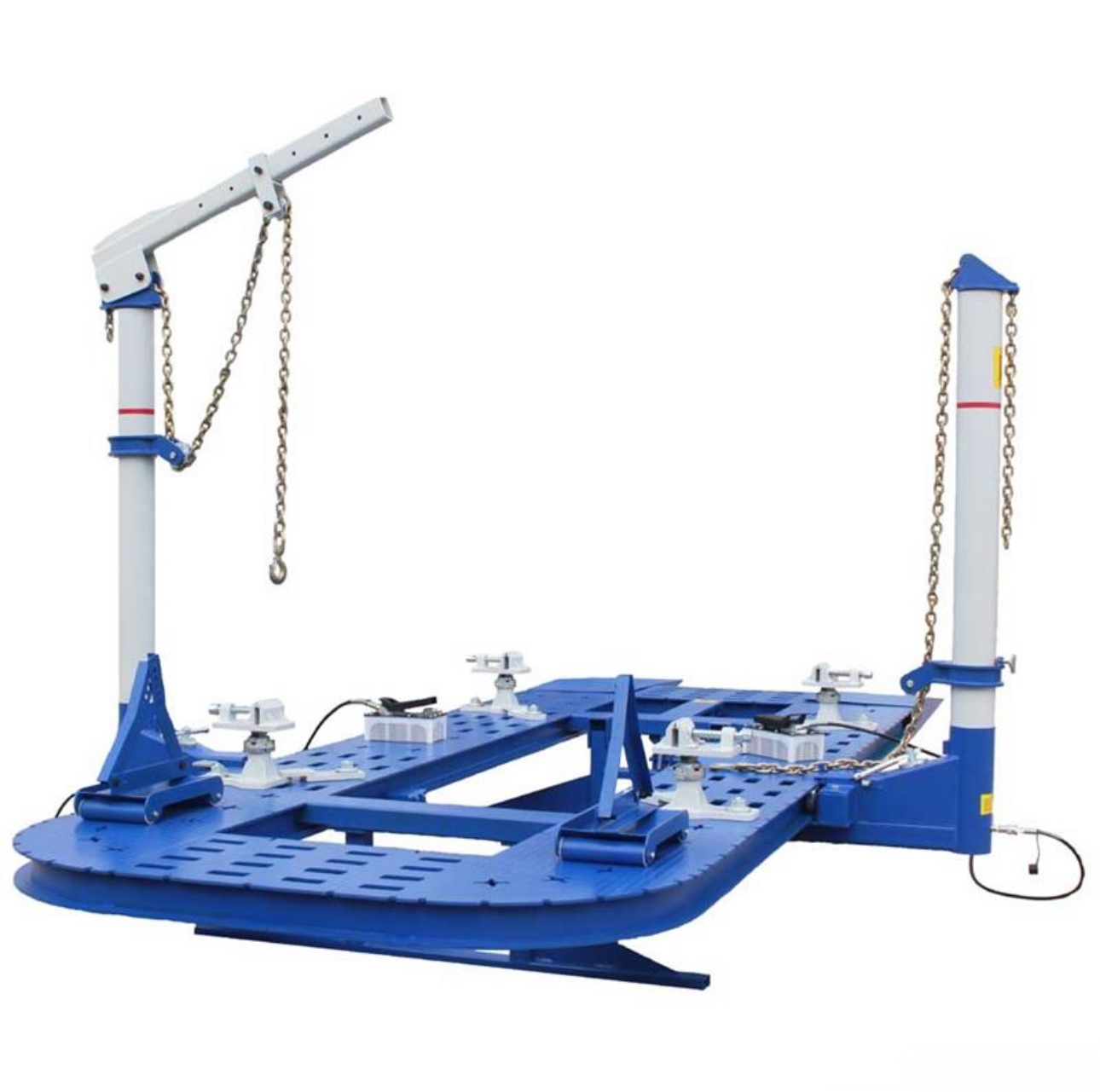

This 18' Tilt Deck / Steel Plate Platform Frame Rack Machine is a high quality, durable frame straightening machines designed to accommodate Full-Frame and Uni-Body type of vehicles with 7,700 lbs. lifting capacity. The twin 10-Ton Pulling Towers incorporate 'Clear-Floor' 360°pulling capability with multiple, Precision cut Tie Down Hole locations and A Universal Anchoring System with adjustable height pinch weld clamping assemblies. The FR-77 series also comes standard with Pull Chains & Hooks, Overhead Boom / Pull Tower Extension, Universal Wheel Stands & Vehicle Dollies.

THIS IS A SPECIAL ORDER ITEM - LEAD TIME IS 12 WEEKS

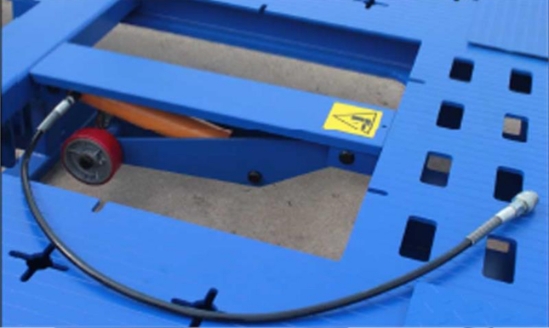

Hydraulic Tilt Deck Operation with 7,700 lbs. Capacity Quick Disconnect Hydraulic Fitting and Hose Connections

Clear Floor 360 Degree Pulling Capability with Universal Anchoring System

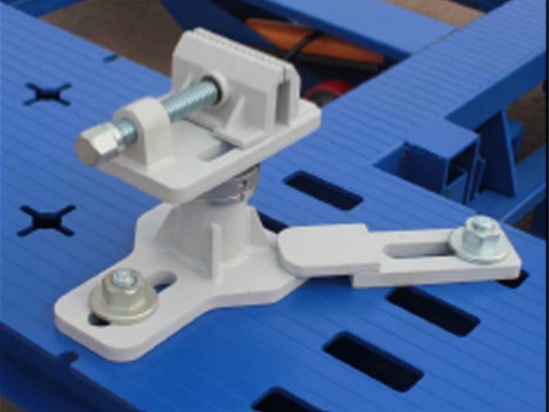

Clamp Assemblies (4) Adjustable Height Pinch Weld Clamp Assemblies

Features:

• Durable heavy duty plate steel deck construction
• Designed to service Full-Frame or Uni-Body type of vehicles
• Hydraulic tilt deck operations with 7,700 lbs. capacity
• Clear floor, 360 degree pulling capacity
• Universal anchoring system with adjustable height pinch weld assemblies
• Multi Tie-Down 'Precision Cut' hole locations

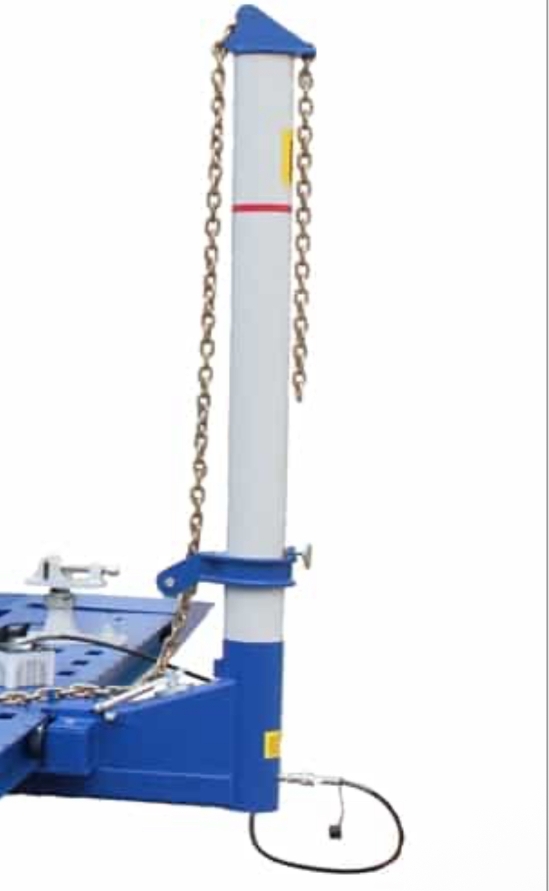

• (2ct)10 ton pulling towers with telescoping tower heads
• Adjustable tower collars

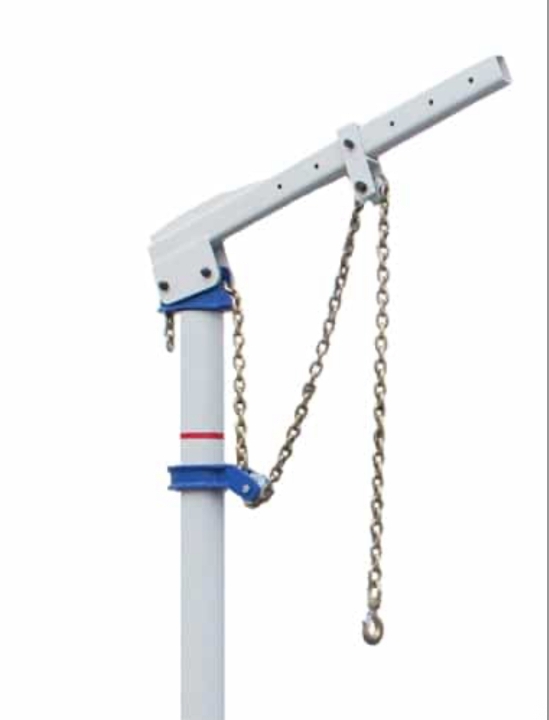

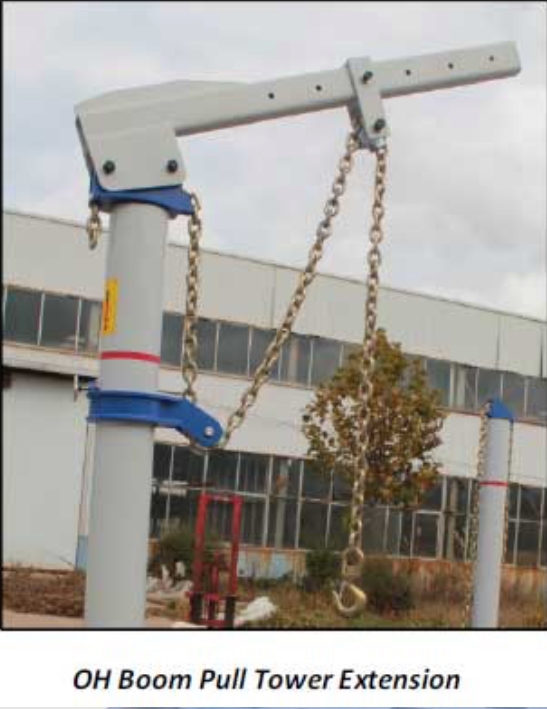

• Overhead boom pull tower extension
• Quick disconnect hydrauic fittings and hose connection
• (2ct) 10' pulling chains with hooks
• (2ct) High quality air/hydraulic pumps with pressure gauges

Accessories Included:

• (4ct) Adjustable height pinch weld clamp assemblies
• (2ct) Pull towers with telescoping tower heads
• (2ct) Pull chains and hooks
• (2ct) Drive-on ramps
• (2ct) High quality air/hydraulic pumps with pressure gauge
• Quick disconnect hydraulic fitting and hose connections

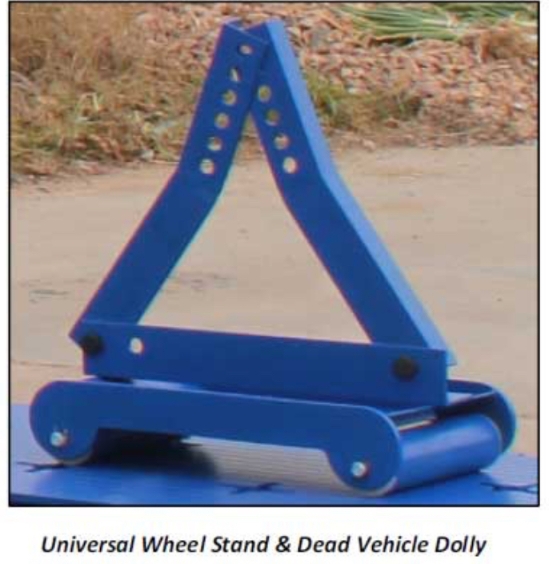

• Universal wheel stands and dead vehicle dolly

Specifications:

• Deck Design: Steel Plate
• Lifting Capacity: 7,700 LBS
• Deck Length: 18' (5500mm)
• Deck Width: 82.6" (2100mm)
• Deck Height: 19.7" (500mm)
• Pull Force Per Toer: 10-Ton (100 KN)
• Hydraulic Pressure: 10,000 PSI (70 MPa)
• Post Working Range: 360°
• Required Air Pressure: 100-120PSI (0.6 - 0.8 MPa)
• Shipping Weight: 5,071 lbs.
