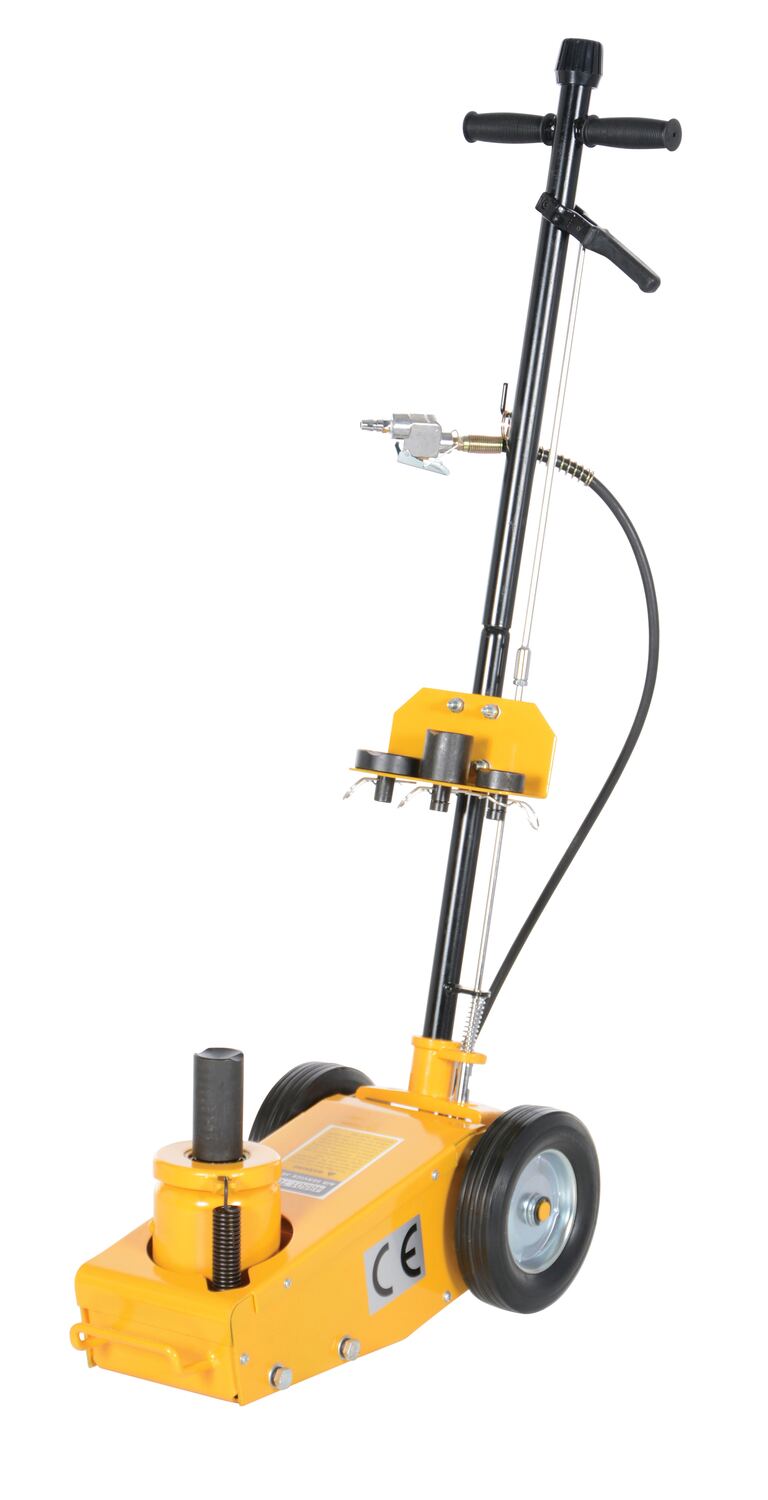

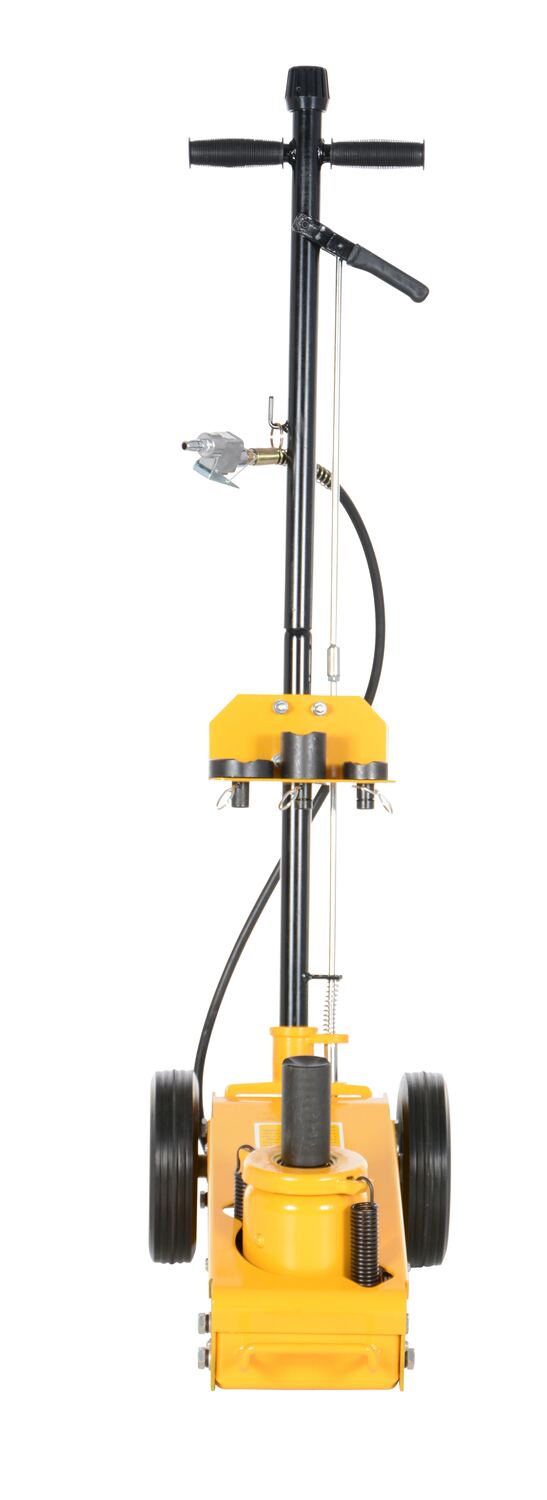

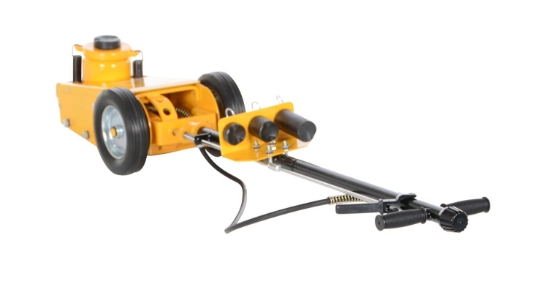

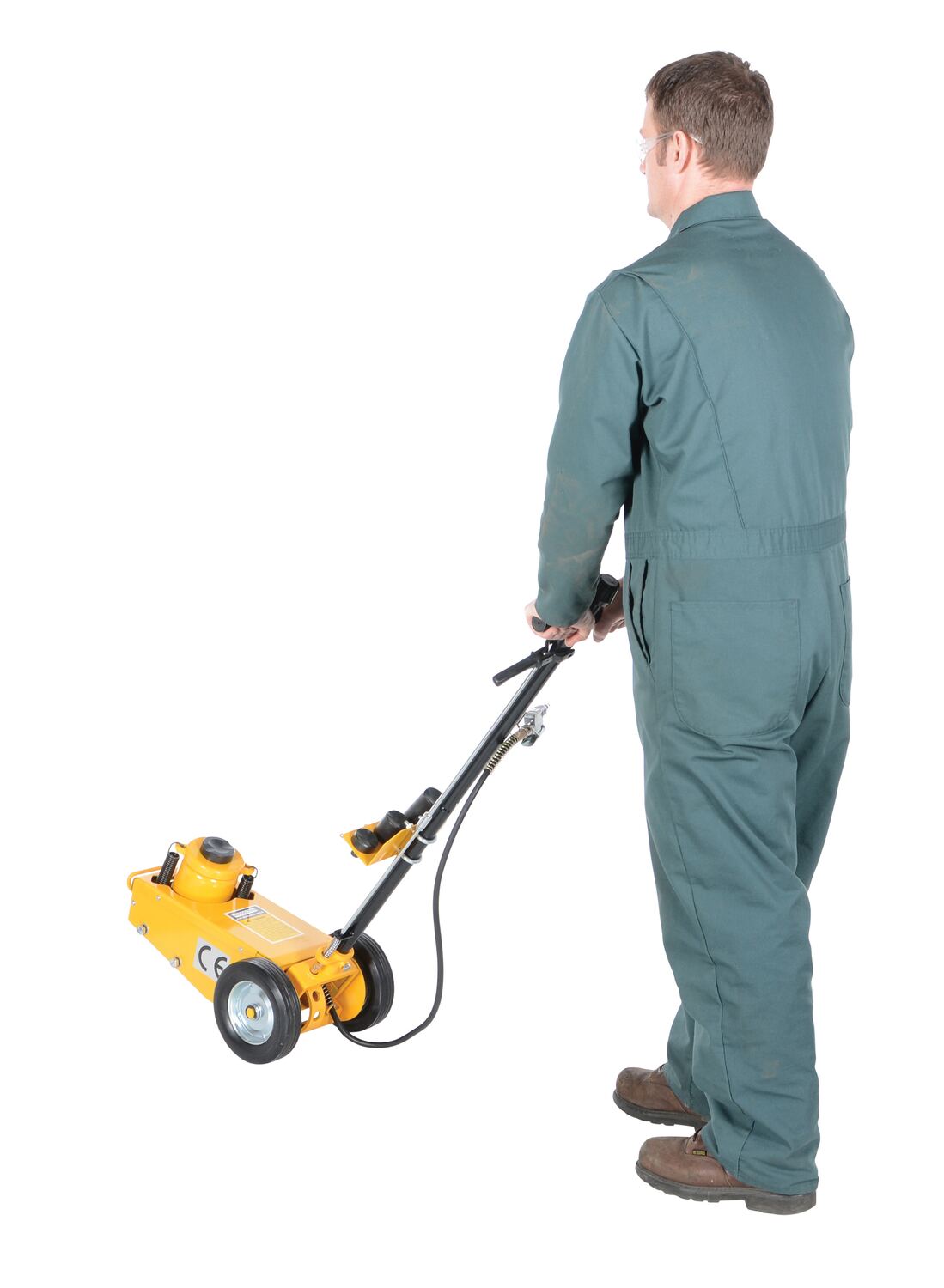

Air Powered Fork Truck Jack - 44,000 lb Capacity

The air-assist motor connects to a standard shop air compressor via the coupler hookup. Compressed air quickly raises the saddle to the lift point, then lifts the load to the desired height. The air regulator control lever on the handle provides precise speed control during raising and lowering.

The jack lifts from a minimum height of 8-1/2" to a maximum of 18-1/4", providing 9-3/4" of total travel. This range accommodates most fork truck and heavy equipment lifting and tire-change operations. The low 8-1/2" minimum height allows the jack to slide under equipment with limited ground clearance.

The jack uses a standard coupler hookup compatible with most shop air compressors. A compressor capable of sustaining adequate CFM at the operating pressure is required. The air regulator control lever on the handle lets you control the air flow. Check the jack specifications for exact PSI requirements.

The pressure relief valve located on top of the handle provides metered control for precise height adjustment. Open the valve slightly to lower the load slowly and incrementally. Close it to hold the current height. This allows fine-tuning the lift position during maintenance and tire change operations.

The Steel Air Powered Fork Truck Jack with 44,000 lb capacity is priced at $873.00 (SKU AIR-J). Ships in stock from Creative Coating Solutions. Lift range 8-1/2" to 18-1/4", air-assist motor, standard compressor hookup, and pressure relief valve for metered control.
