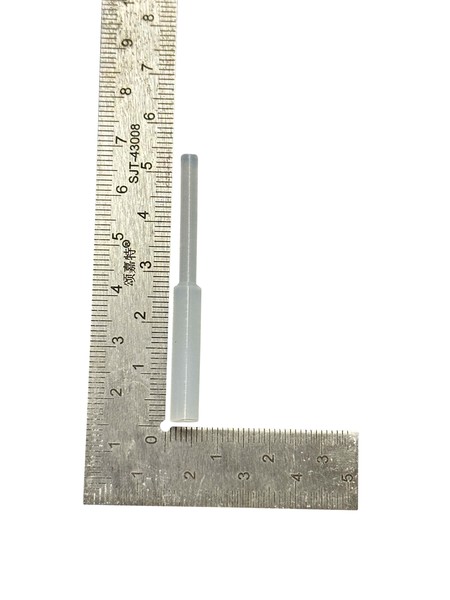

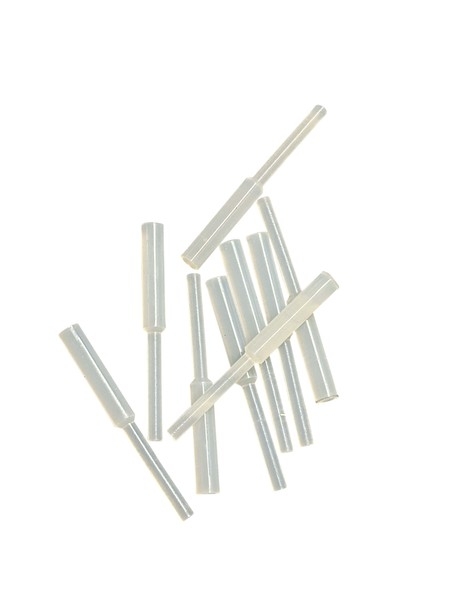

Silicone pull plug for .162" diameter holes with a long 1.000" body. Clear color. Dimensions A-.162, B-.625, C-1.000, D-.130. 500 count per bag, rated to 600F for deep-hole masking in powder coating.
Both fit .162" holes but the SPP30 has a 1.000" body length versus .581" on the SPP22. The SPP30 is for deep holes or through-holes where you need the plug to extend further to fully seal the passage. The thicker .130" flange adds extra surface sealing.
Use the SPP30 when your .162" hole passes through thick material over .5" or when powder can enter from the back side of the part. The 1.000" body blocks the full depth of the hole, while the shorter SPP22 only seals the first .581" of depth.
Clear distinguishes the long-body SPP30 from the short-body light blue SPP22, even though both fit .162" holes. Different colors for the same hole diameter prevent operators from accidentally using the short plug where a long plug is needed.
Yes, as long as the blind hole is at least 1.000" deep. If the hole is shallower than 1.000", the plug will not seat fully and the head will stand proud of the surface. For shallow .162" blind holes, use the shorter SPP22 instead.
The Pull Plug SPP30 (500ct) for .162" deep holes is priced at $75.21 (SKU SPP30). Ships in stock from Creative Coating Solutions. Clear silicone, 600F rated, 500 reusable plugs per bag. 1.000" body for deep-hole powder coating masking.
