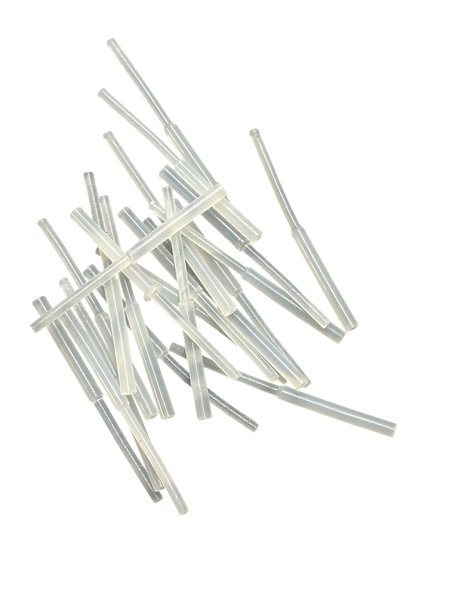

Silicone pull plug for .062" diameter holes in powder coating masking. Clear color for easy identification, with A-.062, B-.375, C-.337, D-.046 dimensions. 500 count per bag, rated to 600F.
The SPP06 fits .062" diameter holes. The tapered body compresses into the hole while the .375" head stays outside for easy pull removal after curing. The .337" body length provides enough depth to seal against powder intrusion during coating.
Clear color identifies the SPP06 as the .062" size in the pull plug lineup. Each size has a unique color so operators can quickly grab the correct plug from a parts bin without measuring. Clear designates the smallest hole size in the range.
Silicone pull plugs typically last 10-20 cure cycles before the material degrades. The SPP06's small size means less thermal stress per cycle. Replace plugs when they no longer grip the hole tightly or show visible cracking or hardening.
A is the hole diameter the plug fits (.062"). B is the head diameter (.375") that sits outside the hole. C is the body length (.337") that inserts into the hole. D is the flange thickness (.046") that seals against the surface around the hole.
The Pull Plug SPP06 (500ct) for .062" holes is priced at $23.79 (SKU Spp06). Ships in stock from Creative Coating Solutions. Clear silicone, rated 600F, with 500 reusable plugs per bag for high-volume production masking jobs in coating shops.
