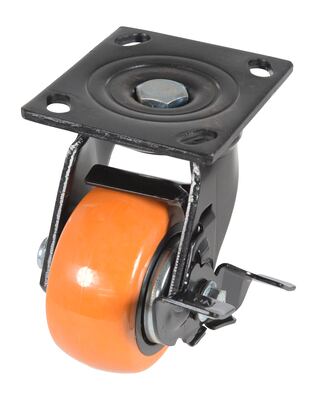

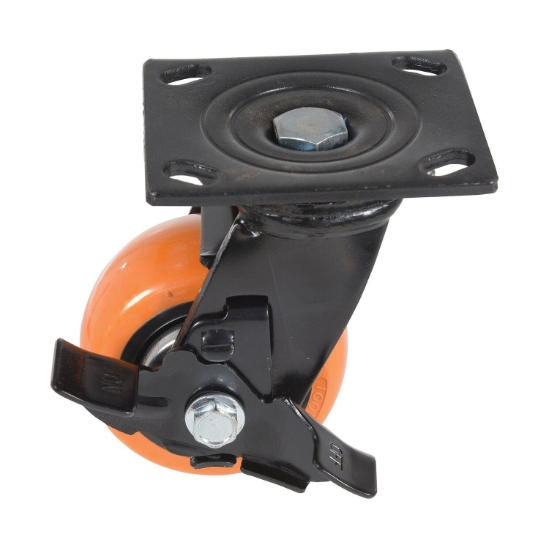

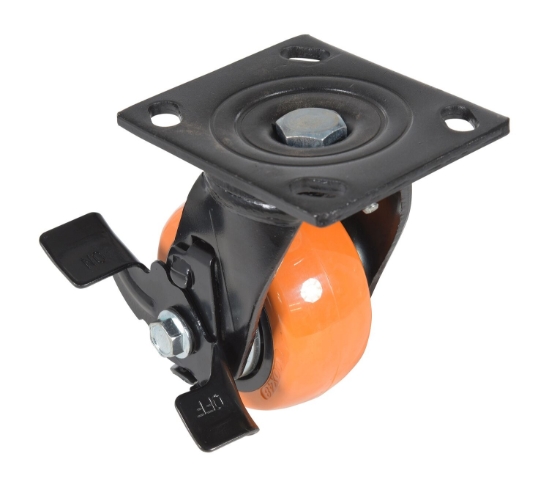

Polyurethane Swivel Brake Caster 4" x 2" - 551 lb

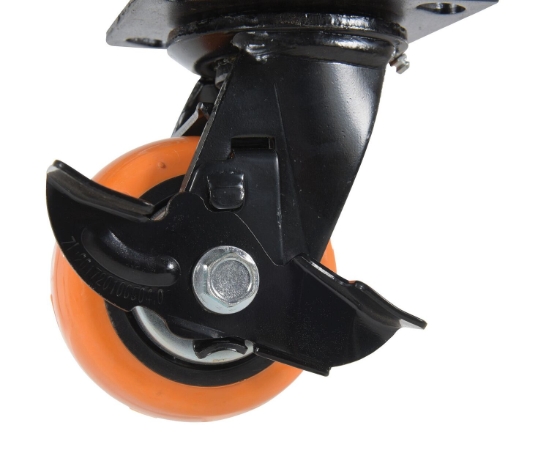

This caster has a wheel brake that locks the wheel from rolling when engaged via the foot pedal. The wheel brake stops movement but allows the swivel to still rotate. For applications requiring both wheel and swivel lock, choose a total brake model instead of a wheel-only brake.

The thread guard is a protective barrier around the swivel bolt that prevents string, wire, plastic wrap, and other debris from wrapping around the swivel stem. In shop environments where packaging materials and wire are present, the thread guard prevents jammed swivel rotation.

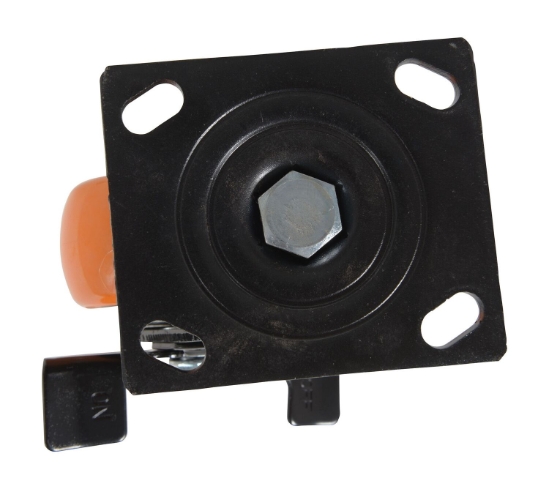

The sealed raceway protects the swivel bearing from dust, powder overspray, and moisture. In powder coating shops, airborne powder can infiltrate open raceways and cause stiff, gritty swivel rotation. A sealed raceway maintains smooth turning for the life of the caster without periodic cleaning.

Yes. The polyurethane tread is non-marking and will not scuff, scratch, or stain epoxy-coated, sealed concrete, or painted floor surfaces. This makes it the right choice for shops that invested in floor coatings and want to maintain the floor appearance while moving heavy carts and equipment.

The Polyurethane Swivel with Brake Caster 4" x 2" at 551 lb capacity is priced at $17.17 (SKU CST-E6-4X2PUP-SWB). Ships in stock from Creative Coating Solutions. Includes non-marking tread, zinc plated fork, thread guard, and sealed raceway.
