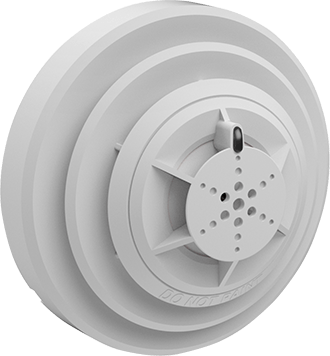

The PAD300-PHD is an analog addressable photoelectric smoke and heat detector designed for use with fire alarm control panels that utilize the Potter Addressable Device (PAD) protocol. It combines photoelectric smoke detection with selectable rate-of-rise and fixed-temperature heat detection for reliable fire protection. The detector features drift compensation, dirty detector warning, DIP switch addressing, and compatibility with PAD300 series detector bases.
Key Features:Photoelectric smoke detection compliant with UL 268 7th Edition.Selectable rate-of-rise and/or fixed-temperature heat detection (135°F).Smoke sensitivity range of 1.1% to 3.5% per foot.Drift compensation with built-in dirty detector warning.Simple DIP switch addressing with no programming tool required.LED alarm indicator and magnetic test switch.Compatible with PAD300 series detector bases.Ambient operating temperature: 32°F to 115°F.UUKL listed for smoke control applications.Backed by a 5-year warranty.
Additional Information:Compatible with fire alarm control panels using the Potter Addressable Device (PAD) protocol.Replacement parts are available.
The PAD300-PHD combines photoelectric smoke detection with a thermistor-based heat detector. The heat sensor supports both rate-of-rise and fixed temperature (135F) modes. Smoke sensitivity is adjustable from 1.1 to 3.5% obscuration per foot via the control panel.
Yes. The PAD300-PHD is UL listed for smoke detection performance and UUKL listed for smoke control applications. It complies with UL 268 7th Edition standards. The detector includes UL listed smoke calibration and sensitivity verification built into the unit.
The detector uses DIP switches on the rear for address setting. No special programming tools are required. The address is set manually and the detector communicates its sensitivity level and status back to the fire alarm control panel over a digital communication path.
The PAD300-PHD is compatible with any fire alarm control panel that uses the Potter Addressable Device (PAD) protocol. It communicates over a digital path with total polling speed under five seconds. The detector twists onto any PAD300 series detector base.
The PAD300-PHD Photoelectric Smoke/Heat Detector is priced at $85.00. It ships in stock from Creative Coating Solutions. Includes the detector with LED indicator, magnetic test switch, DIP switch addressing, drift compensation, and 5-year warranty.
