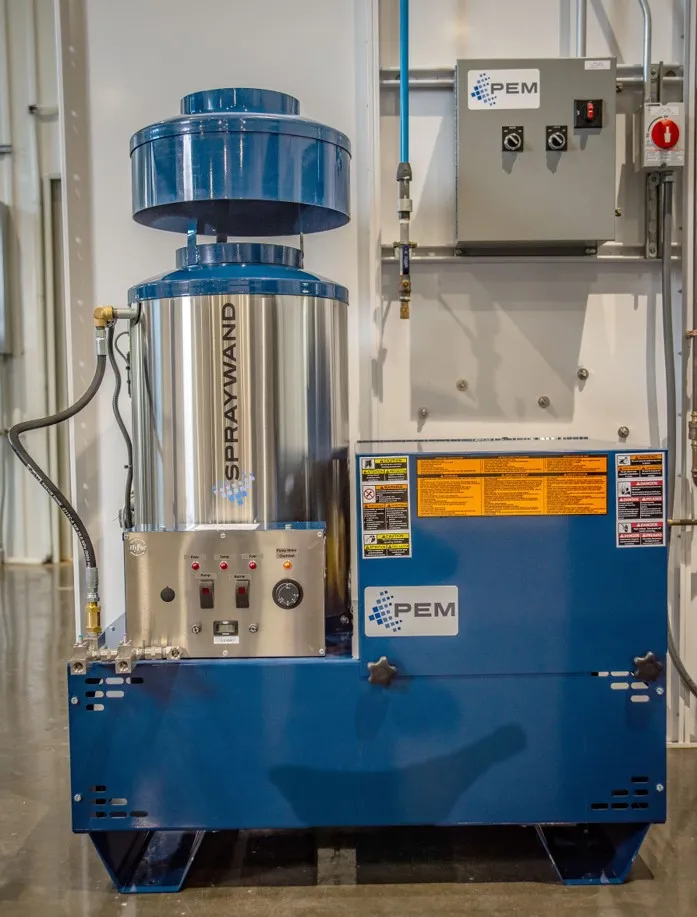

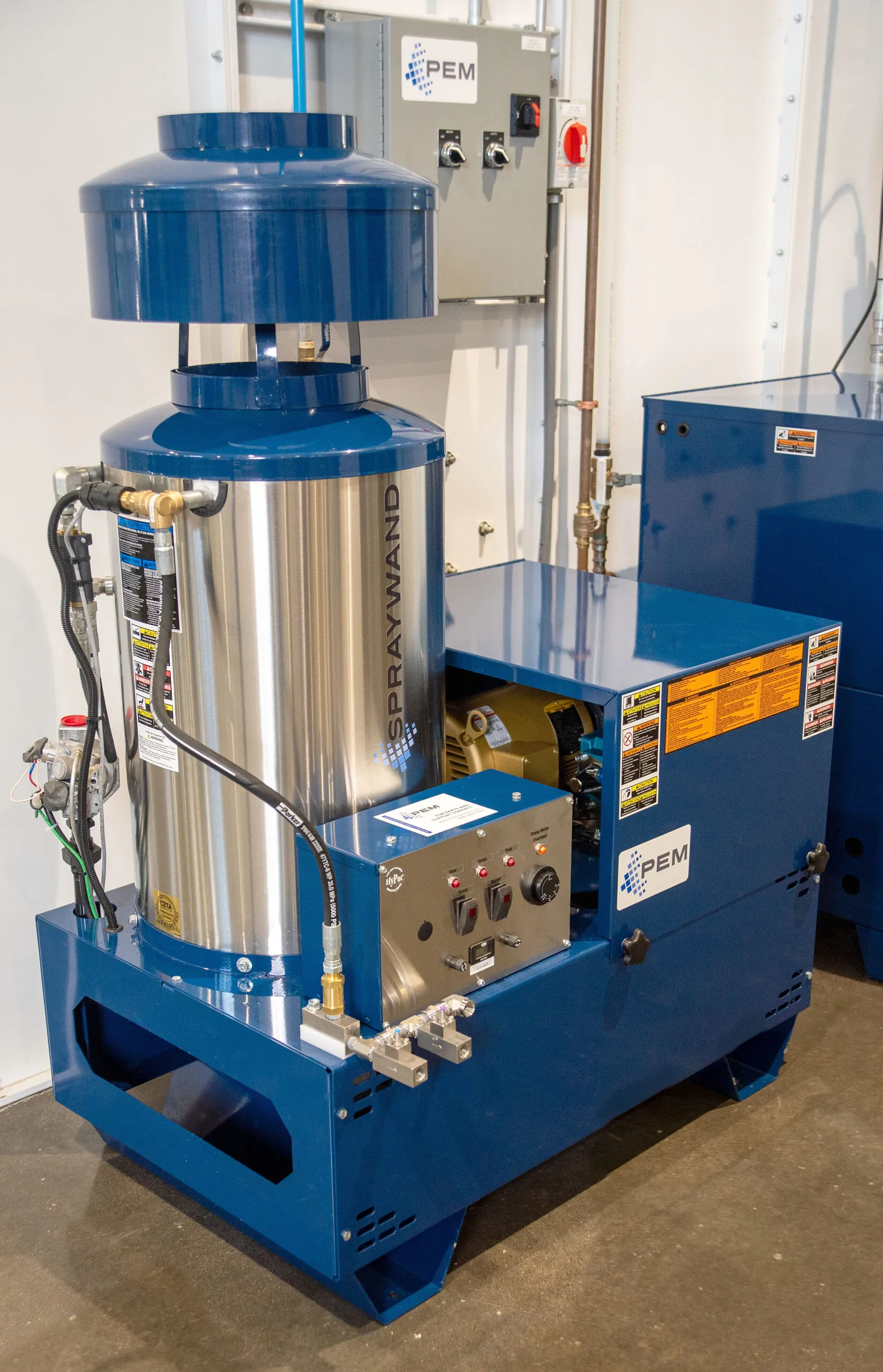

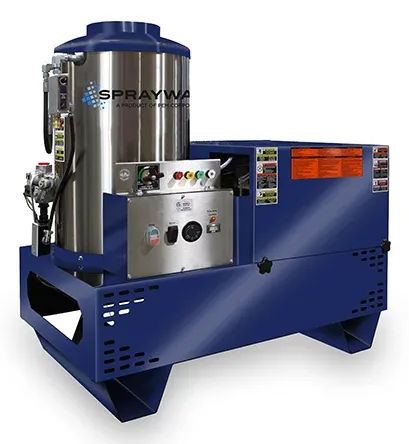

P-500 Manual Pretreatment Application System

The P-500 Manual Pretreatment Application System is built with the same high-quality components and features as the P-300 while offering a more compact design. It delivers pretreatment chemicals through downstream injection at heated temperatures and high pressure, helping maximize cleaning performance while keeping pump components isolated from chemical exposure.

The system features adjustable wash temperatures, fixed orifice injectors, redundant safety features, and a high-efficiency two-stage coil that maximizes heat transfer. A naturally aspirated burner promotes efficient combustion, while the easy-to-read diagnostic panel simplifies operation and troubleshooting. Its versatile design allows for easy setup across a wide range of pretreatment applications.

Additional features include NEMA motors, CAT pumps, and electronic ignition for dependable performance.

Advantages:

• ETL and CSA Listed
• Fixed Orifice Injectors
• Adjustable Wash Temperatures
• Redundant Safety Features
• Downstream Chemical Injection
• High-Efficiency Two-Stage Coil
• Naturally Aspirated Burner

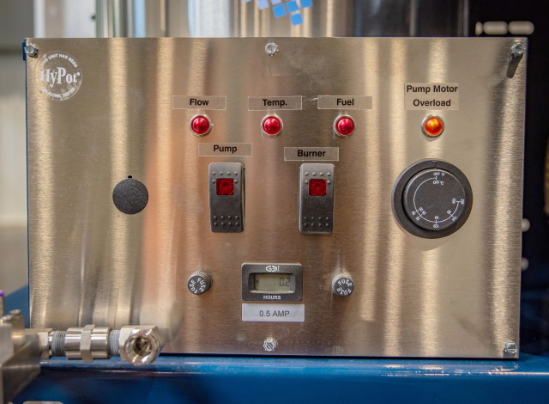

• Easy-to-Read Diagnostic Panel
• Versatile Pretreatment Design

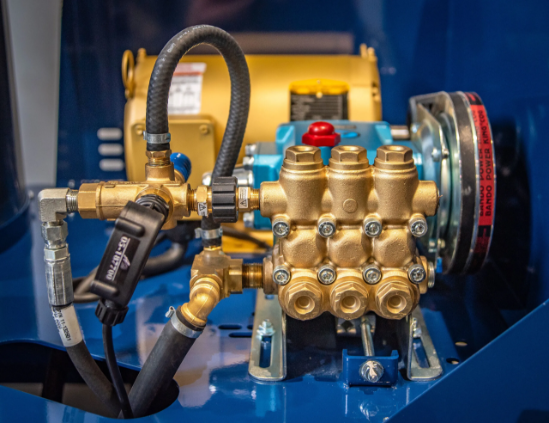

• NEMA Motors and CAT Pumps
• Electronic Ignition

Specifications

• Horsepower: 7.5 HP
• Electrical: 208/230V Single Phase or 208-230/460V Three Phase

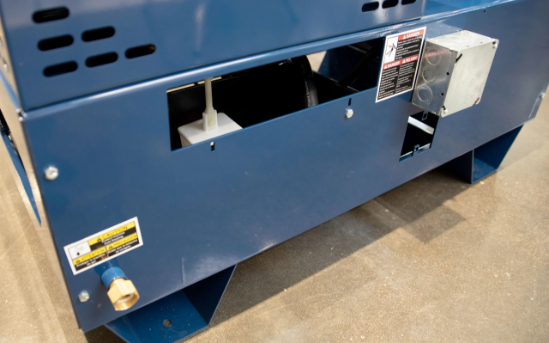

• Connection: 4-Wire Through Junction Box
• Flow Rate: 5 GPM
• Pressure: 1500 PSI Pretreatment / 1500 PSI Rinse
• Burner Input: 415,000 BTU
• Gas Connection: 1" NPT
• Fuel Consumption: Natural Gas 7"-9" WC or 11" WC LP Gas
• Stack Size: 10"
• Water Connection: Standard Garden Hose, Female Swivel
• Nozzles: 15085, 1/4" NPT
• Dimensions: 45" L x 26" W x 48" H
• Weight: 500 lbs Dry / 675 lbs Shipping
• Optional Accessories

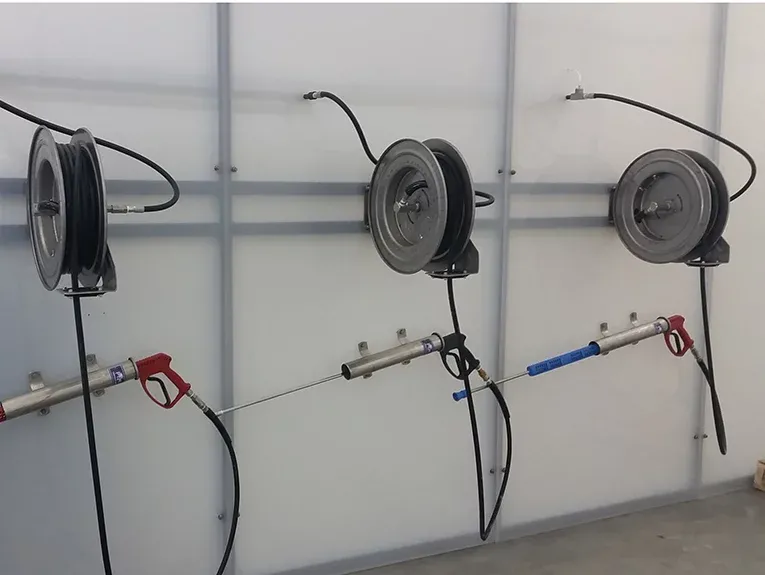

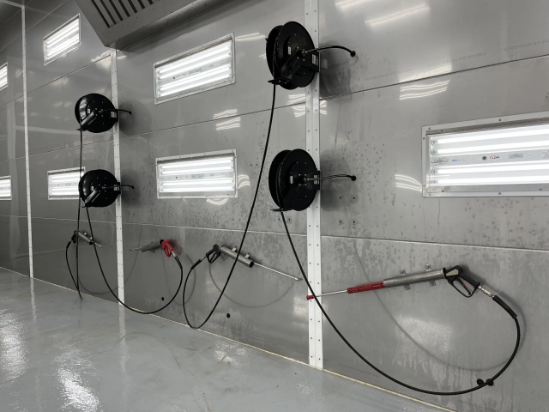

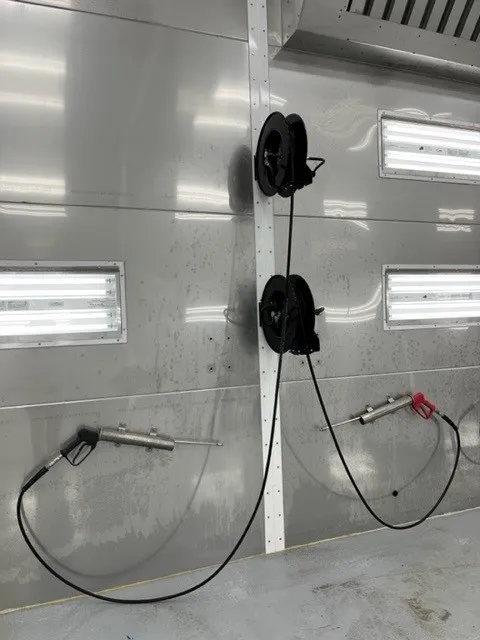

• Hose Reels (50' Hose Maximum, Stainless Steel Fittings)
• 15' Stainless Steel Jumper Hose with Fittings
• Stainless Steel Gun Holders
