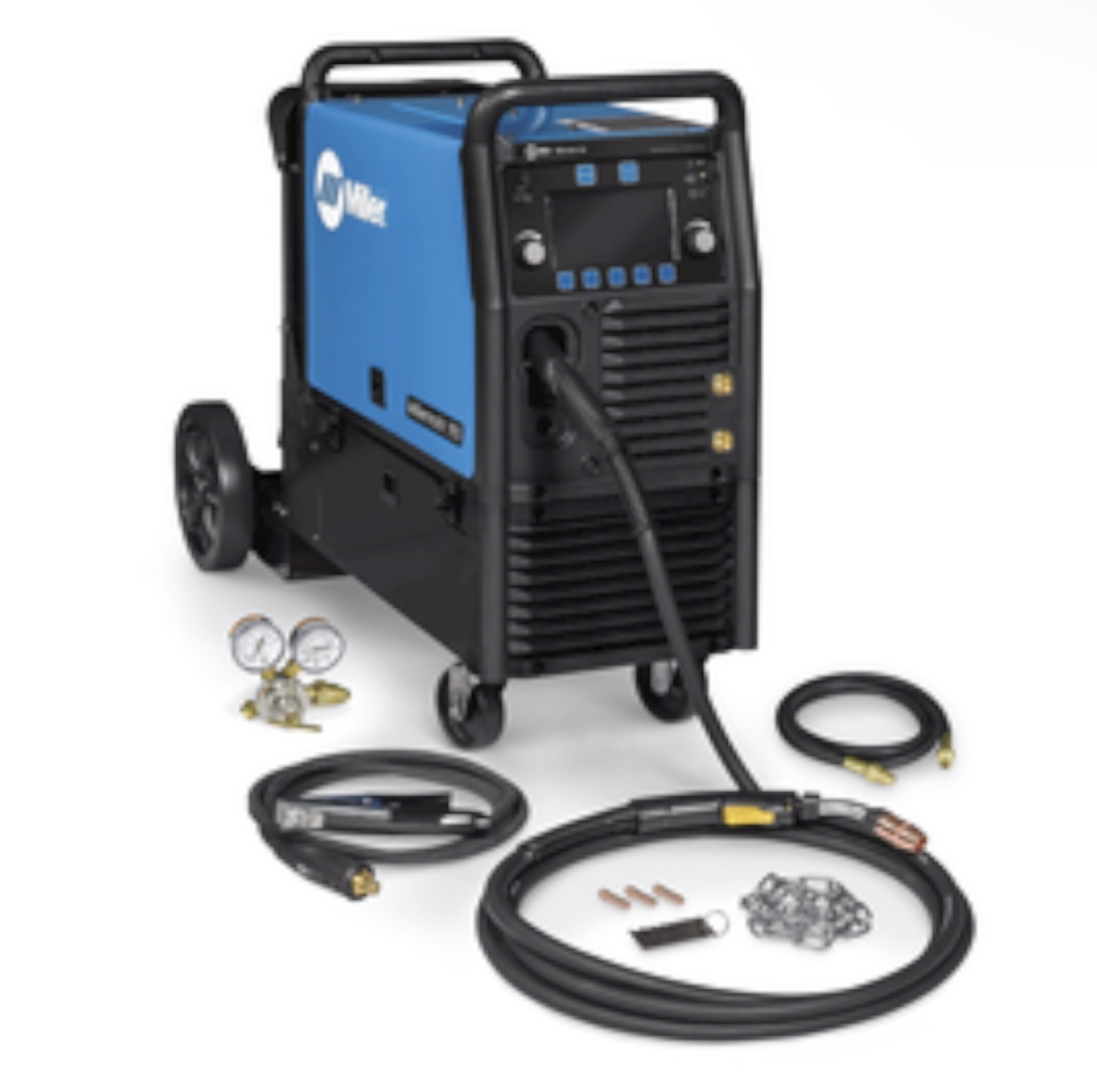

Millermatic 355 With 1 Or 3 Phase Mig Welder

Millermatic 355 With 1 Or 3 Phase Mig Welder (Miller)

Miller’s Millermatic 355 W/EZ-Latch, running gear, 208/240/460/575 V-Easy to use machine increase efficiency and productivity for manufacturing and fabrication users.  7 inch color LCD screen featuring Auto-Set Elite, Electronic Parameter Chart and Trigger Program Select. This is all in one weather connect to any North American input power. Welds  up to 1/2 – aluminum, stainless and mild steel.

Features:

• Easy to understand interface – 7 inch color LCD display ensures proper machine set up and perimeter selection reducing set up time at increasing weld time.
• Pulsed MIG welding delivers higher quality-lower heat input for less distribution on thin materials less splatter minimizes post weld grinding and rework allowing more Welding time. Perform welding applications that couldn’t be done in the past.
• Auto-Set Elite offers predefined world settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
• Bernard BTB Gun 300 S MIG Gun  with AccuLock S consumables – AccuLock liner loads from the front and locks at the front and back to ensure proper alignment for flawless wire feed path. New rubber over mold and ball-and-socket handle design improves grip and reduces welder fatigue. New Industrial, Bernard AccuLock S contact tips provide a superior Spray and Pulsed MIG Arc Performance.
• Portability – machine only weighs 99 pounds-Weight is reduced by more than 40% compared to the MillerMatic 350P.
• Easy-Latch running gear-Operators no longer need to use lift trucks to load machine and running gear into the truck. Latches secure machine to running gear, simply loosen the latch retaining knob and rotate latches to disengage machine from running gear for easy portability.
• Program mode allows easy, save and recall of favorite weld settings - Deliver more productivity, consistent quality by welders of all skill levels by using pre-qualified weld settings. Minimizes supervisor need to intervene.
• Input voltage selection switch provides versatility to utilize any single or three-phase North American power (208, 240,460, 575 V). Location in the wire drive compartment provides the ability to manually switch Input voltage. An error will display if wrong input selected.
• Trigger program select – Increases productivity by eliminating the need to go back to the machine to change weld settings simply tap gun trigger to select the program.
• Generator Compatibility – The Millermatic 355 will be able to operate and provide full output when powered by generators with 19,000 W output or higher. Limited output will occur when usually smaller generators..
• Versatility capabilities, include MIG, Pulsed. MIG, and flux core welding.
• 208–575 output voltage.
• Auto-Set Elite Parameters.
• Easy-Latch running gear
• Accessory package included.

Duty Cycle:

• 60% Duty Cycle
• 310 Amps at 29.5 Volts

Input AC Voltage:

• 208 V
• 220 V
• 230 V
• 240V
• 460 V
• 575 V

Phase:

• 1 or 3 phase
