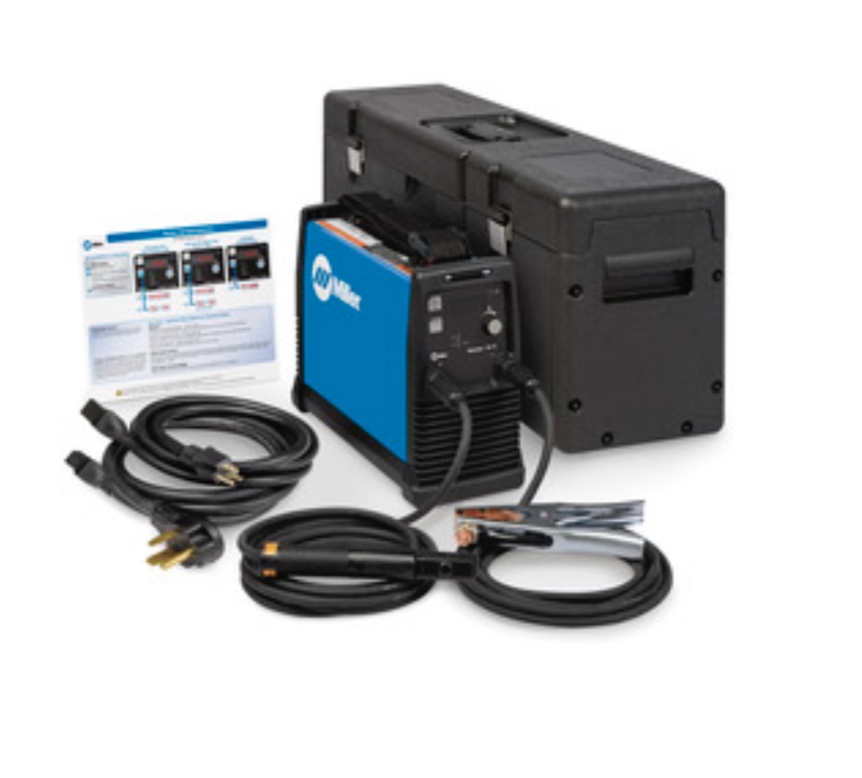

Miller Maxstar 161 S Portable Stick Welder

The Maxstar 161 S weighs 13 lbs and measures 10.3 x 5.6 x 13.5 inches. The adjustable handle doubles as a shoulder strap for carrying to job sites. It is the most compact professional stick welder in its output class and fits in the included Miller X-Case.

Yes. The Maxstar 161 S delivers superior arc performance even on difficult-to-run E6010 cellulose electrodes at both 120V and 240V input. Many small inverter welders struggle with E6010 rods, but Miller's adaptive technology maintains a stable digging arc for pipe and structural work.

At 160A the duty cycle is 20% (2 minutes welding per 10-minute period). At 110A the duty cycle reaches 100% for continuous welding. For most stick welding tasks the effective duty cycle falls between these points depending on the amperage and electrode size selected.

When an electrode freezes to the workpiece, the Maxstar 161 S detects the stuck condition and automatically turns off the welding output. This allows the operator to safely break the electrode free without overheating the machine or damaging the rod. No manual power switch intervention needed.

The welder includes separate 120V and 240V power cords that disconnect from the rear panel without tools. Each cord is 6.5 ft (2m) long. Simply plug in the cord matching your available outlet. No adapter or voltage selector switch is needed to change between 120V and 240V operation.
