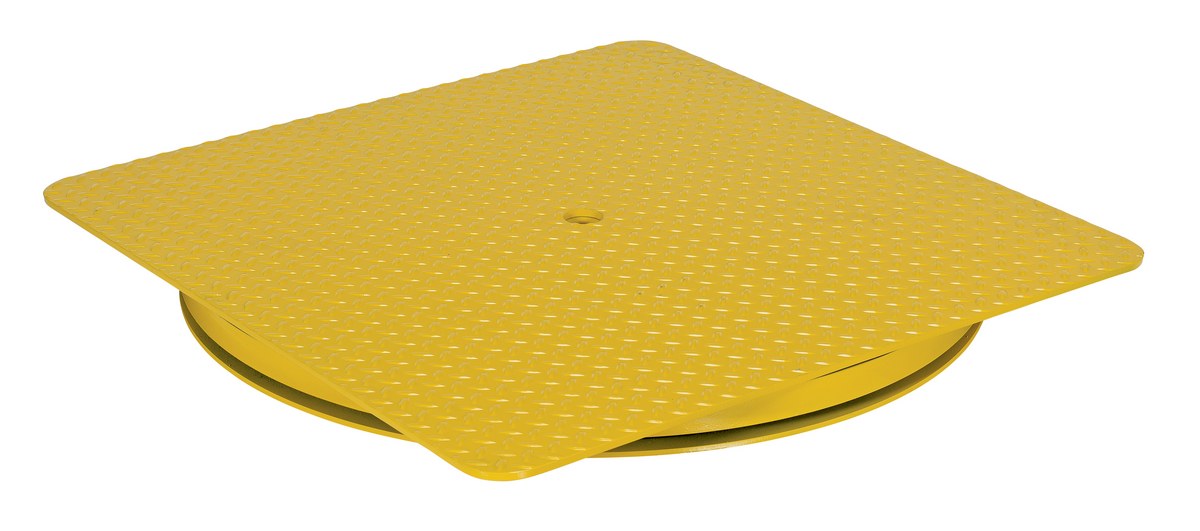

Heavy Duty Square King Pin Carousel 36" x 36" - 4,000 lb Capacity

The carousel has a 4,000 lb uniform capacity across the 36" x 36" top plate. The king pin design allows offset loading up to 50% of capacity on at least 50% of the deck. This means you can place 2,000 lbs on one half without the carousel tipping or binding.

A center kingpin stabilizes the rotating top plate and provides precise rotation control. The maintenance-free bearings allow smooth manual turning of heavy loads. Unlike ring-bearing turntables, the king pin handles offset loads without wobbling or excessive friction in the rotation mechanism.

The top plate uses diamond tread plate with a 1/4" tread height. The raised diamond pattern provides traction to prevent loads from sliding during rotation. The rounded corners on the square plate improve user safety by eliminating sharp edges in the work area around the carousel.

No. The maintenance-free bearings are sealed and pre-lubricated for the life of the unit. No periodic greasing or adjustment is needed. The bearings maintain smooth rotation under the full 4,000 lb capacity without degradation. This reduces downtime and eliminates a maintenance task from your schedule.

The Heavy Duty Square King Pin Carousel 36" x 36" with 4,000 lb capacity is priced at $1,493.85 (MPN CA-KP-3636-4). Ships from Creative Coating Solutions. Contact for current shipping rates as the unit weighs 269 lbs in a single package.
