Gas Paint Booth Heater / Air Makeup Unit (1-Phase)

The RS-1001 Gas Paint Booth Heater / Air Makeup Unit is a professional-grade direct-fired heating system designed for paint spray booth applications. Operating on either natural gas or propane, the unit delivers up to 1.2 million BTUH and 13,000 CFM of airflow to help maintain consistent booth temperatures and improve finishing performance.

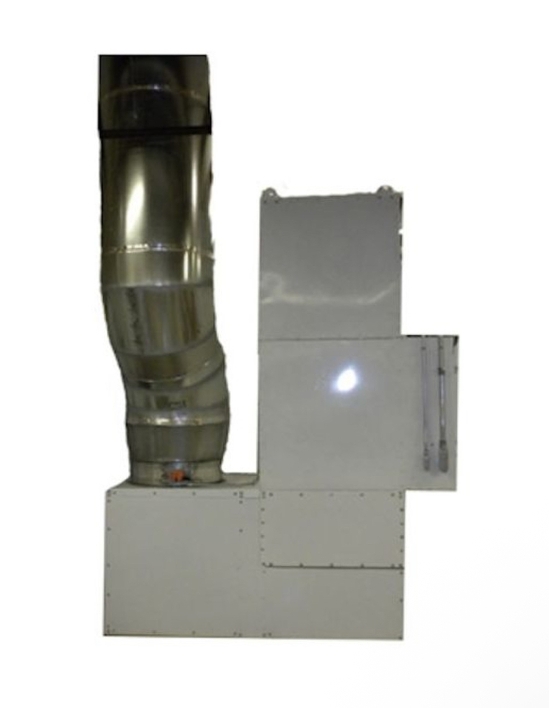

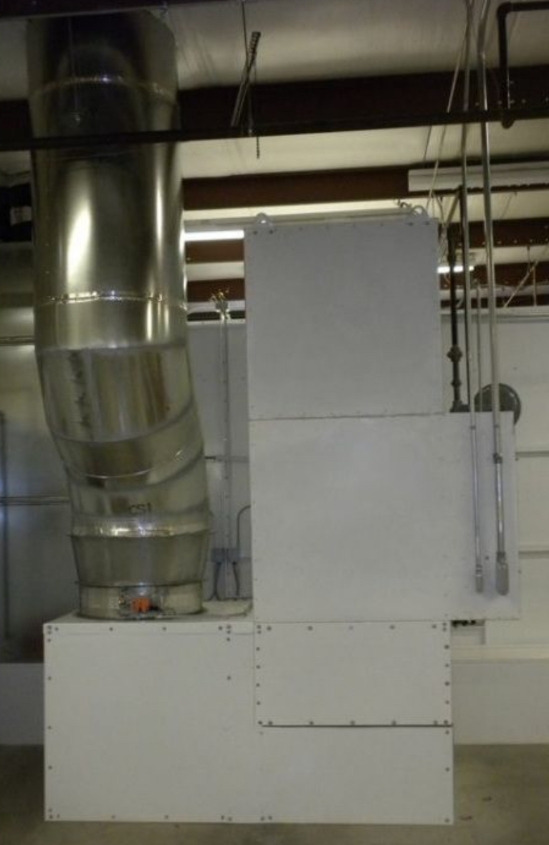

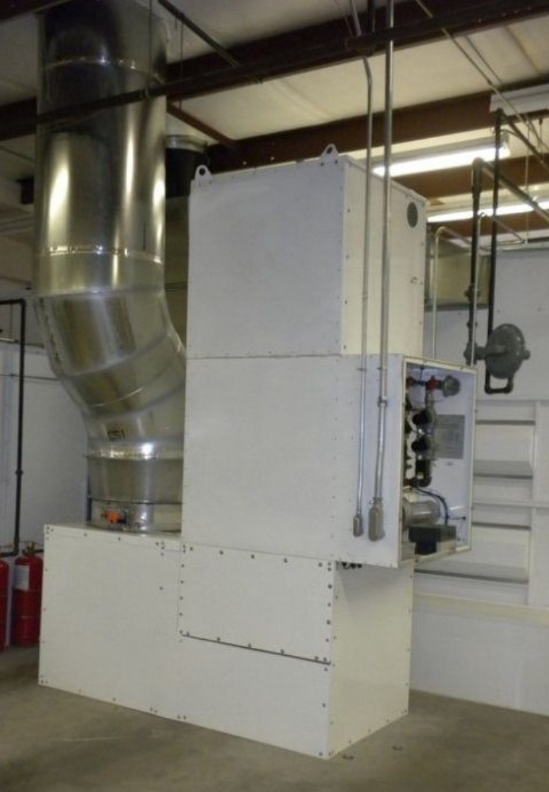

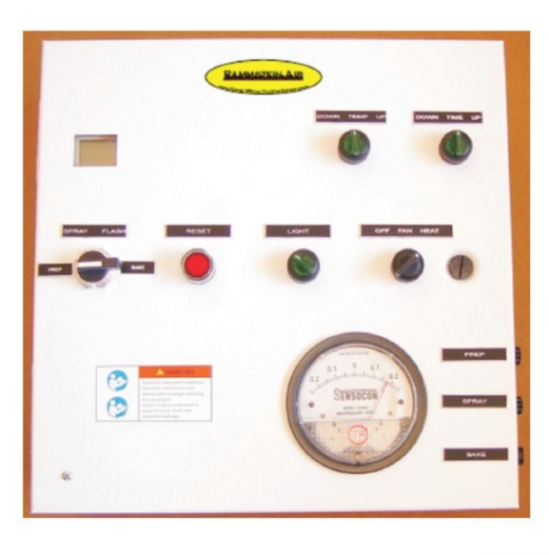

The RS-1001 can be configured for either vertical or side discharge installation and features a Rammstein Air ETL-listed deluxe control panel with Variflow™ technology for adjustable airflow control. The control panel includes an hour meter, status messaging, cycle-time display, and elapsed-time monitoring for simplified operation and diagnostics.

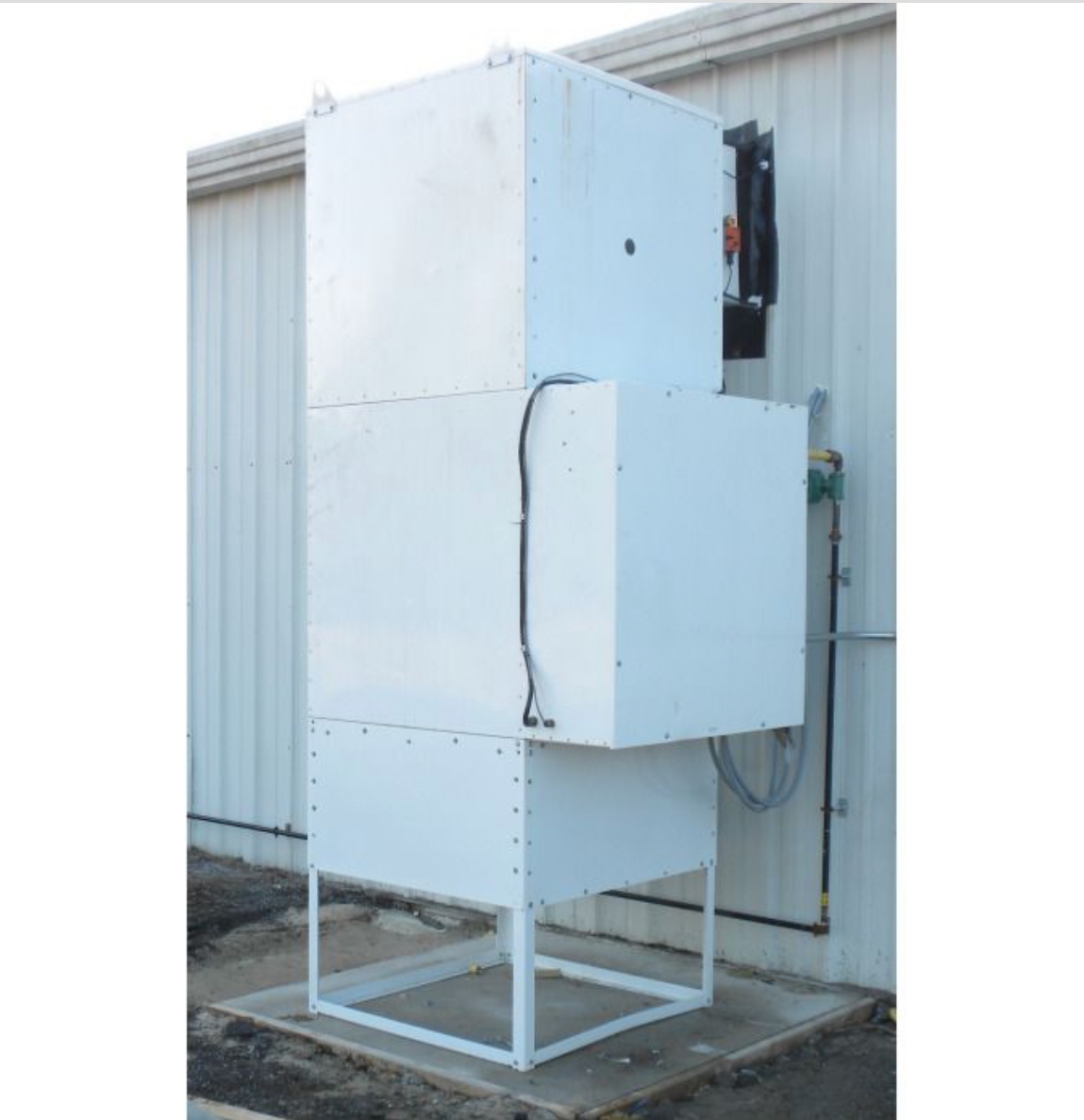

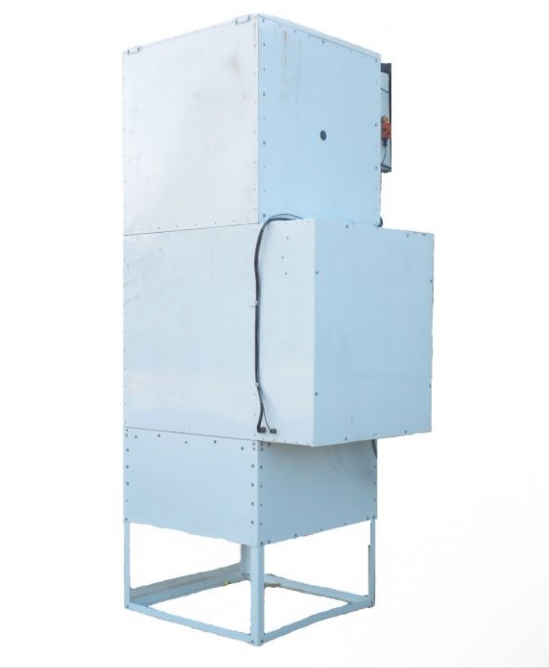

A vertical stand, filter box, and filters are included as standard equipment. The unit also features a fused and wired exhaust VFD, interlock status indicator lights, single-point electrical connection, and a durable white powder-coated finish for long-term performance.

Specifications:

• Fuel Type: Natural Gas or Propane
• Maximum Output: 1.2M BTUH
• Airflow: 13,000 CFM
• Gas Train: 1-1/2"
• Intake Motor: 10 HP, 230V, 3-Phase
• Exhaust VFD: 5 HP, 230V, 3-Phase
• Maximum Temperature Rise: 100°F
• Maximum Discharge Temperature: 160°F
• Minimum Operating Temperature: 10°F
• Shipping Weight: 1,395 lbs
• Shipping Dimensions: 90" L x 65" W x 54" H

Included Features:

• ETL-Listed Deluxe Control Panel
• Variflow™ Technology
• Hour Meter and Status Display
• Cycle Time and Elapsed Time Monitoring
• Exhaust VFD Fused and Wired
• Vertical or Side Discharge Configuration
• Durable White Powder-Coated Finish
• Vertical Stand Included
• Filter Box and Filters Included
• Interlock Status Indicator Lights
• 30' Umbilical Cord
• Single-Point Connection
• Optional 1-Phase Electrical Available
• Compatible Paint Spray Booth Models
• PSB-SDD26B-1PH*
• PSB-SDD26B-3PH*
• PSB-SEMIDD26B-1PH
• PSB-SEMIDD26B-3PH

* Side Down Draft models require two exhaust duct kits.

Important Installation Requirement

A Plenum / Canopy Kit is required when using this unit with Side Down Draft and Semi-Down Draft paint spray booths.
