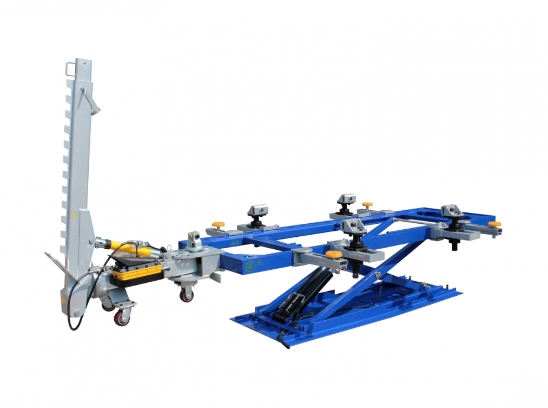

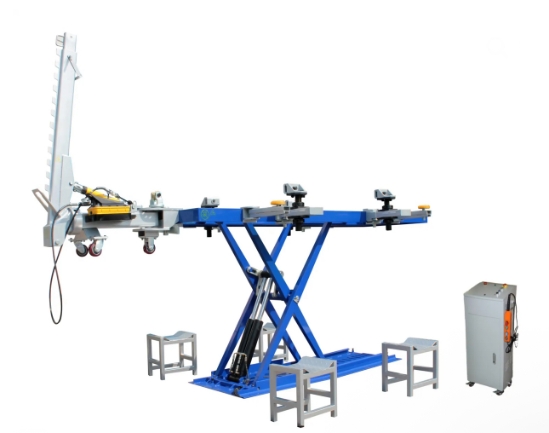

FR-55 Scissor Lift Frame Rack Machine

The FR-55 lifts up to 5,500 lbs. The scissor mechanism raises the deck from 4.75 inches to 63 inches, bringing the vehicle to a comfortable working height for frame and structural repairs. The air/hydraulic pump controls raising and lowering from a simple console.

The pulling tower delivers 10 tons of pulling force at 10,000 PSI hydraulic pressure. The tower includes a down roller for multi-directional pulls. A 10-foot pulling chain with hook is included for attaching to the vehicle frame or unibody structure.

The FR-55 operates on 220VAC single-phase power at 20 amps. This is a standard outlet configuration in most auto body and collision repair shops. Required air pressure for the hydraulic pump is 100 to 120 PSI from your shop compressor.

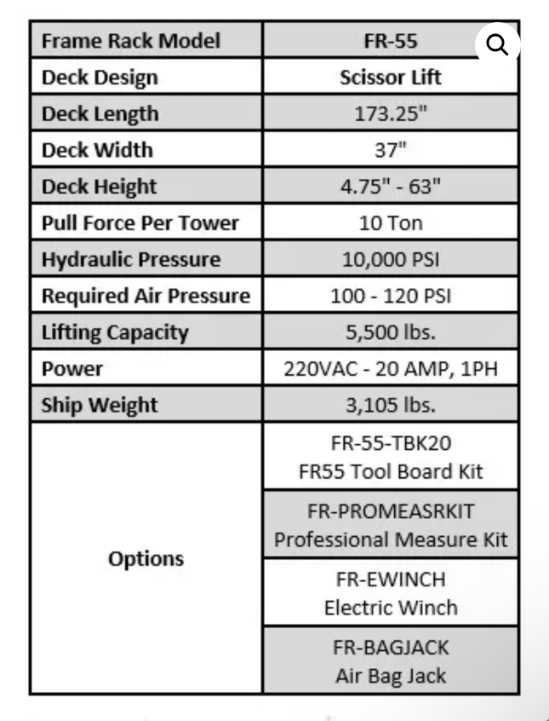

The deck measures 173.25 inches long (about 14.4 feet) by 37 inches wide. Deck height ranges from 4.75 inches (lowered for drive-on) to 63 inches (full working height). The compact width fits in standard shop bays.

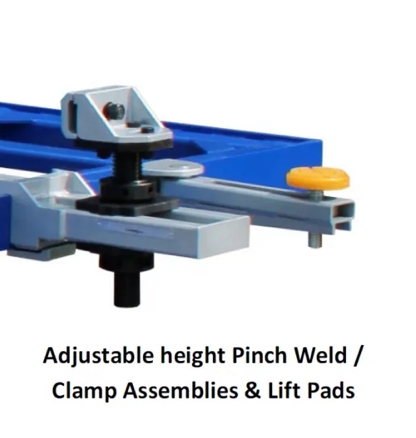

Yes. Universal wheel stands and a universal anchoring system with adjustable height pinch weld assemblies are included. These components allow you to secure full-frame and unibody vehicles for pulling and straightening without additional accessory purchases.
