Electric Paint Booth Heating System 208V 3-Phase

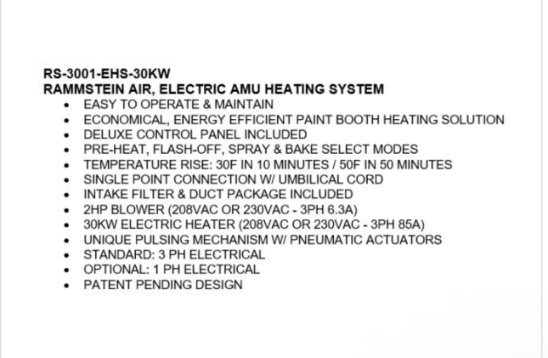

The RS-3001 runs on 208VAC 3-phase with an optional 230V configuration. The 30KW heating element draws 85A at 208V. The 2HP blower motor draws 6.3A at 208V 3-phase. A single point connection with umbilical cord simplifies the electrical installation.

The system raises booth temperature 30F in 10 minutes and 50F in approximately 50 minutes. This increase reaches the flash-off temperature for waterborne finishes and sufficient bake temperature for finish coats. Four selectable modes control the heating cycle automatically.

A typical 30KW electric paint booth heater cycle costs an average of $2.00 using $0.12 per KWH electricity rates. This is significantly less than a comparable gas fired paint booth heater while still providing the 45-50F temperature increase needed for waterborne drying and baking.

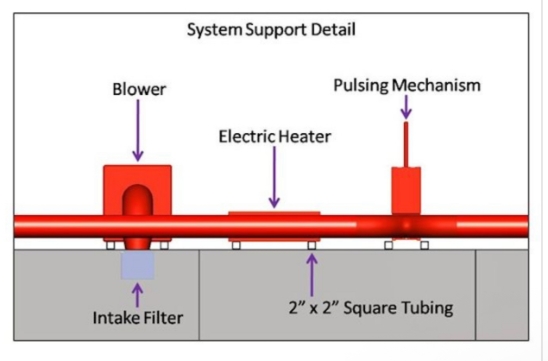

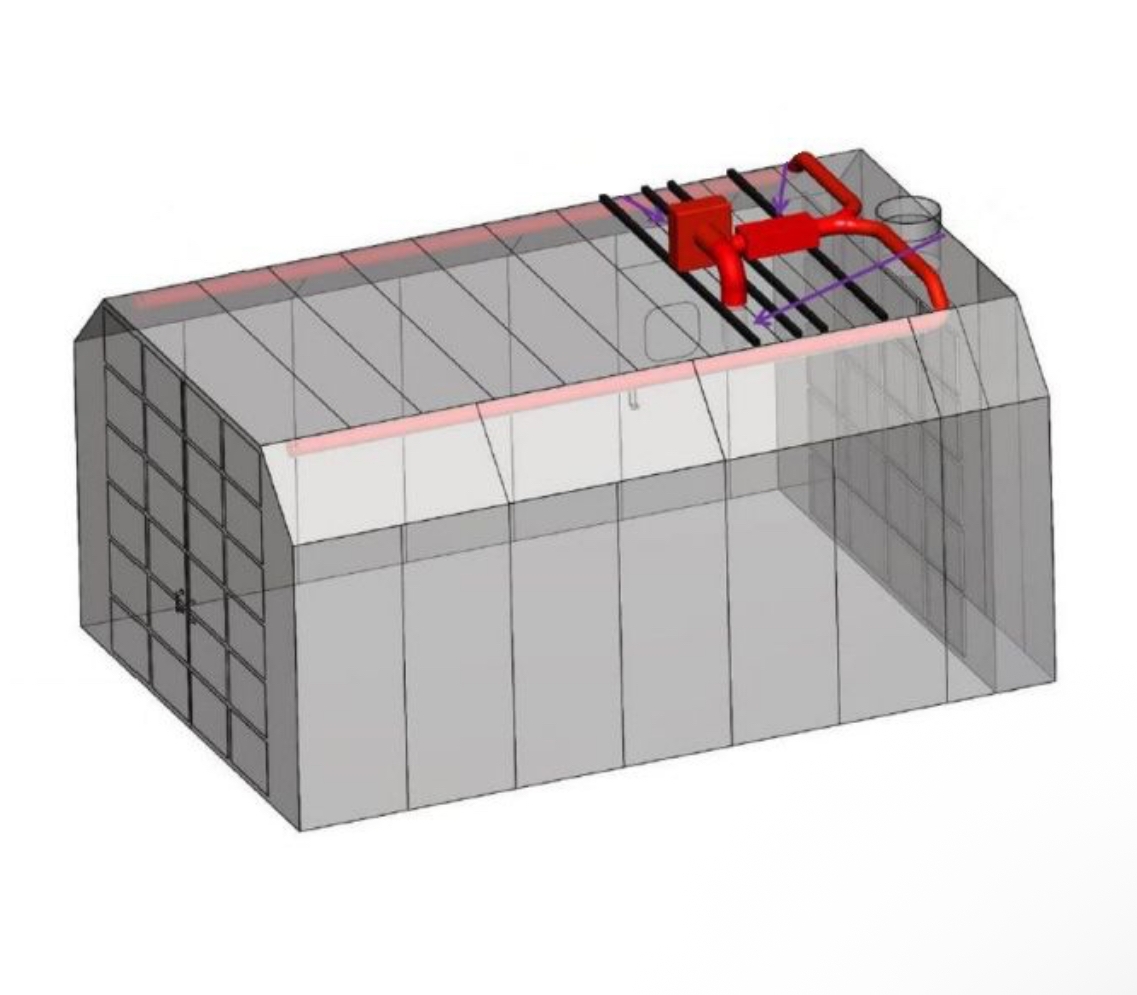

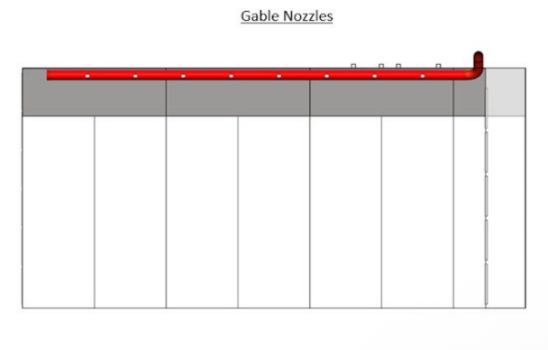

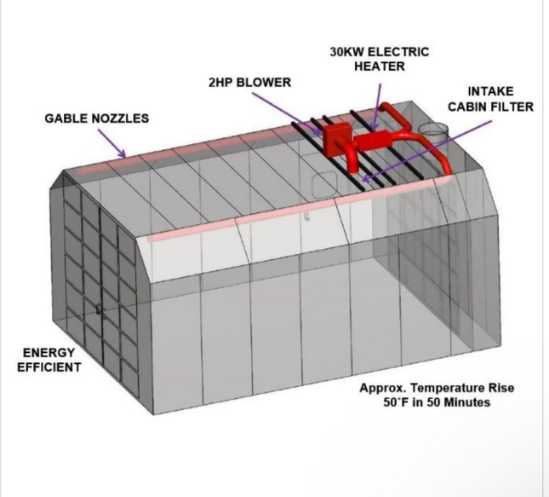

The RS-3001 is designed for iDEAL Side Down Draft, Semi Down Draft, and Cross Flow paint spray booths. It pulls air from the booth through the blower and heater, then delivers heated air back into the booth via gable-mounted air nozzles for even heat distribution.

The Electric Paint Booth Heating System RS-3001, 208V 3-Phase is priced at $14,230.00. This is a special order item with a delay in shipping. Ships from Creative Coating Solutions with control panel, intake filter, duct package, and umbilical cord included.
