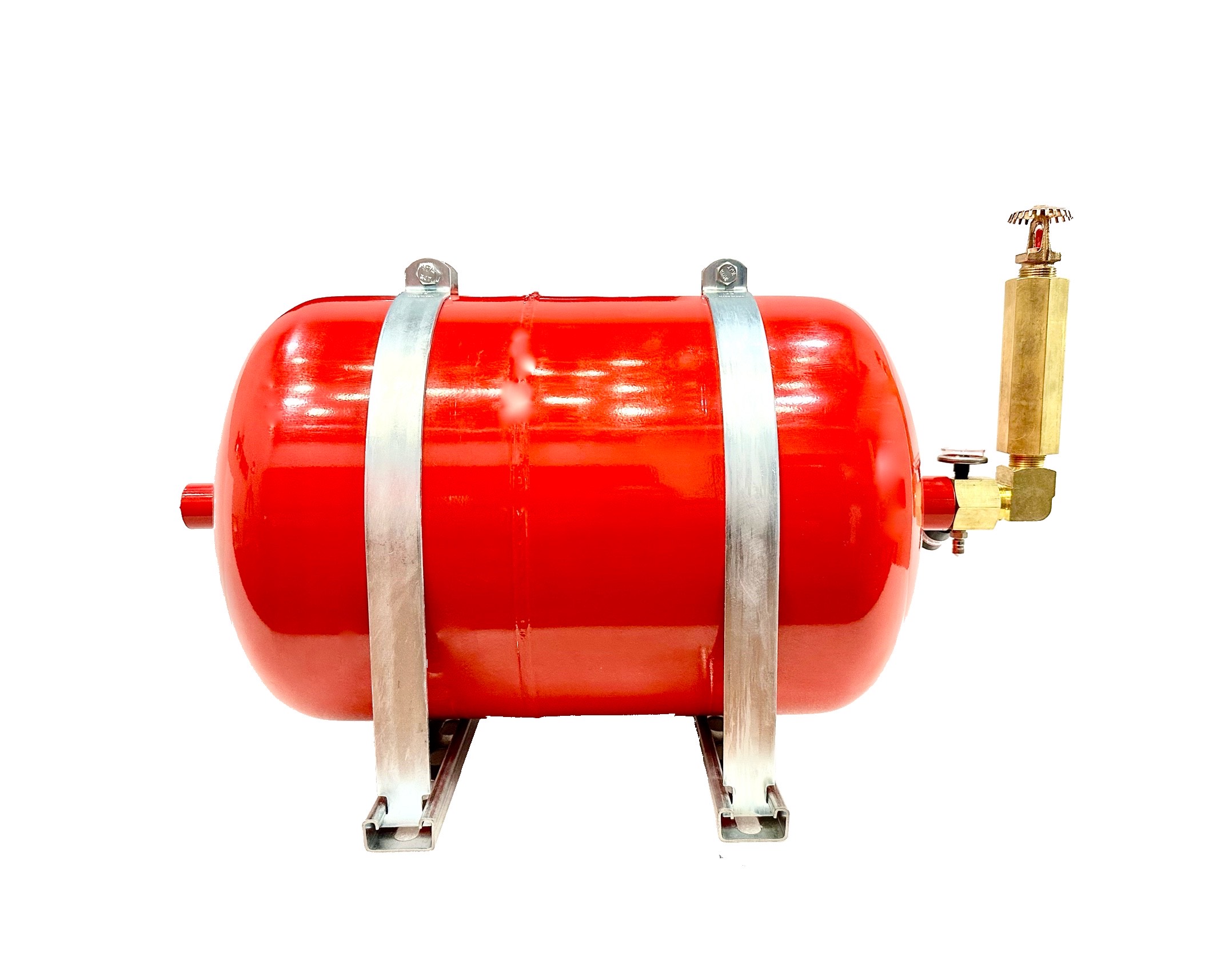

CFP 3375LP Low Profile Fire Suppression Bottle - 3375 Cu Ft Coverage

The CFP 3375LP Low Profile Fire Suppression Bottle is designed for applications that require large-volume fire protection in spaces with height restrictions. Built on the same platform as the CFP 3375, this model features a low-profile horizontal mounting configuration while protecting enclosed spaces up to 15' x 15' x 15' (3,375 ft³).

The system is ideal for modular structures, portable shelters, storage rooms, quiet rooms, and other enclosed environments where overhead clearance is limited. It uses CF-33 dry chemical agent, which is non-corrosive, non-conductive, and non-toxic, making it suitable for a wide variety of equipment and facility applications.

The unit self-activates through a sprinkler head rated at 155°F (68.3°C) and discharges its contents throughout the protected area in less than 10 seconds. When equipped with an optional pressure switch, the system can activate alarms or other connected accessories upon discharge.

Features:

• Low-profile horizontal installation
• Protects spaces up to 3,375 ft³
• Ideal for height-restricted applications
• CF-33 dry chemical agent
• Non-corrosive, non-conductive, and non-toxic
• Automatic activation at 155°F (68.3°C)
• Full discharge in less than 10 seconds
• Optional pressure switch available
• High-purity compressed dry nitrogen propellant

Specifications:

• Maximum Flood Volume: 15' x 15' x 15' = 3,375 ft³ (95.44 m³)
• Reach Coverage Area: 15' x 15' = 225 ft² (20.88 m²)
• Temperature Rating: -20°F to 120°F (-29°C to 49°C)
• Cylinder: Manchester 30# / Worthington 69#
• Diameter: 12.25" (31 cm)
• Height: 19.56" + 3.50" Coupling Assembly
• Capacity: 50 lbs
• Unit Weight: 87 lbs
• Shipping Weight: 90 lbs
• Propellant: High-Purity Compressed Dry Nitrogen
• Standard System Activation: 155°F (68.3°C)

Approvals:

• UL Listed
• ULC Approved
• CSFM Approved
• NYC Approval #5754

Shipping: Standard lead time 4-5 weeks (custom-built per order). Rush: 2-3 weeks. Expedited Rush: 1 week or sooner. Contact us for rush pricing.
