CFP 1100 LP Fire Suppression System with Pressure Switch

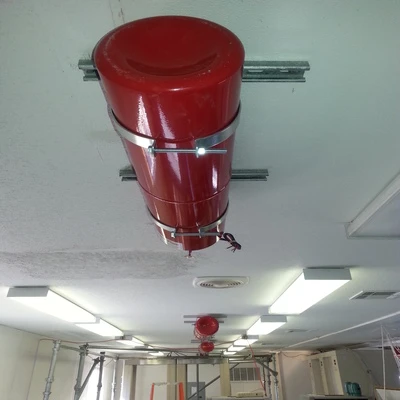

The first of the low profile units. Designed to be installed horizontally, and to protect any space that is 11.5' x 11.5' x 13' or smaller. Wirth its larger coverage and low profile design the CFP 1100 LP is a great solution for any application with a height or space restriction. Portable spaces, Conex box spaces, storage areas, conference  rooms, grow rooms, lithium-ion battery applications and more. Any application where there is an install challenge due to lack of vertical space the CFP 1100 LP is used. Our CF-33 dry chemical agent is non-corrosive, non-conductive and non-toxic, making it a safe option for nearly every application

The Cease Fire Unit is self-activating. Each unit is designed to initiate automatically by means of a sprinkler head rated at 200°F or ( 68°C). The temperature rating for each sprinkler head is stamped on the start shaped deflector in both Fahrenheit and Celsius measurements. The temperature of the sprinkler head is fixed and must be designed at the time of purchase. When the temperature rise to activate the Cease Fire unit, the sprinkler head opens automatically and dispenses the entire contents in less than 10 seconds onto the fire throughout the enclosure being protected. If the unit is equipped with the optional pressure switch, the signal is sent at the time of discharge to activate accessory equipment such as an alarm.

Units are UL Listed

Unit is installed by the buyer or contractor when unit arrives

This Model will be used on booth sizes:

• 8' x 8' x 12'
• 8' x 8' x 15'
• 10' x 10' x 13'

Install option preview and drawings:

https://ceasefire-embedded.par...

Email for spec sheet and manual :

• CF-33 SDS
• CFP 1100 LP Spec Sheet
• CFP 1100 LP Owners Manual
