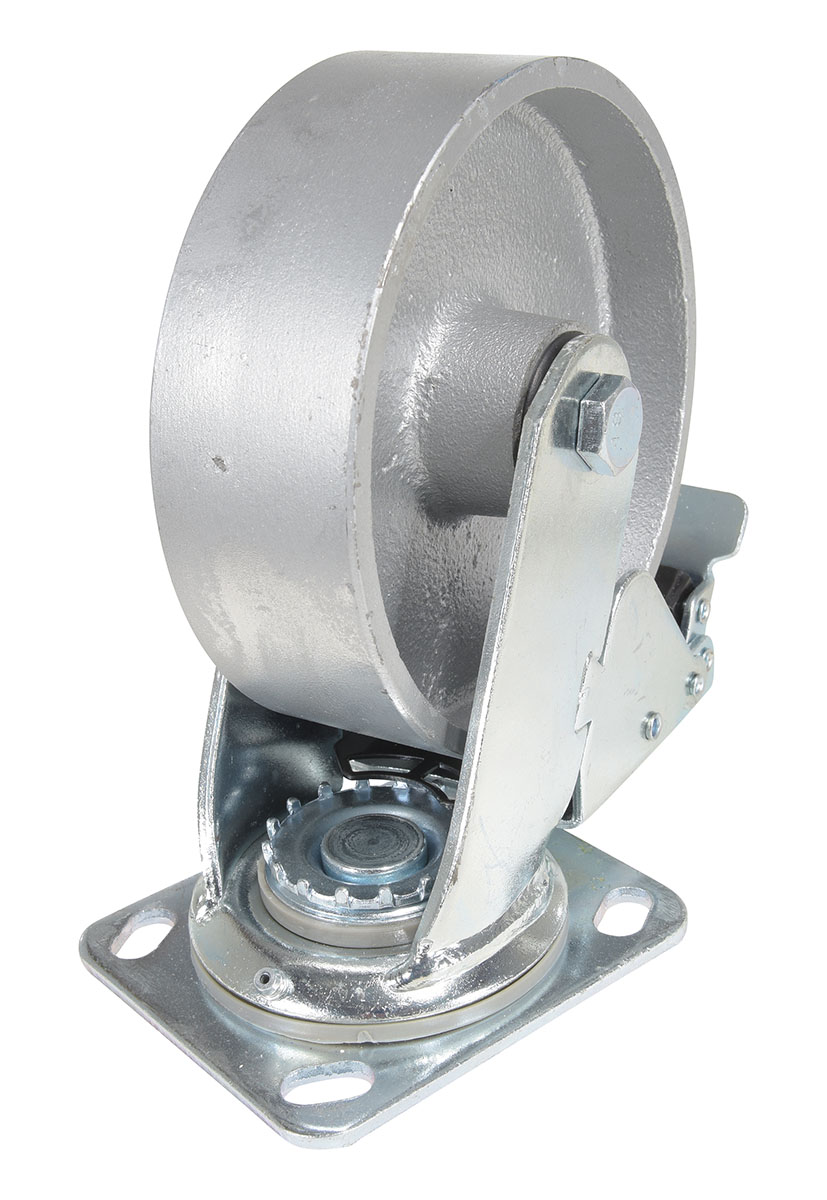

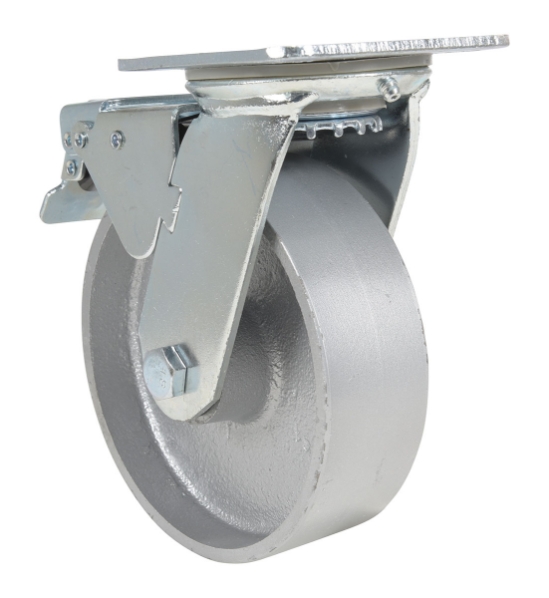

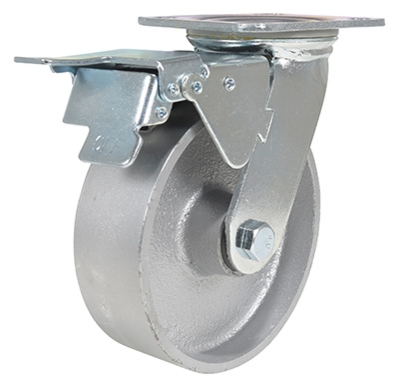

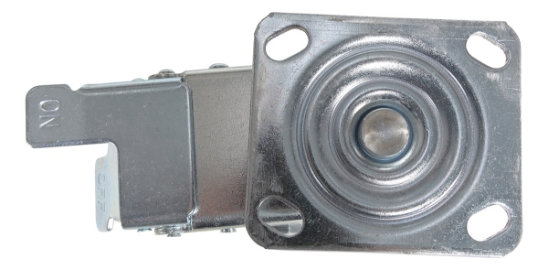

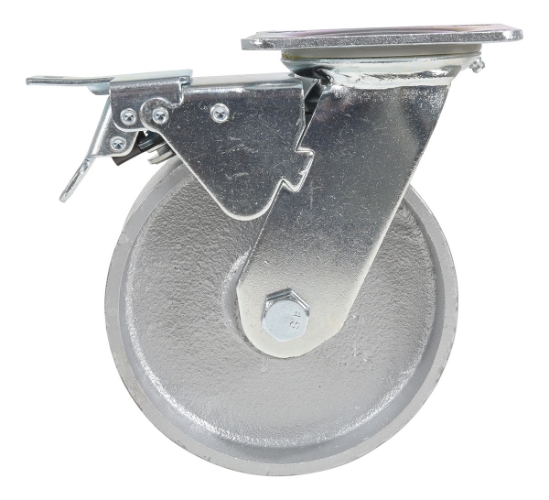

Cast Iron Swivel Caster with Total Brake 6" x 2" - 1,540 lb

Total brake locks both the wheel rotation and the swivel rotation at the same time with a single foot pedal. This prevents the caster from rolling or turning when engaged. Standard wheel brakes only stop the wheel from rolling but allow the swivel to rotate, which can let equipment drift.

This caster supports up to 1,540 lbs per wheel. The total brake holds the full rated load in a locked position on flat surfaces. The brake is designed for stationary locking during loading, unloading, or work operations, not for stopping equipment that is already in motion.

Use total brake casters on equipment that must stay locked in position during use, such as work tables, assembly fixtures, welding carts, and loading stations. The total brake prevents both rolling and swiveling, so the equipment stays exactly where you positioned it until the brake is released.

Yes. The 6" brake caster has the same wheel height and compatible load rating with both the 6" rigid (1,543 lb) and 6" swivel (1,543 lb) casters. A common setup uses two rigid casters on one end and two brake-swivel casters on the steering end for both maneuverability and locking.

The Cast Iron Swivel with Total Brake Caster 6" x 2" at 1,540 lb capacity is priced at $35.69 (SKU CST-VE-6X2CI-SWTB). Ships in stock from Creative Coating Solutions. Includes total brake mechanism, steel roller bearings, and zinc plated double-welded fork.
