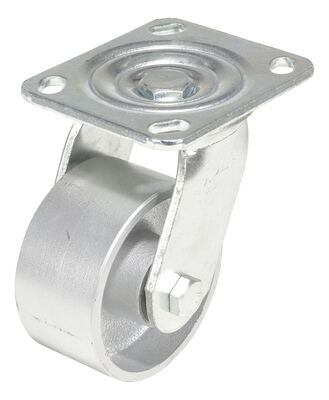

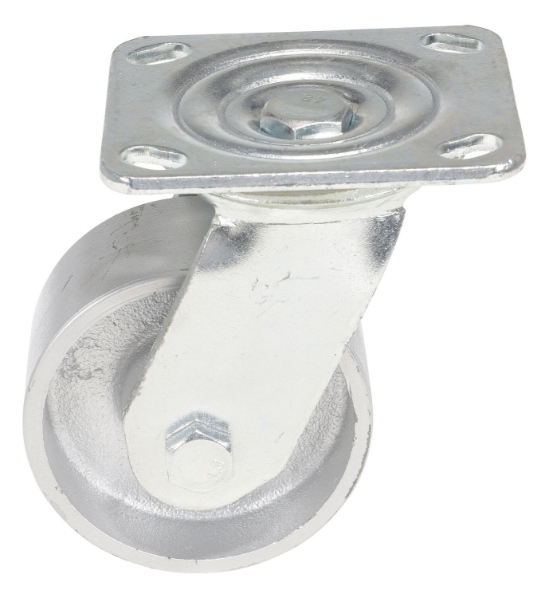

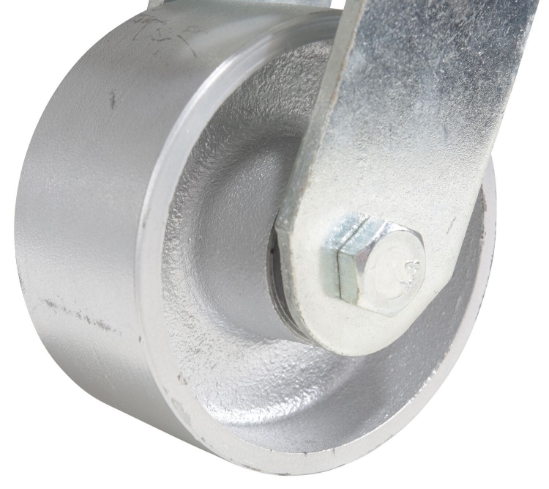

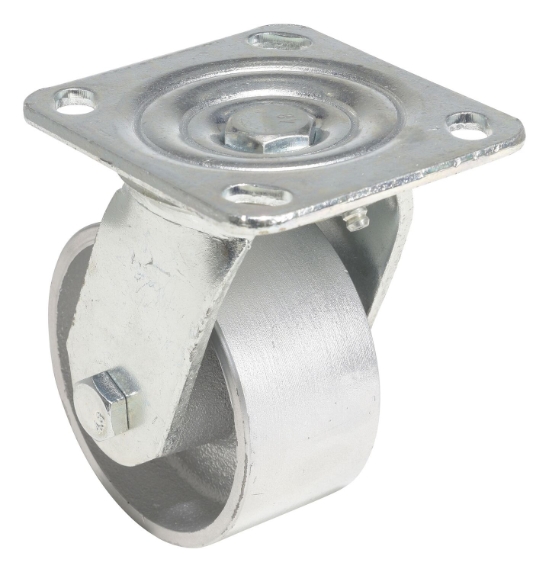

4" diameter x 2" width cast iron swivel caster rated at 1,102 lbs. 360-degree swivel for steering and direction changes. Steel roller bearings, zinc plated double-welded fork, dust cover seals.
The swivel caster rotates 360 degrees on its mounting plate, allowing the wheel to turn in any direction for steering and maneuvering. The rigid version rolls in a fixed straight line only. Use swivel casters on the steering end of carts and rigid casters on the fixed end for directional control.
This swivel caster is rated at 1,102 lbs per wheel, the same capacity as the rigid version in the same size. The swivel mechanism uses a hardened bearing raceway that maintains smooth rotation under full load. The zinc plated fork and double welds match the rigid model construction.
Yes. Pairing two swivel casters on one end with two rigid casters on the other is the standard industrial cart configuration. Both the 4" swivel and 4" rigid have the same wheel height and 1,102 lb capacity. This ensures the cart sits level and each caster carries equal load.
Yes. Both the swivel and rigid versions use the same double-weld construction on the inside and outside of the fork mounts. The zinc plated finish is also identical. The only structural difference is the addition of the swivel raceway assembly on top of the fork in the swivel model.
The Cast Iron/Steel Swivel Caster 4" x 2" with 1,102 lb capacity is priced at $17.62 (SKU CST-VE-4X2CI-S). It ships in stock from Creative Coating Solutions. Steel roller bearings, zinc plated double-welded fork, and dust cover seals included.
