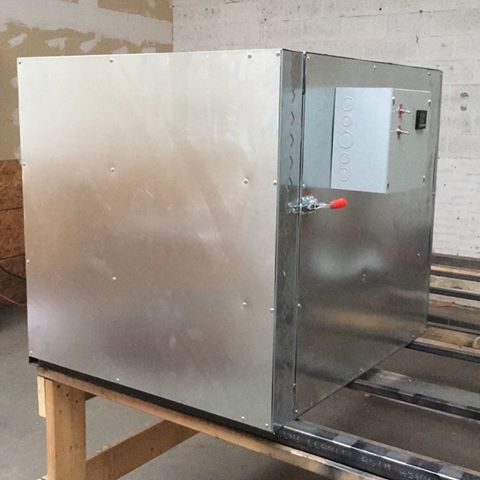

3' x 3' x 3' Electric Firearm Coating Oven - Cerakote & Powder Coat Compatible

This oven is designed to cure Cerakote, Duracoat, Armory Coat, and similar firearm-grade coatings, as well as small-batch powder coat applications. It reaches and holds temperatures up to 500°F, which covers the cure requirements for the vast majority of professional firearm and small-part coating processes.

The oven operates on a single-phase 240V circuit with a 13-amp draw. It uses a 4-wire hookup consisting of two hot legs, a neutral, and a ground. This makes it compatible with standard residential or light commercial 240V service without requiring 3-phase power or special industrial electrical infrastructure.

The oven is insulated with 6-pound density mineral wool insulation rated to 2100°F, far exceeding the 500°F operating temperature. The high-rated insulation minimizes heat loss, reduces energy consumption during long cure cycles, and ensures the oven holds a stable temperature throughout the coating cure process.

The oven frame is built from welded square tube steel with a stud framework. The interior and exterior walls use G90 galvanized sheeting for corrosion resistance. The floor is 12-gauge steel, the door uses a fiberglass tadpole gasket seal, and the temperature controller displays both actual and set temperatures with a simple user interface.

Creative Coating Solutions offers the 3' x 3' x 3' oven as well as a 3' x 3' x 5' model and a 3' x 3' x 6' model for larger batch needs. Custom-built sizes are also available by contacting the team directly. All models share the same G90 galvanized construction and mineral wool insulation standard.

This oven is specifically promoted as a Cerakote and firearm coating oven. Cerakote and similar ceramic-polymer coatings cure at 250°F to 300°F, well within the oven's 500°F capability. It is also compatible with standard powder coat curing requirements, making it a versatile option for mixed-use coating shops.

The 3' x 3' x 3' electric firearm coating oven is listed at $3,068.00. Pricing is subject to temporary increases due to steel and component costs. Creative Coating Solutions recommends contacting them directly for the most current pricing and to request a custom quote for larger or custom-sized oven configurations.
