Lincoln Magnum PRO 100SG Spool Gun - 130 Amp - 10' Cable

The Lincoln Magnum PRO 100SG Spool Gun - 130 Amp - 10' Cable is an aluminum MIG welding spool gun. Mounting the wire spool directly at the gun eliminates bird-nesting and feed jams common with push-only systems, delivering consistent arc performance on 4xxx and 5xxx aluminum alloys.

For all aluminum alloys: recommended wire diameters can be fed with the same drive roll and liner assembly. The short wire path from spool to contact tip minimizes feed friction, preventing soft aluminum wire from kinking and resulting in more stable arc performance than push-only drive systems.

10 foot (3.0 m) Gun-cable Gun-connector offeres fast connection to the welding machine. Route the cable with minimal sharp bends to preserve smooth wire feed performance and maintain rated amperage at the contact tip during production aluminum welding. Contact Creative Coating Solutions for availability and expert product support.

Compatible power sources include: Power Mig 180 Dual, Power Mig 140C, Power Mig 180C, Power Mig 216. Verify the spool gun output port connector type and amperage rating match your machine. Compatible platforms automatically detect the spool gun and scale wire feed speed accordingly.

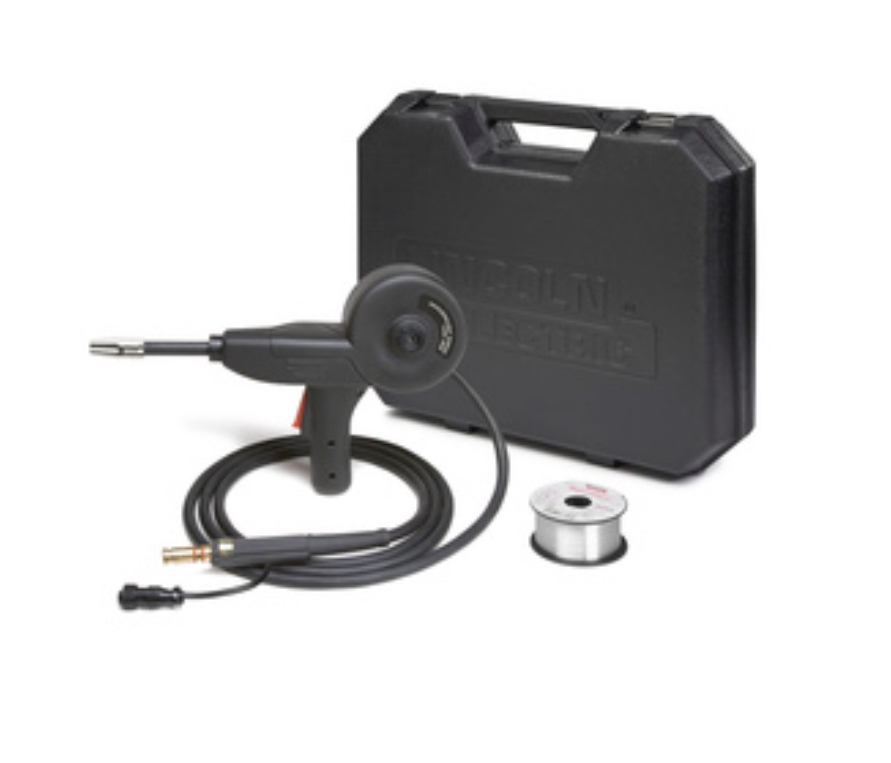

Included in the box: Spool Gun With 10 foot (3.0 m) cable Spool of 0.035 inch (.9 mm) 4043 aluminum alloy wire, ED30308 0.030 - 0.035 in. (0.8-0.9mm) Drive Roll Contact tips (qty 3), KP2744-035T Sturdy Carrying Case. Everything needed to connect and begin aluminum MIG welding is provided. No additional purchases are needed before first use on a compatible power source.
